HD DVB-T2 Terrestrial Digital TV Receiver Support DVB-T DVB-T2 With HDMI USB PV

Features:
MLStandard DVB-T2/ High Definition MPEG4 AVC/H.264HP@L4,MPEG-2MP@HL
Automatic PAL/NTSC conversion
2000 channels TV and Radio programmable
The maximum speed of the traffic flow of at least 50 Mbit / sec
8 different favorite groups selection
Fully support to 7 days Electronic Program Guide(EPG)
JPEG BMP GIF support,Flesh tone extension,Black/White extension
4/8/16-bit OSD with anti-flickering
Channel search in automatic, manual and network search
Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Parental control for channels
Plug and Play installation, with an ease to use Menu System
Software upgrades through USB/Cardreader
Time set by GMT offset automatic and manual,Summer Time support
5 event timers,off/Once/Daily/Weekly/Monthly Mode
Subtitle support
VBI insertion for Teletext,CC and WSS
Automatic save for last channel
Support Logic Channel Number(LCN)
Active Antenna Power supply control
System Resources:
CPU/MPU/Mainchip: MSD7816 (MIPS 34K600MHz)
Flash memory: 32Mbit
DDR-2 SDRAM: 512Mbit
Demultiplexer:
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 120Mbps
Tuner:
Max linear high sensit ive and reliable silicon tuner: MXL201
Input Frequency Range: VHF: 174~230MHz, UHF: 470~862MHz
IF Bandwidth: 6,7 or 8MHz
Input Signal Level: -85dBm ~ -20dBm
RF Input Connector: D-type connector(RF IN)
Input impedance: 75
De-modulator:
Modulat ion mode : OFDM (Orthogonal Frequency Division Mult iplexing)
Demodulation :256QAM, 64QAM, 16QAM and QPSK
Guard interval : 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
FEC Code rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Connector:
RF Input: 1 x IEC169-2, Female
RF Output: 1 x IEC169-2, Male
Digital Output: 1 x HDMI
Analog Output: 1 x Scart
Digital Audio Output: 1 x Coaxial
USB: 1 x USB2.0 for upgrading, multi-media play, PVR and timeshifting
Environmental Conditions:
Input Voltage: AC200 ~ 240V
Power Consumption: Max. 5W
Stand-by Power Consumption: <0.5W
Operat ing temperature: 0 ~ 45C

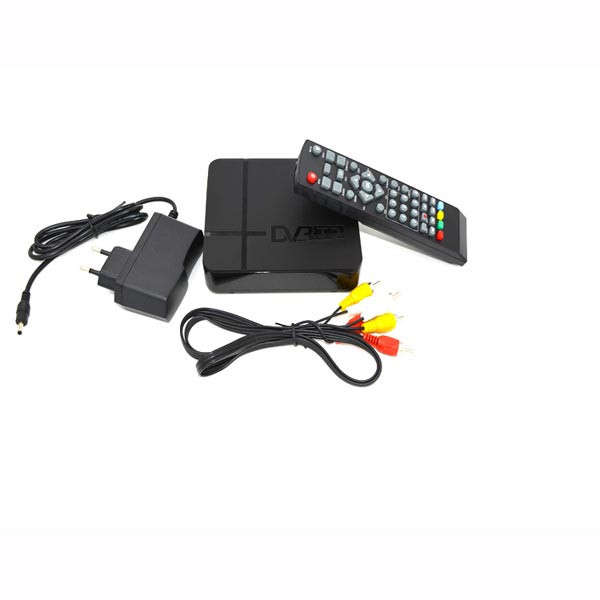

Package Included:
1 x DVB-T DVB-T2 HDMI TV Receiver
1 x Remote Control
1 x AV Cable
1 x Power Adapter
1 x Plug Adapter (depending on your country)
1 x Instruction

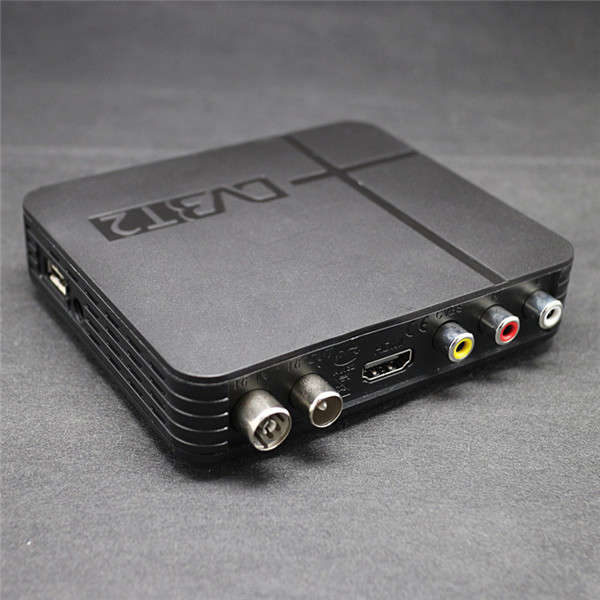

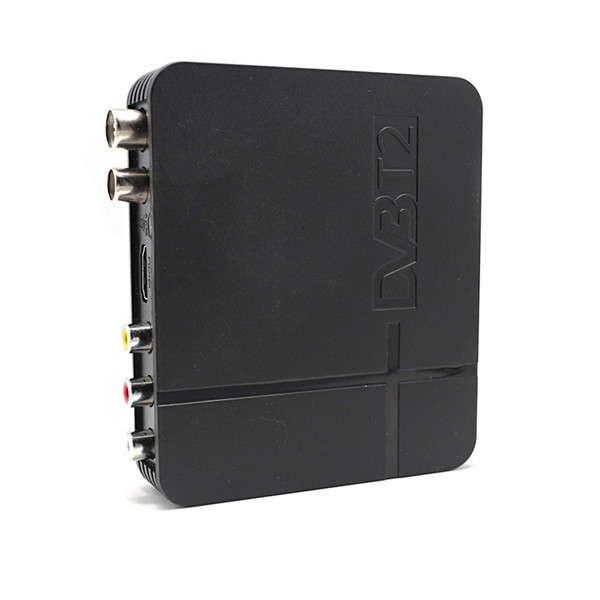

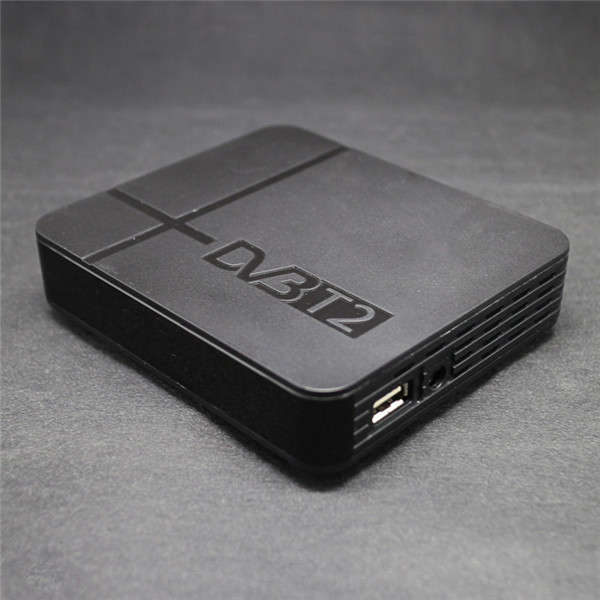

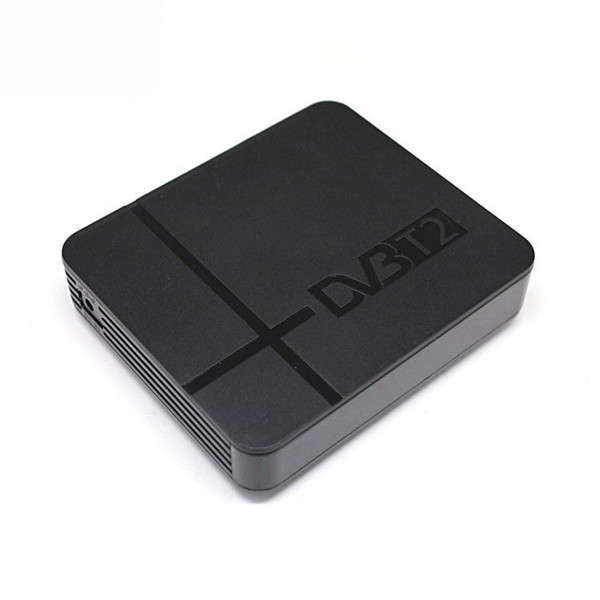

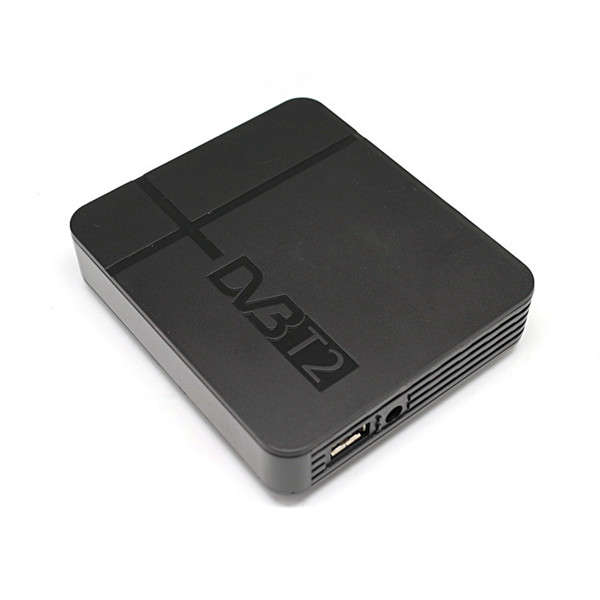

Detail Pictures:
