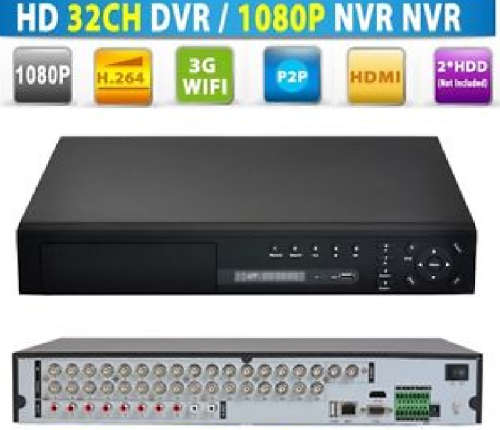

HD-DVR 32 Channel Hybrid Digital Video Recorder

H.264, 32 CH Video, 8 CH Audio, Network, Real-time D1 Recording, Support 2T SATA HDD, VGA, Mouse, Support 3G Mobile, Multi-Task, support 20
languages, Email Alarm, FTP upload, Remot e Controller, Mobile surveillance on all popular mobile platforms (iPhone, Blackberry, Android, Windows Mobile, Symbian) 1CH

Features

• H.264 Video Compression Technology
• Highly improves video quality for live, recording,and network
• Graphics & Windows OSD interface
• Recording file size is minimized for longest recording time
• Lower bit rate required for fastest network transfer
• Allows live display, record, playback, backup, control and network operation at the same time
• Support USB flash drive, USB mobile hard disk, DVD-RW and Network backup
• Support SATA HDD (maximal value of each disk is up to 2TB)
• Support IR remote control and mouse control

• Main processor	Industry level embedded microprocessor
  Operation system	Embedded LINUX operation system
  System resource	synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation
  Operation interface	16 bit true color graphical menu interface, mouse operation supportive
  display	1/32 image display
  Video standard	Pal (625string, 50 field/s)
  Surveillance image quality	PAL, D1 (704x576)
  Playback image qualiey	PAL,D1(704x576)/ HD1(704x288)/ CIF (352x288)/ QCIF(176x144)
  Image compression	H.264mp
  Image control	6 types for options
  Recording speed (CIF)	PAL,100fps overall
  Image motion detect	396(22x18) detection areas, multiple sensitivity
  Audio compression	G711A
  Talk-back	NO
  Recording mode	manual, alarm, motion detect, timing
  Local playback	1 channel playback, multi-channels playback at the same time (basic model no such function)
  Recording look-up mode	Time searching, calendar searching, affair searching, channel searching, information searching
  Hard disk capability for each channel	Audio: 28.8Mbytes/hour Video:25~450Mbytes/hour
  Recording storage	Hard disk, network
  Backup mode	Network, USB device
  Video input	32 channel BNC
  Video output	1 channel BNC, 1channel VGA output (with VGA interface standard)
  Circulation output	non
  Matrix output	non
  Audio input	1channel RCA
  Audio output	8channel RCA
  Alarm output	1channel
  Network port	RJ45 10M/100M adoptive Ethernet network port
  PTZ control port	1 RS485
  USB port	2 USB ports (synchronous use front and rear panel forbidden)
  Hard disk port	1 SATA port
  Power supply	DC 12V external power supply
  Power consume (without hard disk)	<10W
  Working temperature	0 deg.C ~ +55 deg.C
  Working humidity	10%-90%
  Air pressure	86kpa-106kpa
  Size	Please refer to the real object
  Weight	Please refer to the real object
  Installation	Frame installation, platform installation
