Product Description
Note:The 2pcs is 1pair(in a package)
Compatible with all HD-CVI, HD-TVI, HD-AHD.
Up to 450m for 720P CVI Cameras.
Up to 250m for 1080P CVI Cameras.
Up to 250m for 720P/1080P TVI Cameras.
Up to 320m for 720P AHD Cameras.
NTSC, PAL, and SECAM video formats.
No power required.
60dB cross talk and noise immunity.
Compact size and easy installation.
Built-in transient suppression protection.

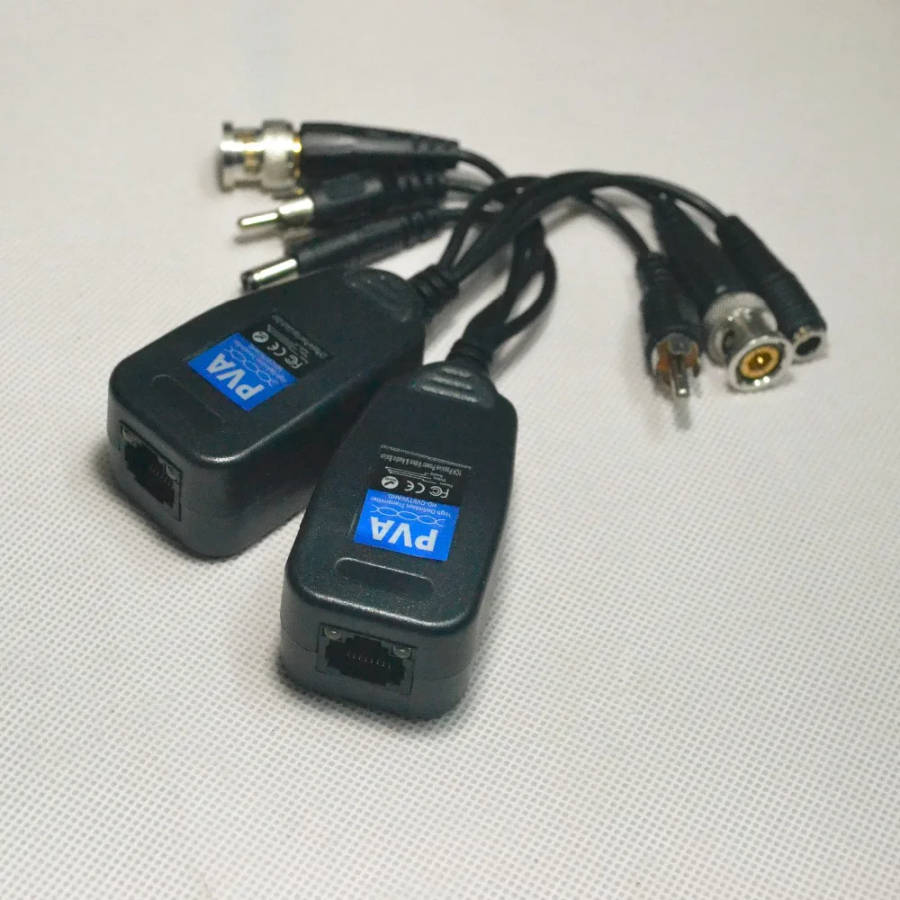

It is a single channel passive video balun/transceiver.
It allows transmission of real time and and high-performance color ormonochrome (B/W) CCTV video over UTP cable.
It supports HD-CVI / TVI / AHD and CVBS signal.
Being tiny enough can be directly equipped to camera.It can be used as either transmitter or receiver.
Compatible with CVBS , HD-CVI / TVI / AHD signal
Transmission signal : 720P / 960P / 1080P
Cable: CAT5/5E/6
Frequency response : DC to 60Mhz
CMRR : 60dB
Surge protection : 4KV ; ESD : 8KV
BNC connector : 75 Ohms
UTP Cable : 100 Ohms
MTBF : >10000H
Operating Temperature : -10-55
Storage Temperature : -20-70
Humidity : 0-95%(non-condensing)
Material : ABS plastic
