Features:

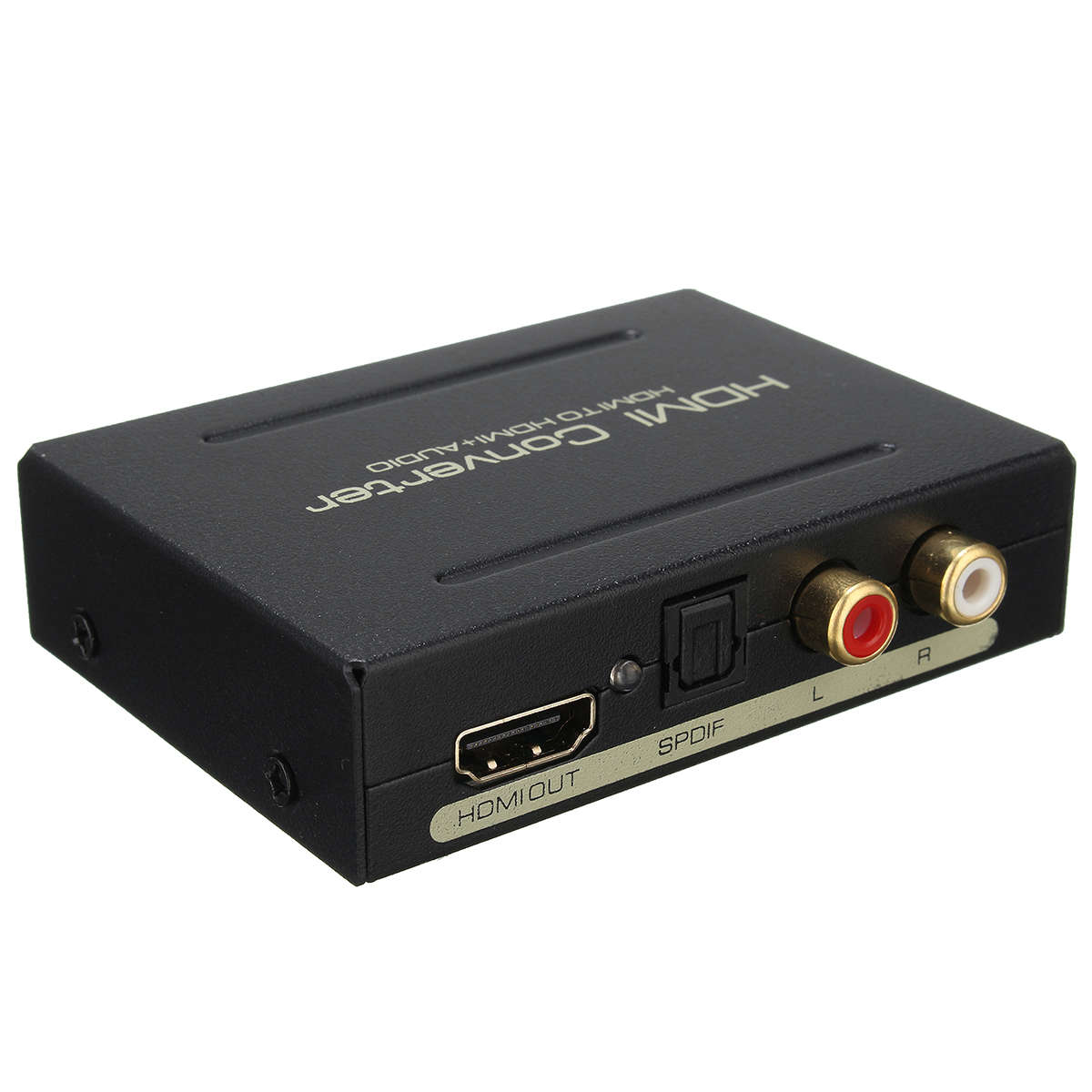

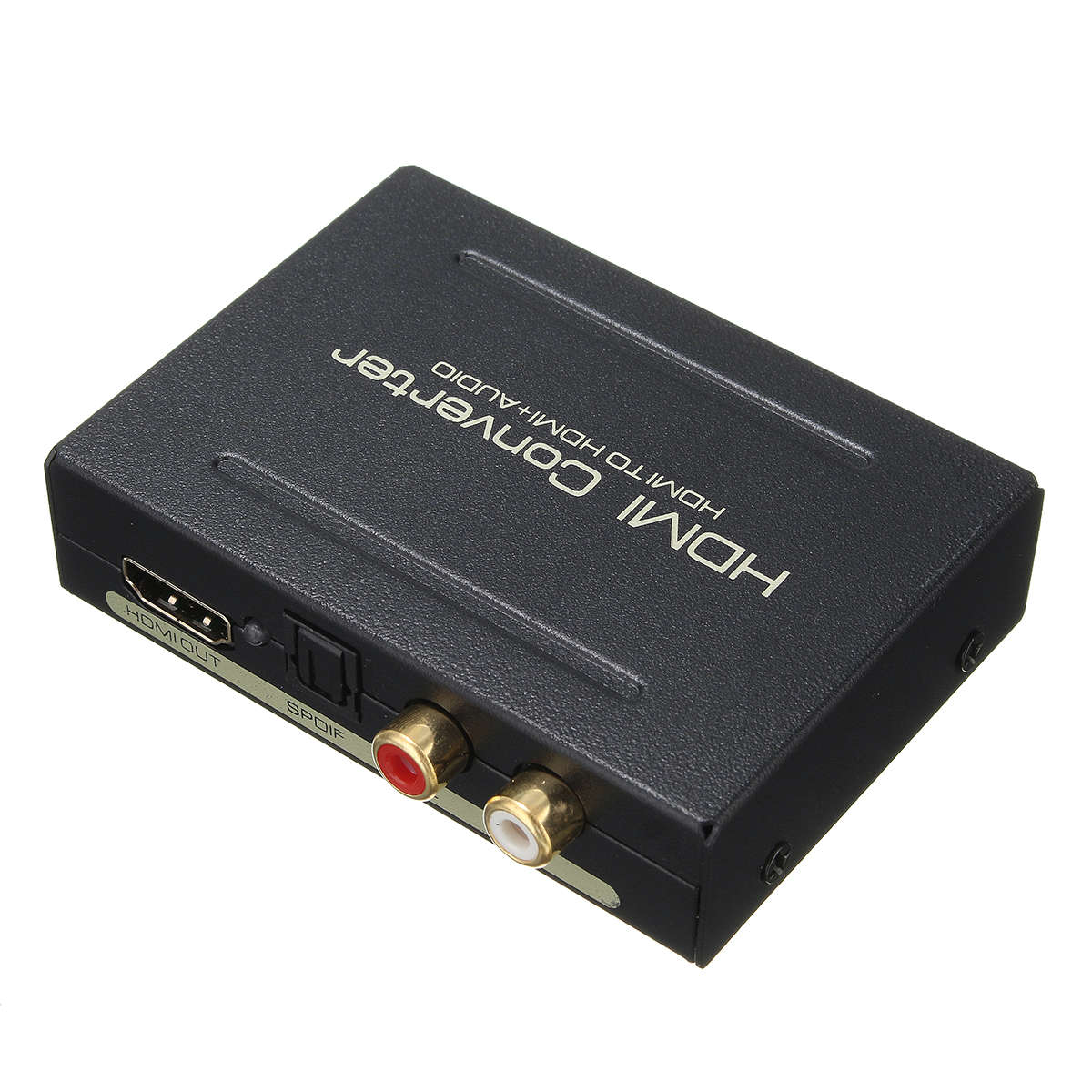

The HD to HD converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.
This devices can extract the digital 2CH PCM stereo audio signal from the HD input and convert it to 2CH analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time.
It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Easy to install
Supports Apple TV and various Blu-ray player
One HD input converted to one HD+ Audio (SPDIF+R/L)output
Output audio support: SPDIF+R/L analog Audio Output.
SPDIF output: support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond)
Input Resolution: up to 1080P(50/60Hz)/720P/480P
LED indication
Power supply: DC 5V/1A
Specifications:
1. HD resolution: 1080P/1080i/720p/576p/576i/480p/480i
2. Support video color format: 24bit/deep color 30bit,36bit
3. Audio output: L/R+SPDIF
4. Max bandwidth 225MHz
5. Max baud rate 6.75Gbps
6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
7. Input/Output DDC signal 5Volts p-p (TTL)
8. Input cable distance. ≤15m AWG26 HD standard cable
9. Output cable distance ≤20m AWG26 HD standard cable
10. Max working current: 500mA
11. Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
12. Operating Temperature range (-15 to +55℃)
13. Operating Humidity range 5 to 90%RH (No Condensation)
14. Dimension: 84 x 61.8 x 20mm (L x W x H)

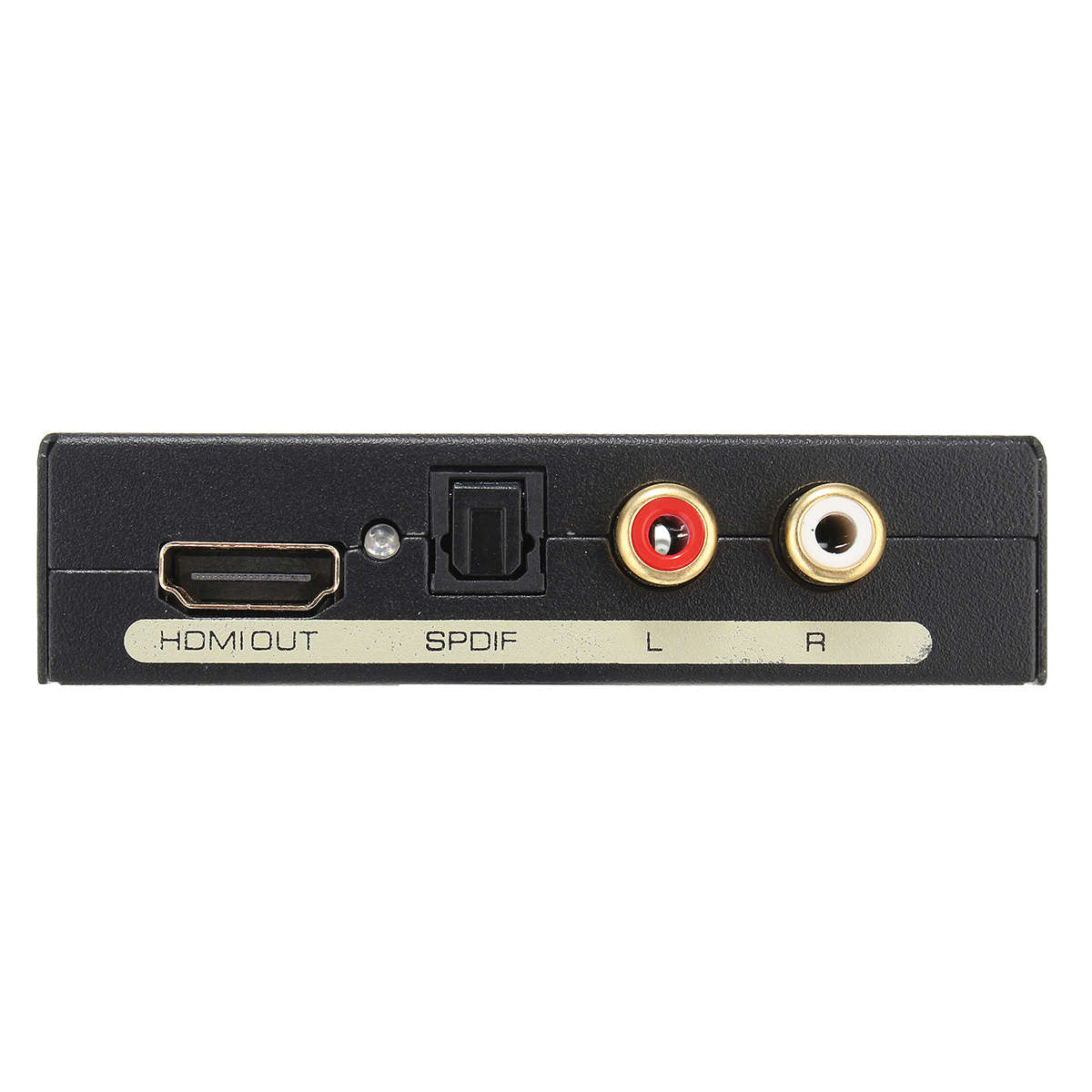

Operating and Connecting:
1. To use one HD cable to connect the HD Source with the input HD port.
2. To connect the converter HD output port with the HD Display
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor
Package Included:
1 x HD Converter
1 x DC 5V Power Adaptor
1 x Plug Adapter(depending on shipping country)
1 x User Manual
