Name: HD to HD and Optical SPDIF RCA L/R 1080P 5.1CH Audio Extractor Converter
SKU: 1136863
Price: 149.99 ZAR
Availability: SoldOut

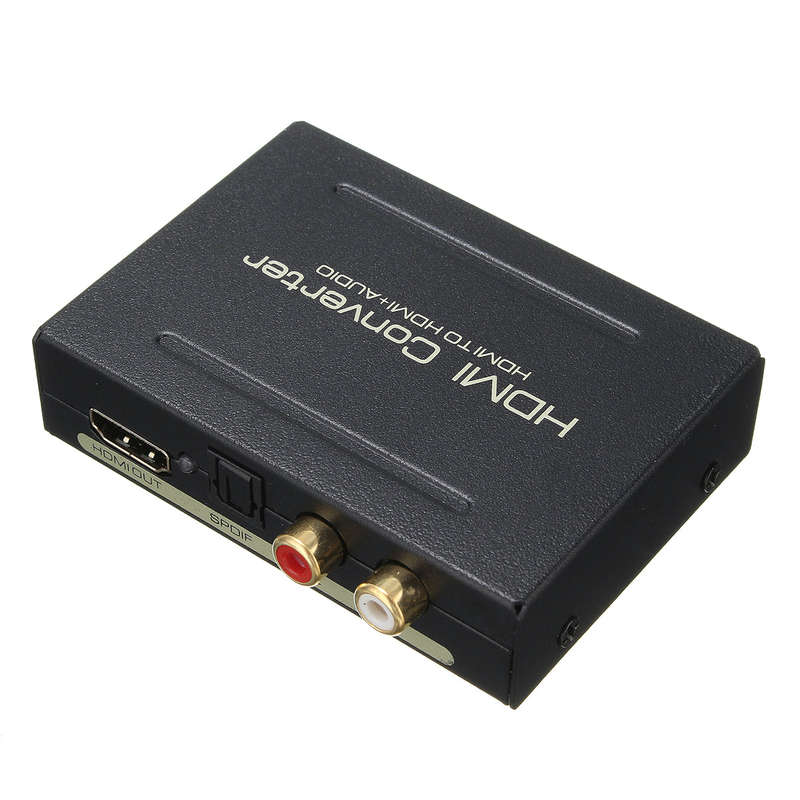

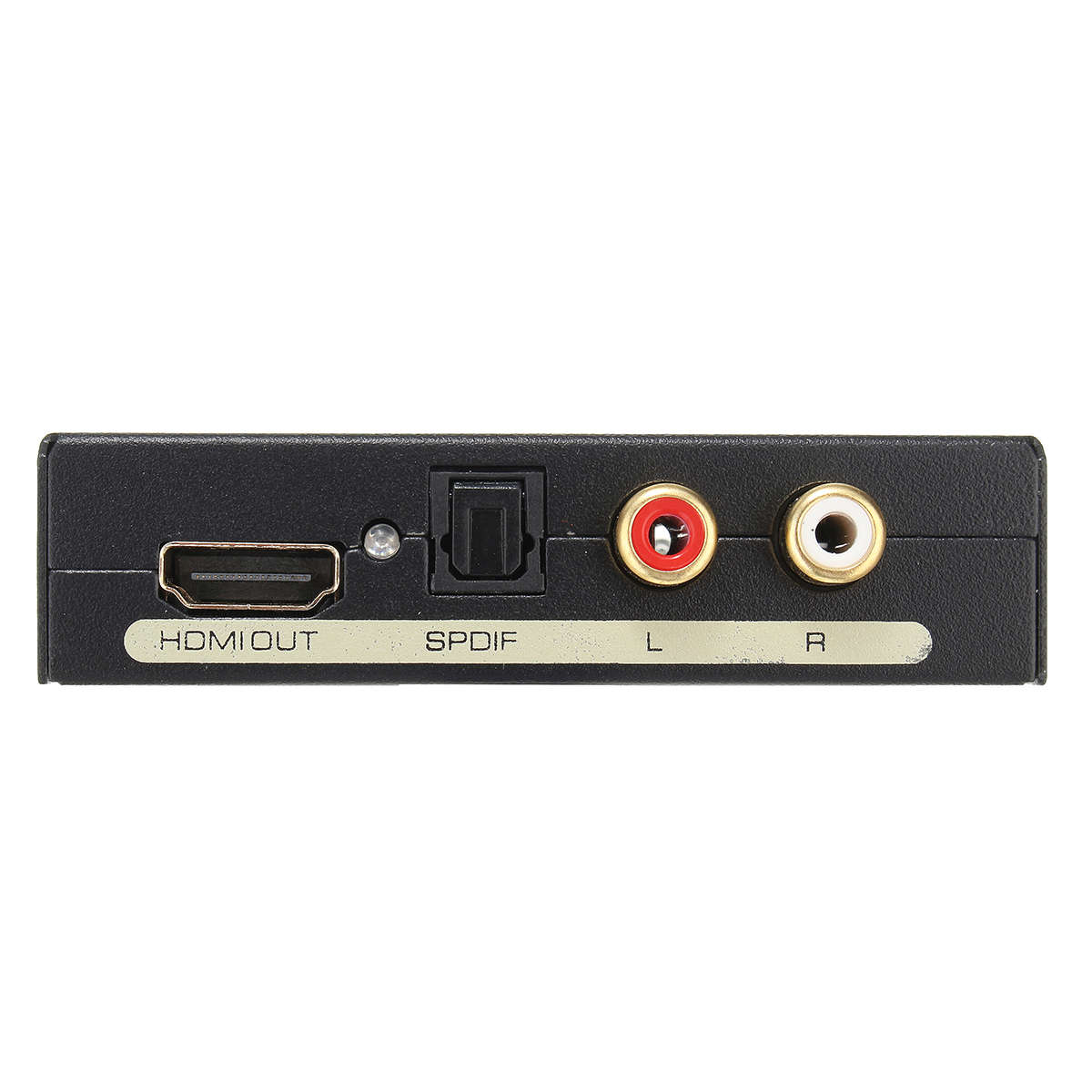

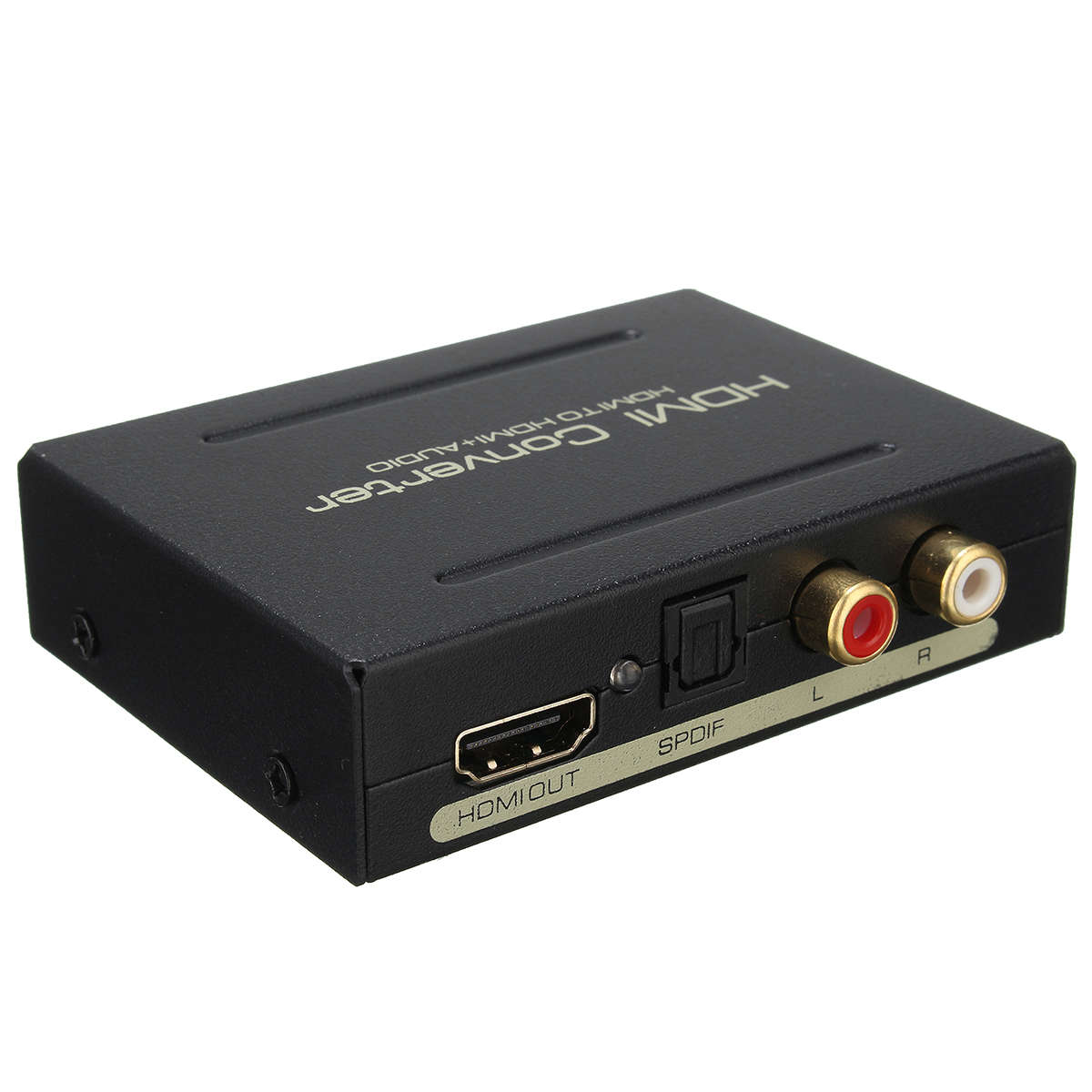

HD to HD and Optical SPDIF RCA L/R 1080P 5.1CH Audio Extractor Converter

New

1 was available

Indicative market price: R250.99

R149.99

40% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

ReliableStore(Blacklisted)

86.29 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

1136863

Bob Shop ID

585688467

The HD to HD converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port.

This devices can extract the digital 2CH PCM stereo audio signal from the HD input and convert it to 2CH analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Easy to install

Supports Apple TV and various Blu-ray player

One HD input converted to one HD+ Audio (SPDIF+R/L)output

Output audio support: SPDIF+R/L analog Audio Output.

SPDIF output: support 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH(it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond)

Input Resolution: up to 1080P(50/60Hz)/720P/480P

LED indication

Power supply: DC 5V/1A

Specifications:

1. HD resolution: 1080P/1080i/720p/576p/576i/480p/480i

2. Support video color format: 24bit/deep color 30bit,36bit

3. Audio output: L/R+SPDIF

4. Max bandwidth 225MHz

5. Max baud rate 6.75Gbps

6. Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)

7. Input/Output DDC signal 5Volts p-p (TTL)

8. Input cable distance. 15m AWG26 HD standard cable

9. Output cable distance 20m AWG26 HD standard cable

10. Max working current: 500mA

11. Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

12. Operating Temperature range (-15 to +55)

13. Operating Humidity range 5 to 90%RH (No Condensation)

14. Dimension: 84 x 61.8 x 20mm (L x W x H)

Operating and Connecting:

1. To use one HD cable to connect the HD Source with the input HD port.

2. To connect the converter HD output port with the HD Display

3. To use one audio cable to connect the converter R/L port with the audio equipment.

4. To use the optical cable to connect the SPDIF port with the audio equipment.

5. To connect the converter with 5V DC power adaptor

Package Included:

1 x HD Converter

1 x DC 5V Power Adaptor
1 x Plug Adapter(depending on shipping country)

1 x User Manual
