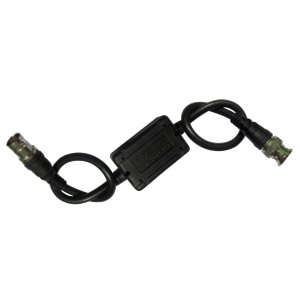

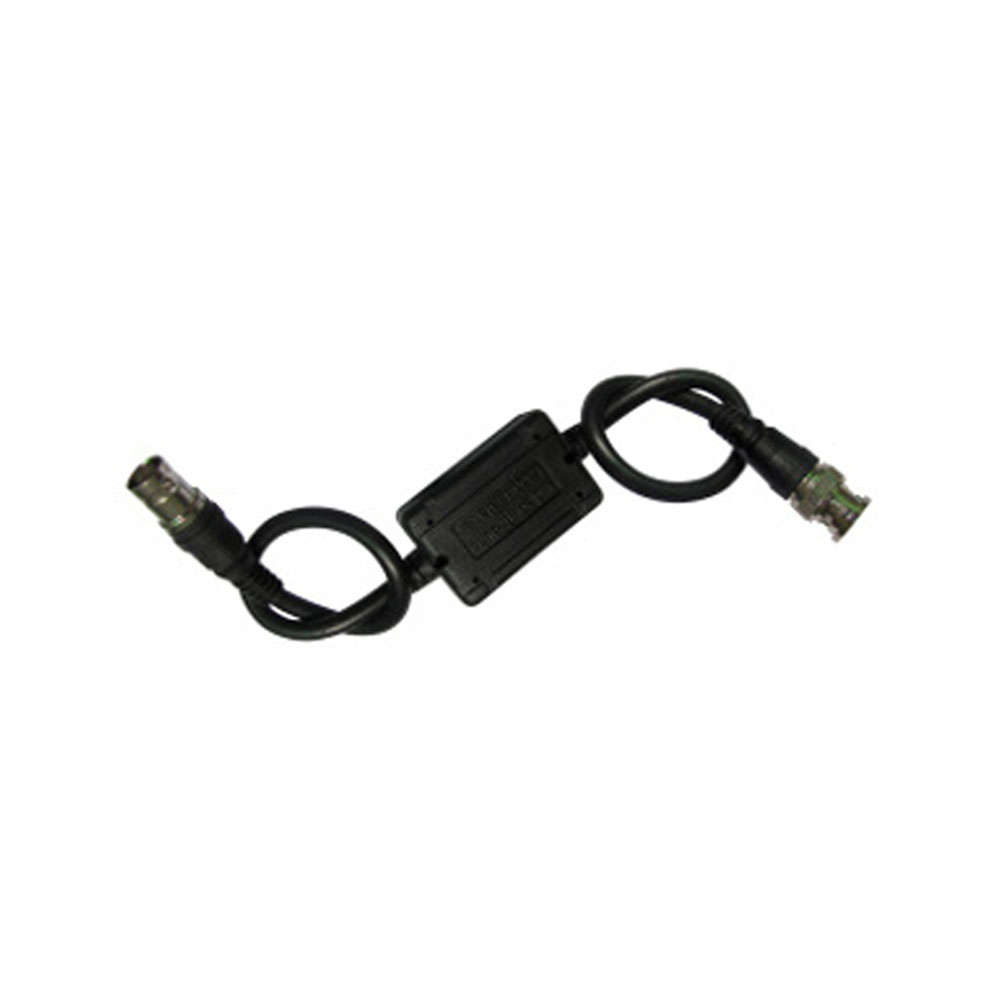

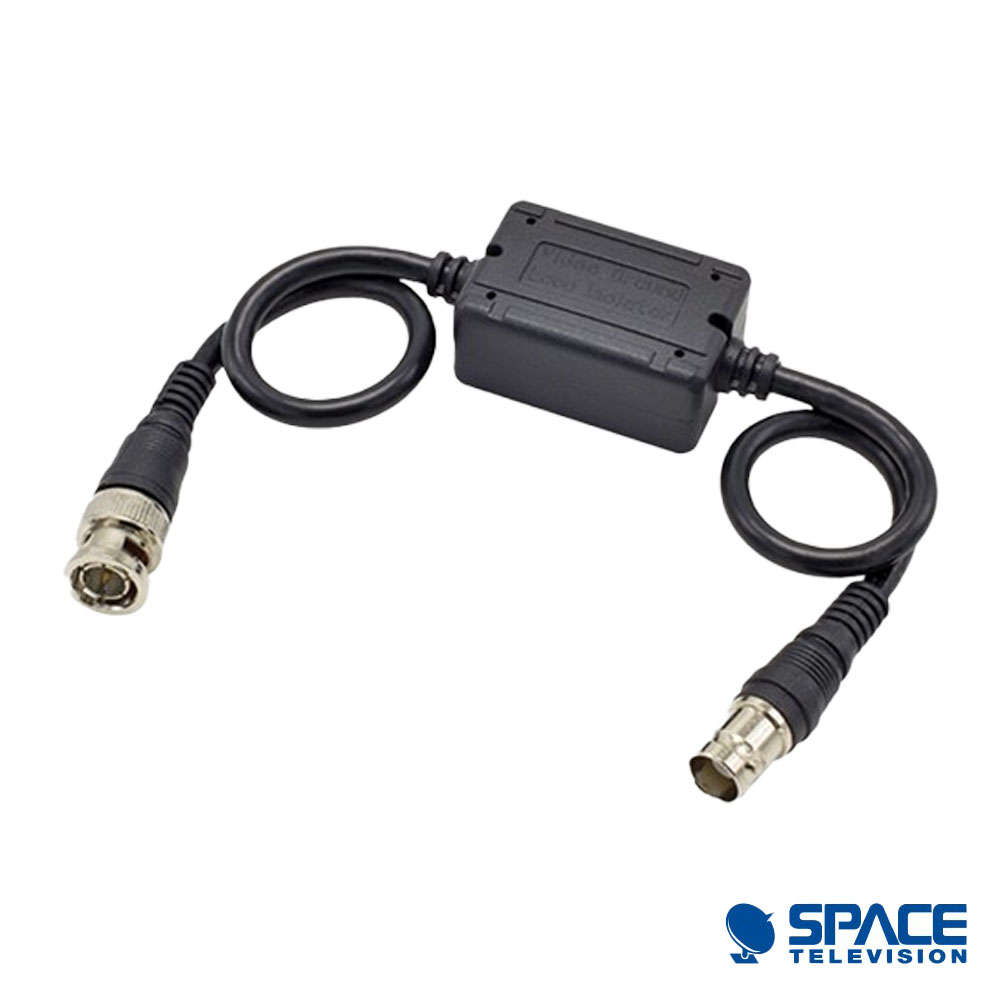

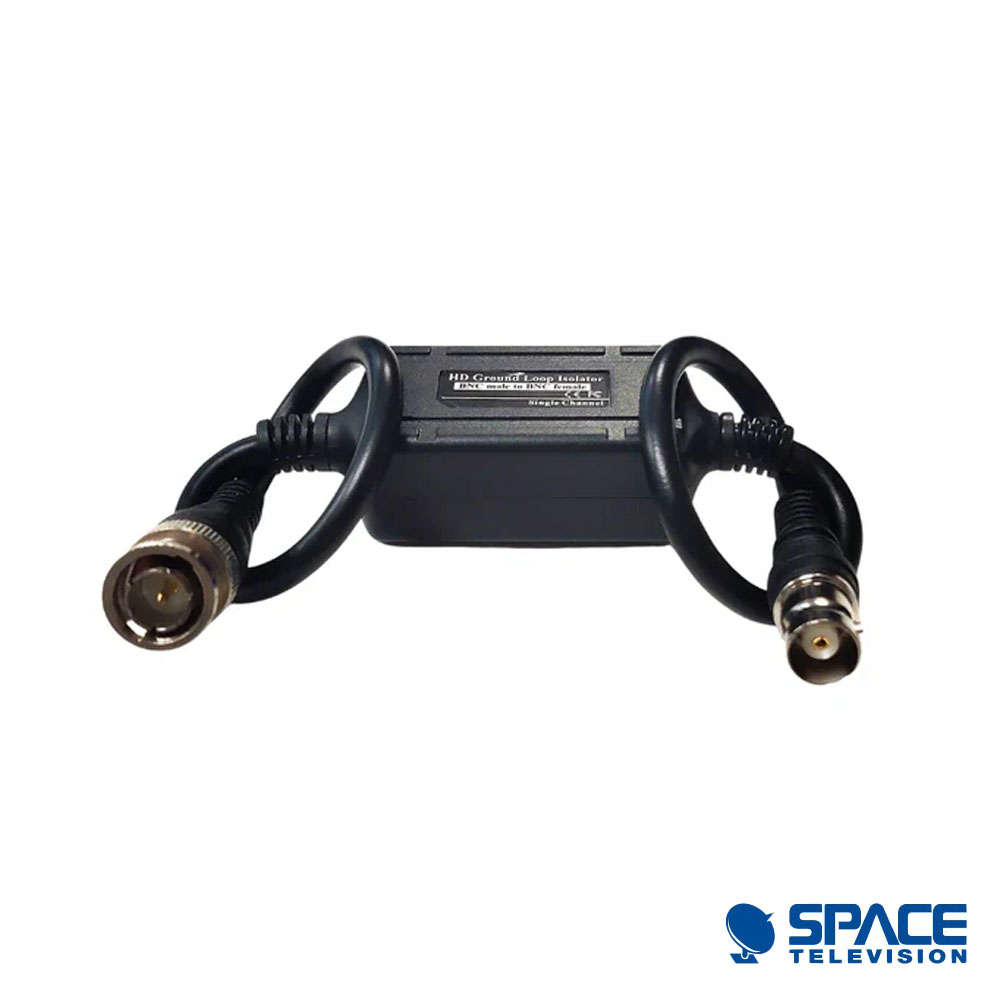

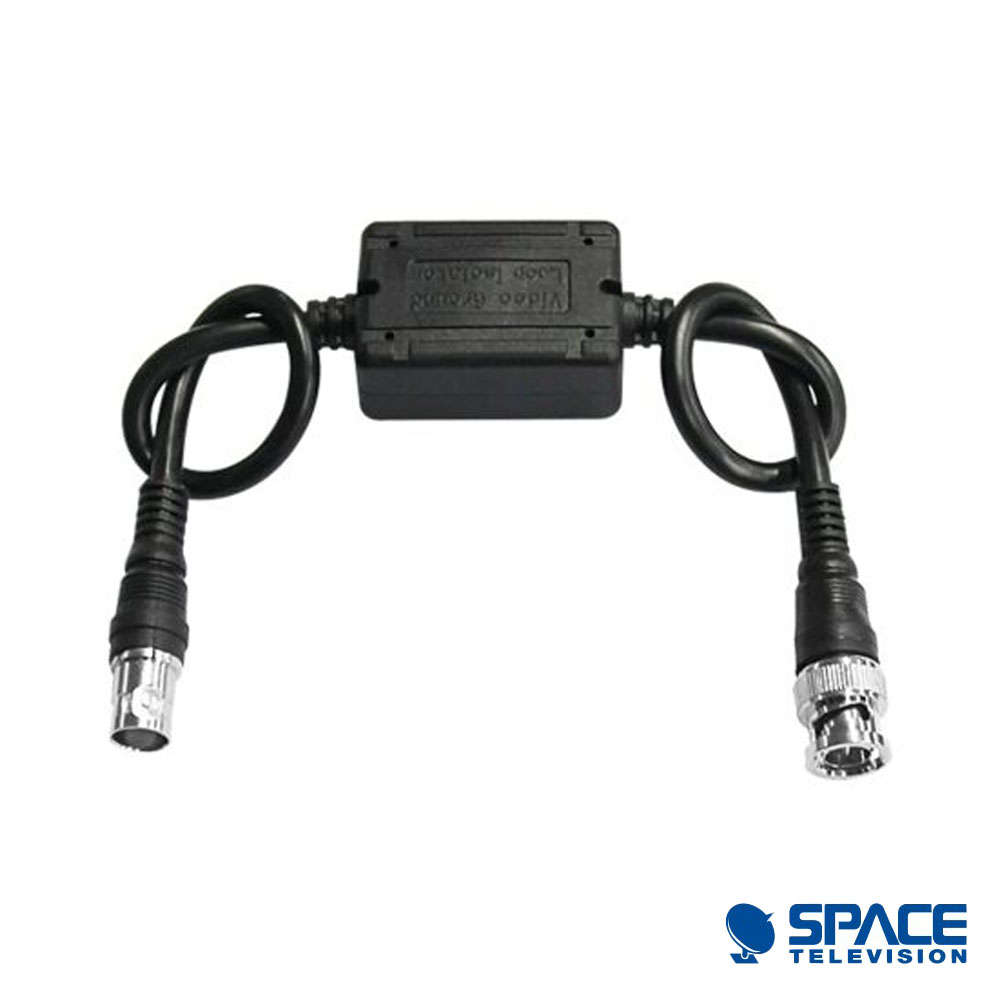

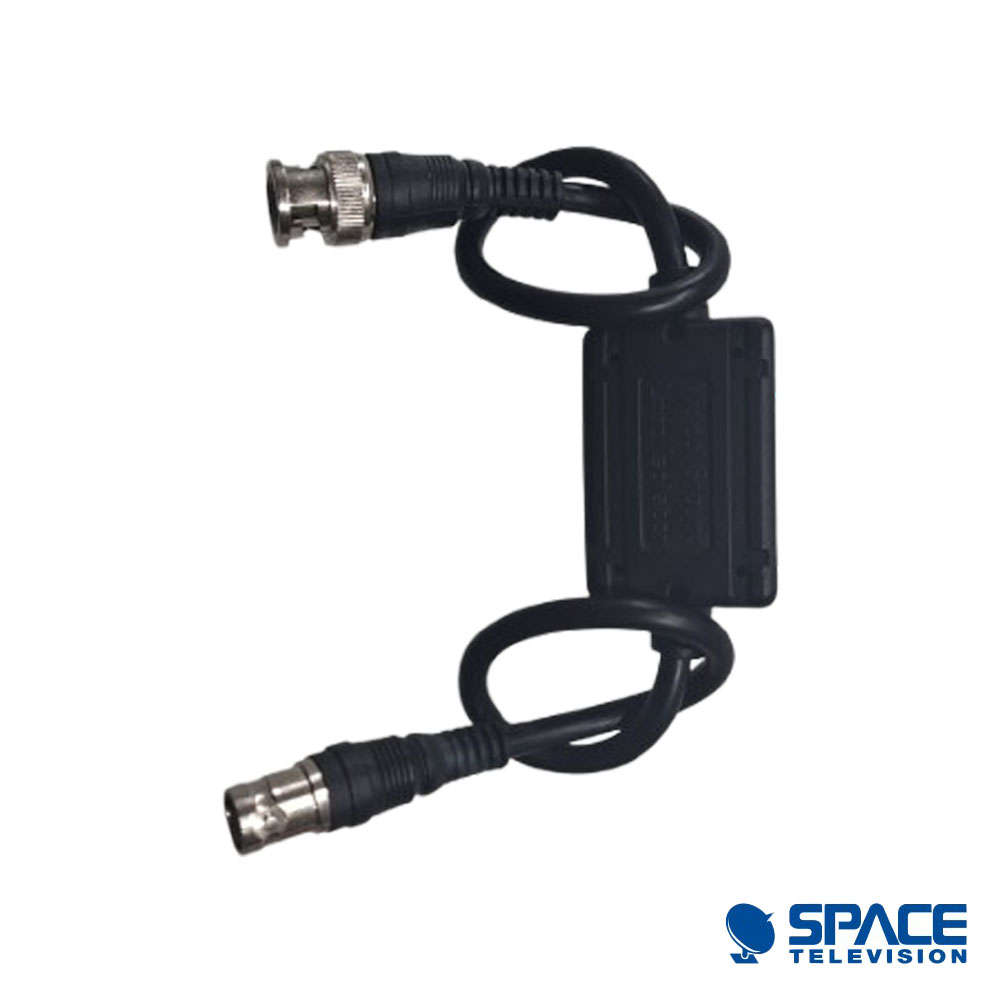

HD Video Ground Loop Isolator

v:* {behavior:url(#default#VML);} o:* {behavior:url(#default#VML);} w:*{behavior:url(#default#VML);} .shape {behavior:url(#default#VML);}/* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal";mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes;mso-style-priority:99; mso-style-qformat:yes; mso-style-parent:"";mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm;mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:11.0pt;font-family:"Calibri","sans-serif"; mso-ascii-font-family:Calibri;mso-ascii-theme-font:minor-latin; mso-fareast-font-family:"Times New Roman";mso-fareast-theme-font:minor-fareast; mso-hansi-font-family:Calibri;mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman";mso-bidi-theme-font:minor-bidi;}FEATURESCompatible with all HD-TVI, HD-CVI & AHD analog cameraBNC male to BNC female with mini 20cm RG 59 coaxial pigtail lead on both sides.Passive, No power supply requiredPrevents video-signal distortion caused by video ground loopsEliminates picture tearing, cross talk and rollingPrevents power cables laid by others interfering with the CCTV systemBuilt in TVS (Transient Voltage Suppressors) for surge protectionDirectly connect to camera or DVR, Monitor, etcGround Loop Circuit Isolation: ＞90dB ＞50HzInsert Loss: ＜0.5 dBDimensions:50 * 28* 28mm  (L*W*H  BNC connector included) OVERVIEWGL001-HD is a high performance and highly reliable HD video ground loop isolatorthat mainly uses for solving the signal interference problem caused by potentialsource of interference.It features two BNC jack of male and female with superiorlightning protection. In actual use,the isolator is connected directly to the HDcamera and DVR. Once the signal passed the isolator, it will become a clearvideo picture,without any ghost. It is widely used in various securitymonitoring system.No power,easy and convenient installation,and highperformance. APPLICATIONS Security Monitoring System Multimedia Network Teaching System Medical Monitoring Display System Industrial Automation Control System Banking, securities, financial information display system Remote Network Server Monitoring Department Store Security Casino Security Hospitals, Airports and banks School Campuses TECHNICAL SPECIFICATIONS border-bottom:ModelGL001-HDProduct NameHD TVI, CVI, AHD & CVBS Video Ground Loop IsolatorApplied devicesCCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors,multiplexers & Quad processor, VCR. VOD.etc.Power Insertion Loss0.5dB
