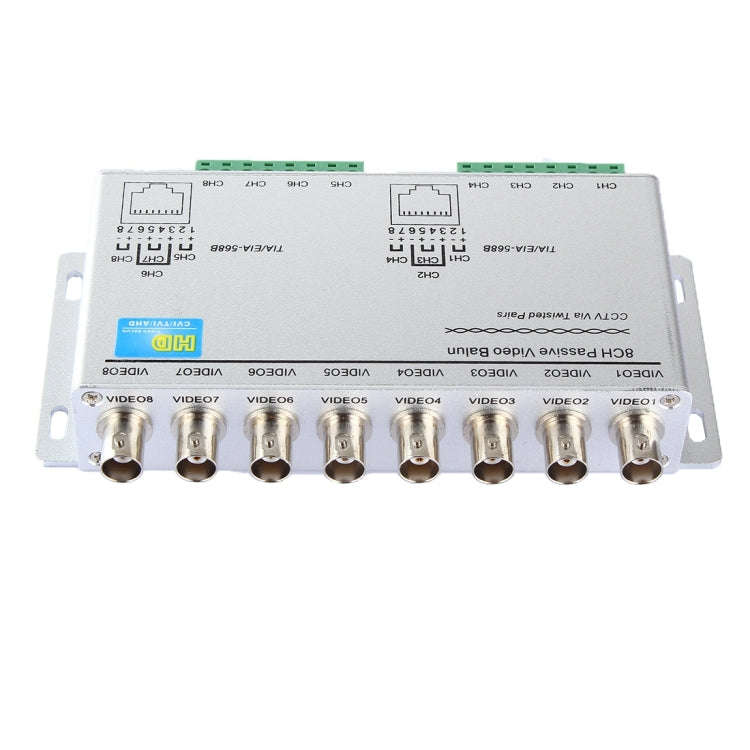

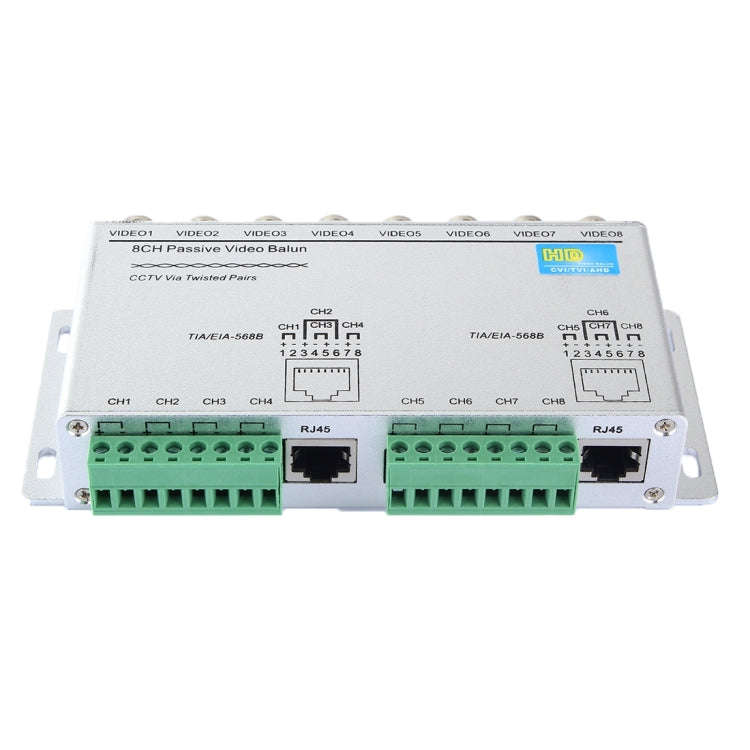

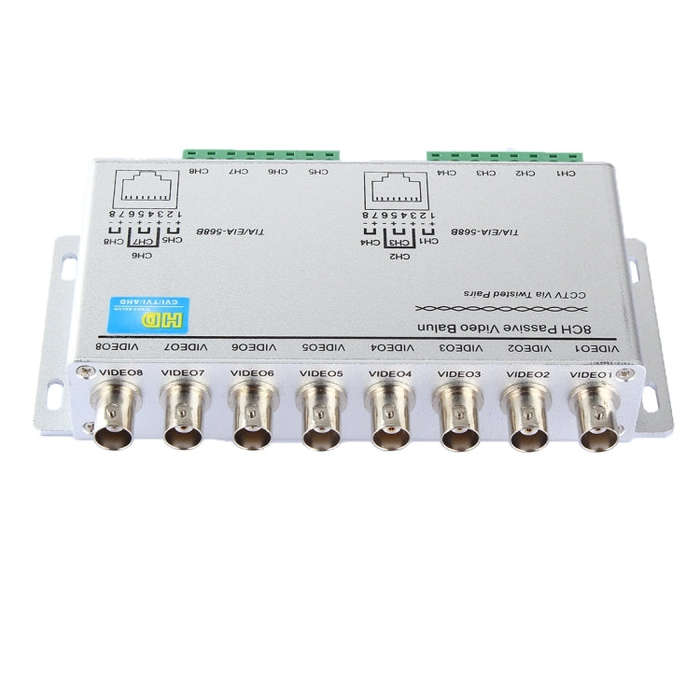

HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun
HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun

HD208 HD-CVI/TVI/AHD CCTV 8CH Passive Video Balun

10 available / new
R575.60
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
CVB0008
Bob Shop ID
637515654
1. HD video balun is to convert the video signal into the balanced signal applicable to transimitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit for channels of video image simultaneously on an 8 cores cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity
2. Compatible with all HD-CVI, HD-TVI, HD-AHD.
3. Up to 450m for 720P CVI Cameras.
4. Up to 250m for 1080P CVI Cameras.
5. Up to 250m for 720P/1080p TVI Cameras.
6. Up to 320m for 720P AHD camera.
7. Up to 250m for 1080P AHD camera.
8. NTSC, PAL, and SECAM video formats.
9. No power required.
10. 60dB cross talk and noise immunity.
11. Built-in transient suppression protection.
12. Surge protection 4KV, ESD: 8KV.
13. Frequency response: DC to 60MHZ.
14. Attenuation: 0.5dB type.
15. CMRR: 60dB.
16. Impedance: BNC: 75ohms, RJ45: 100ohms.

Add to cart
