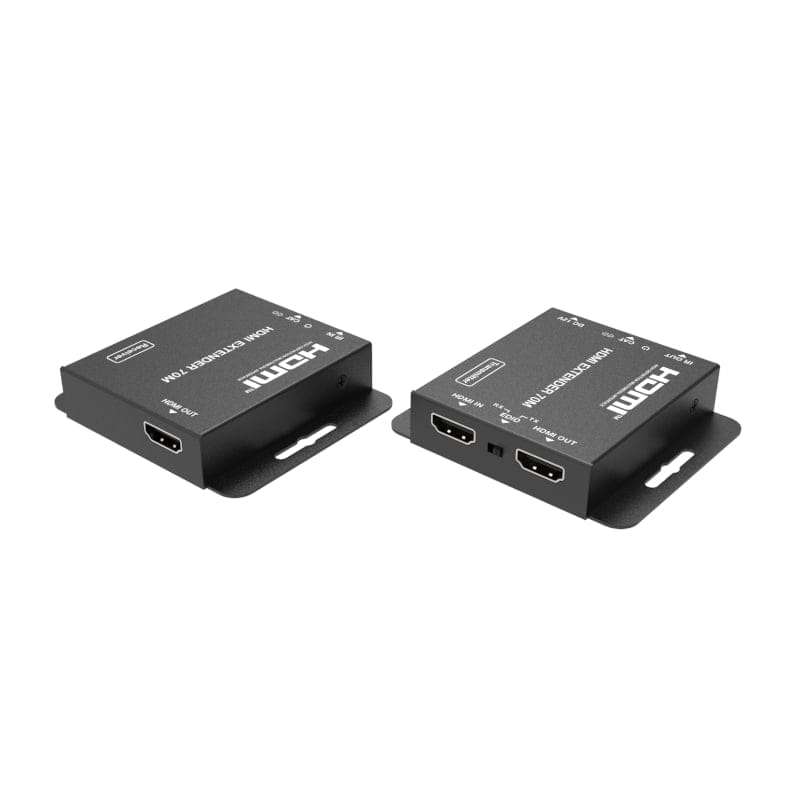

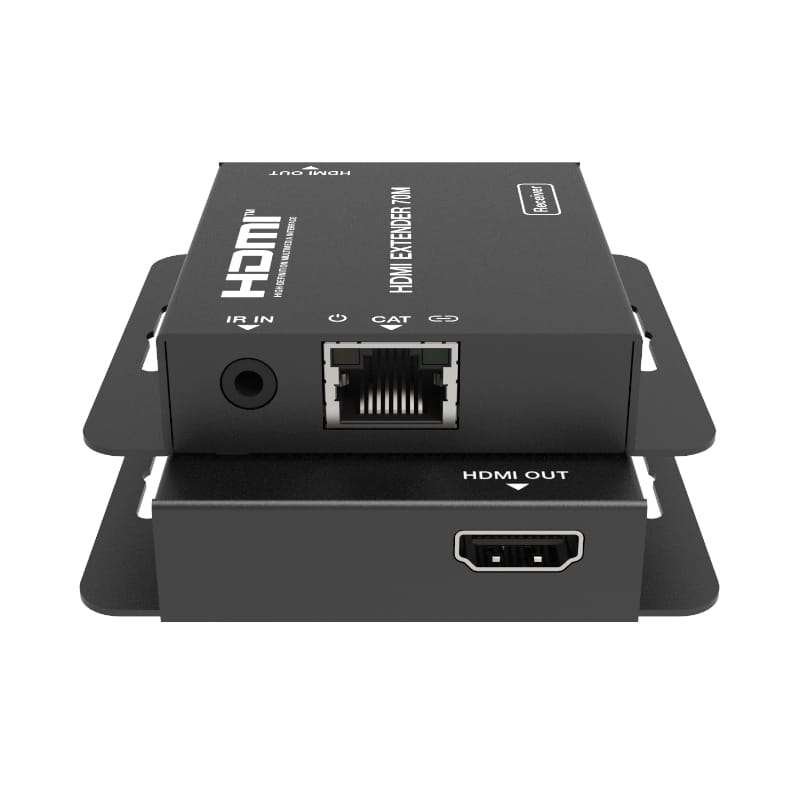

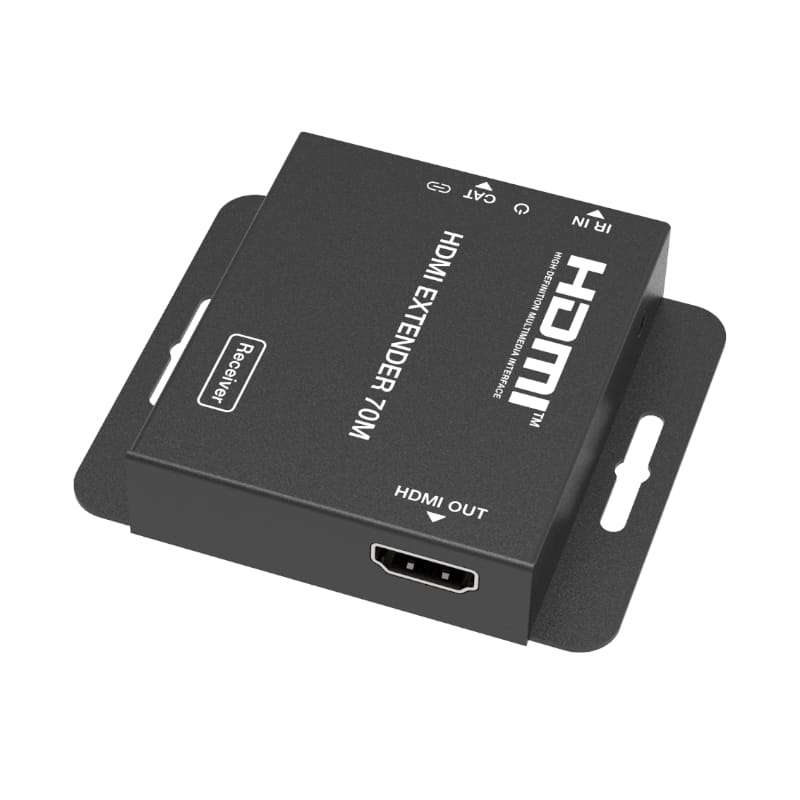

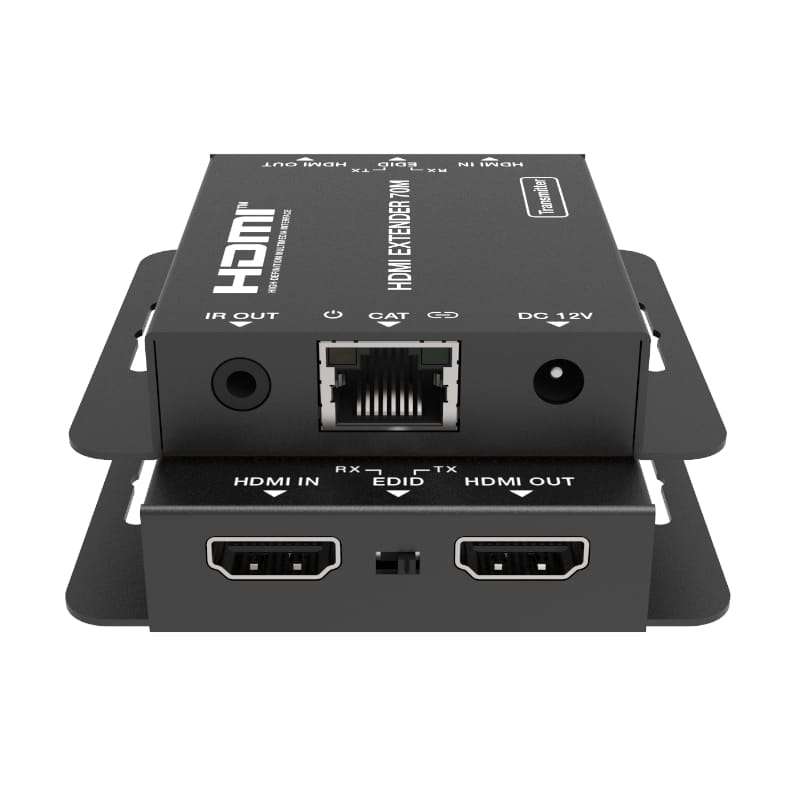

HDCVT HDMI1.4 70m Extender with IR

The HDCVT HDMI Extender with IR Control can extend your high definitionvideo/audio signal and IR control signal up to 70m for 1080p resolution, and upto 40m for 4K30 resolution via a single CAT6 cable. The high-qualityconstruction allows you to achieve zero delays, as well as uncompressedlong-distance transmission between the transmitter and receiver. This extenderwith HDMI loop output can also be cascaded to the next extender, supportingresolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDIDcopy function as well (you can choose local or remote EDID). To top it all offit also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD.This product can be widely used in multimedia conference halls, TV teaching orwith large-screen displays.FEATURES: * HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant * Support Video Resolution up to 4K2K@30Hz YUV 4:4:4 * CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 * CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30 * Support Copying EDID from Receiver Display or Loop Out Display * Allow for Cascading via additional HDMI loop out port * Support one-way POC functionality (from transmitter to receiver) * One-way IR signal transmissionSPECIFICATIONS: * HDMI Compliance: HDMI 1.4 * HDCP Compliance: HDCP 1.4 * Video Bandwidth: 10.2Gbps * Video Resolution: Up to 4K@30Hz * Audio Support Up to 7.1CH HD audio * Input TMDS Signal: 3.3 volts * Input DDC Signal: 5.0 volts/P-P * ESD Protection * Human Body model: * +/- 8 kV (air-gap discharge) * +/- 4 kV (contact discharge) * Transmitter: * Input: * 1 x HDMI Type A [19-pin female] * Output: * 1 x HDMI Type A [19-pin female] * 1 x IR OUT [3.5mm Stereo Mini-jack] * 1 x CAT OUT [RJ45, 8-pin female] * Receiver: * Inputs: * 1x IR IN [3.5mm Stereo Mini-jack] * 1x CAT IN [RJ45, 8-pin female] * Output: * 1x HDMI Type A [19-pin female] * Housing: Metal Enclosure * Colour: Black * Power Supply 12V/1A DC * Power Consumption * Transmitter: 1.86W * Receiver: 0.87W * Product Dimensions: 7.9 x 6.9 x 1.7 cm * Weight: * Transmitter: 132g * Receiver: 130g WHAT'S IN THE BOX: * HDCVT HDMI 70M Extender Receiver x1 * HDCVT HDMI 70M Extender Transmitter x1 * IR Blaster Cable x1 * IR Receiver Cable x1 * 12V/1A DC Power Adapter x1 * User Manual x1
