HDCVT Matrix HDMI 2.0 Scale/Arc/EDID

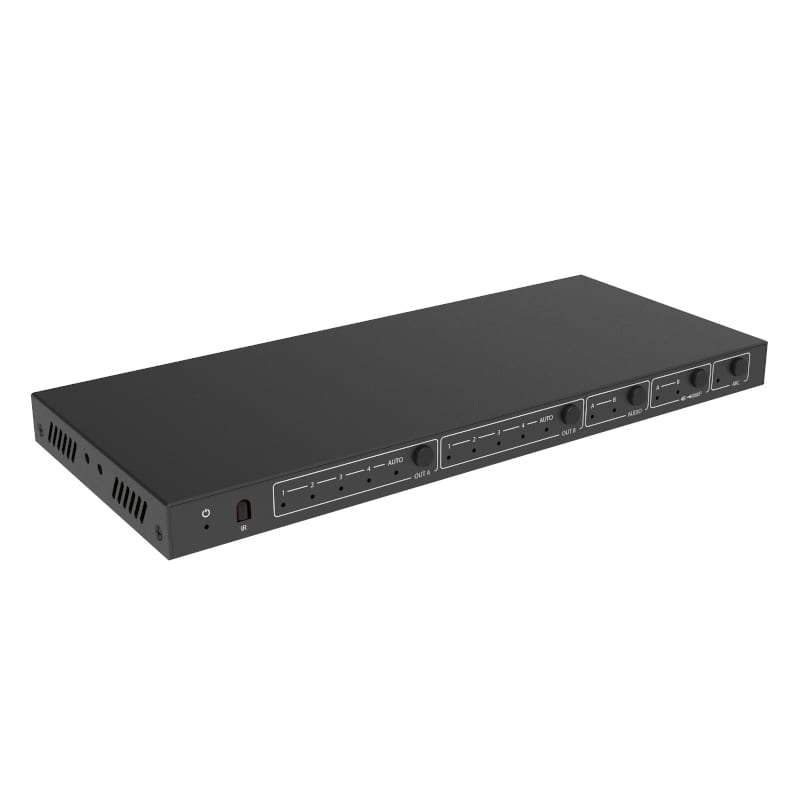

This high performance HDCVT HDMI Matrix Switcher can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K1080P downscaling if the source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) functions. With its 18Gbps bandwidth and the additional features with latest HDMI standards. Flexible control via front panel buttons and IR remote.

FEATURES:

• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Supports 4 HDMI inputs and 2 HDMI outputs
• Video resolution up to 4K2K@60Hz YCbCr 4:4:4
• Supports 18Gbps uncompressed bandwidth on all HDMI
• Supports Dolby Vision, HDR 10+, HLG and CEC function
• Supports extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
• OUT A and OUT B support 4K to 1080P downscale function
• Supports ARC (Audio Return Channel) function
• Supports advanced EDID management including AUTO, COPY and STD
• Control is via front panel buttons and IR remote

SPECIFICATIONS:

• Housing: Metal Enclosure
• Colour: Black
• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Resolution: Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz. All HDMI 3D TV format, etc.
• Color Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]
• HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Optical Audio Formats: PCM2.0, Dolby Digital / Plus, DTS
• L/R Audio Formats: PCM2.0CH (Note: If ARC function is turned on, the audio port will mute.)
• ESD Protection: Human-body Model: 8kV (Air-gap discharge), 4kV (Contact discharge)
• Input Ports: 4HDMI Type A [19-pin female]
• Output Ports: 2HDMI Type A [19-pin female], 1L/R audio out [3.5mm Stereo Mini-jack], 1OPTICAL audio out [S/PDIF]
• Dimensions: 25.1 x 10.5 x 2 cm
• Weight: 620g

WHAT'S IN THE BOX:

• HDCVT HDMI Matrix Switcher - Black x1
• 12V/1A Locking Power Adapter x1
• Mounting Ears x2
• IR Remote x1
• User Manual x1

Switch between four HDMI sources to any two HDMI displays with the HDCVT HDMI Matrix Switcher. It supports supports 4 HDMI inputs, 2 HMDI outputs, up to 4K2K@60Hz resolution, Dolby Vision, HDR10+ as well as 4K to 1080p downscaling.
