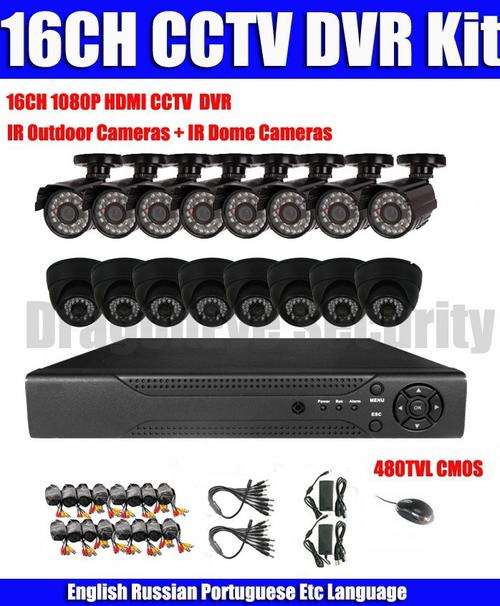

HDMI 16ch DVR Kit CCTV System 16pcs 480TVL Waterproof IR Indoor outdoor Cameras 16ch Security Camera system 16x18m cctv cable

 Live display/record/playback/backup/network transmit
Recording Mode


Manual/Timer/Motion
Playback Mode

Multiple slow and rapid play speeds, manual and single-frame play modes and support of drag the sliding bar to set.
Backup Device

USB flash disk/USB remove HDD/Network/USB DVD/CD-RW
Pre-alarm Recording

Recording for 10 seconds before alarming


Network Protocol
TCP/IP, PPPOE, DDNS and NTP

Ethernet remote view


Support remote surveillance up to 10 users simultaneously

SNS software


YES

Mobile phone View


YES

VGA Interface


YES

Log record function


YES

Image Tour


YES

Remote control


no

Video Loss Detection


YES

Video Adjustable


Hue /Saturation /Contrast /Brightness adjust

PTZ Control


YES, built-in RS-485 port

USB Mouse


YES

Power Source


DC 12V  2A

Key Lock(Password Protection)


-

Power-down recovery function


-

Size(mm)




G.Weight


3KG ( Without HDD)





Camera Specifications

Video Resolution


480TVL

Lens


Board Lens 3.6mm/F2.0

Mini Illumination


0 Lux(IR ON)

Image Sensor


1/3 CMOS

White Balance


Auto

Electronic Shutter


Auto: PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec

S/N Ratio


≥48dB (AGC OFF)

IR Distance


20M

Infrared LEDs


23Units (Ø5mm)

IR Status


Under 10 Lux By CDS

IR Power On


CDS Auto Control

Sync System


Internal Synchronization

Gamma Correction


0.45

Video Out


1.0Vp-p, 75Ω

DSP


CMOS

Operation Temperature


-20 ~ +50 RH95% Max

Storage Temperature


-20 ~ +60 RH95% Max

Current


300mA

Power Source


DC12V (+/-10%)

Water Resistance


IP66

Package
