HDMI 1x2 Splitter with Audio Extractor, Support 5.1CH / 2CH, 4Kx2K, 3D

Introduction

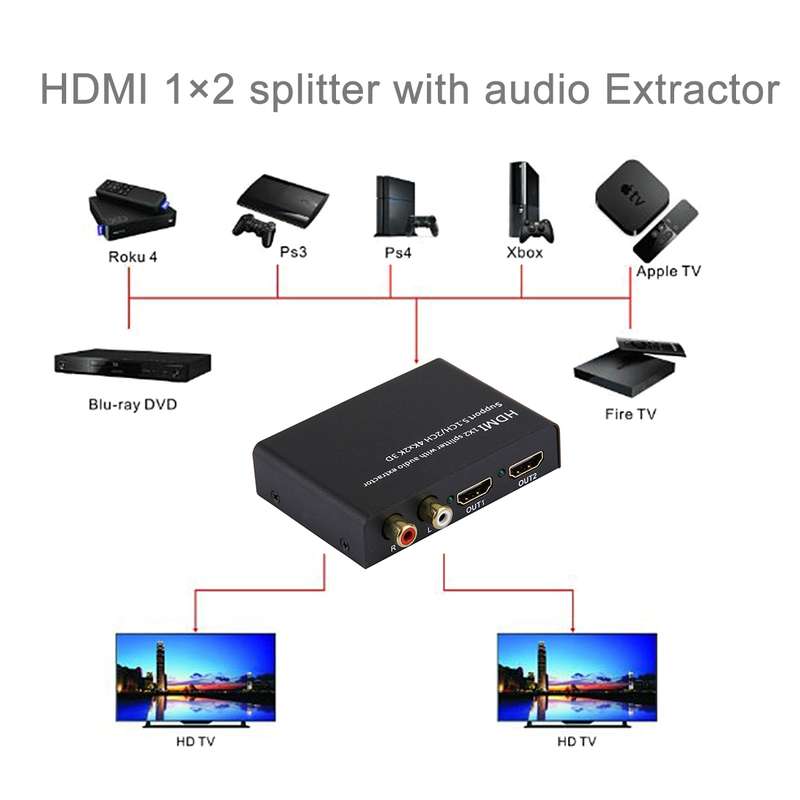

This 1x2 HDMI audio extractor can allow two HD display/TV connect to one HDMI source and show the same pictures. It can also synchronously extract HDMI digital audio signals to digital optical output or 2 channel analog audio outputs which could be connected to your amplifier after the internal DAC audio conversion.

Features
1. Support HDMI 1.4b.
2. 1 x HDMI input, 2 x HDMI output, can achieve synchronous separation of HDMI audio signal. Support 1 x SPDIF optical digital audio output, 2 channel RCA analog audio outputs.
3. Support HDMI resolution up to 4K/30fs, 12bit deep color, full 3D video format.
4. Support SPDIF digital audio format: Dolby digital AC3, DTS, LPCM, Support 5.1CH output.
5. Support 2 reading modes of audio EDID, can switch between external EDID(TV) and built-in EDID (2CH/5.1CH) to select stereo output or 5.1CH audio output
6. LED indication: when source or interface is working, corresponding LED will light up.
7. Adopt 24bit/192KHz DAC, ensure high-quality sound.
8. No loss of signal.
9. Power by DC 5V/1A external power adapter.


HDMI0069
