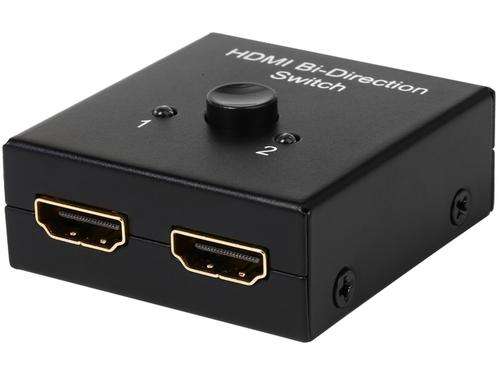

HDMI 2-PORT BI-DIRECTIONAL SPLITTER/SWITCH
HDMI 2-Port Bi-directional Splitter/Switch
This 2-port HDMI v1.4 unit has two operation modes: HDMI signal splitter, and HDMI source selection switch.
When used as an HDMI signal splitter the input signal is split to allow two separate displays to present the same image simultaneously. Units can be cascaded to distribute a single HDMI signal to a large number of displays.
When used as a source selection switch, it allows for switching a display between two HDMI signal sources.
Specifications:
Interfaces3x HDMI
Output type(s)HDMI V1.0, V1.1, V1.2, V1.3, V1.4
Video bandwidth340 MHz / 3.4 Gbps
Supported resolutionsInterlaced: 480i, 576i, 1080i
Progressive: 480p, 576p, 720p, 1080p, 4Kx2K
Maximum cable length5m
Operating temperature0°-70°C
External power supplyNo external power required.
Power consumption (Max.)5W
Package contentsHDMI splitter/switch
User manual
