HDMI 2-PORT MINI SPLITTER

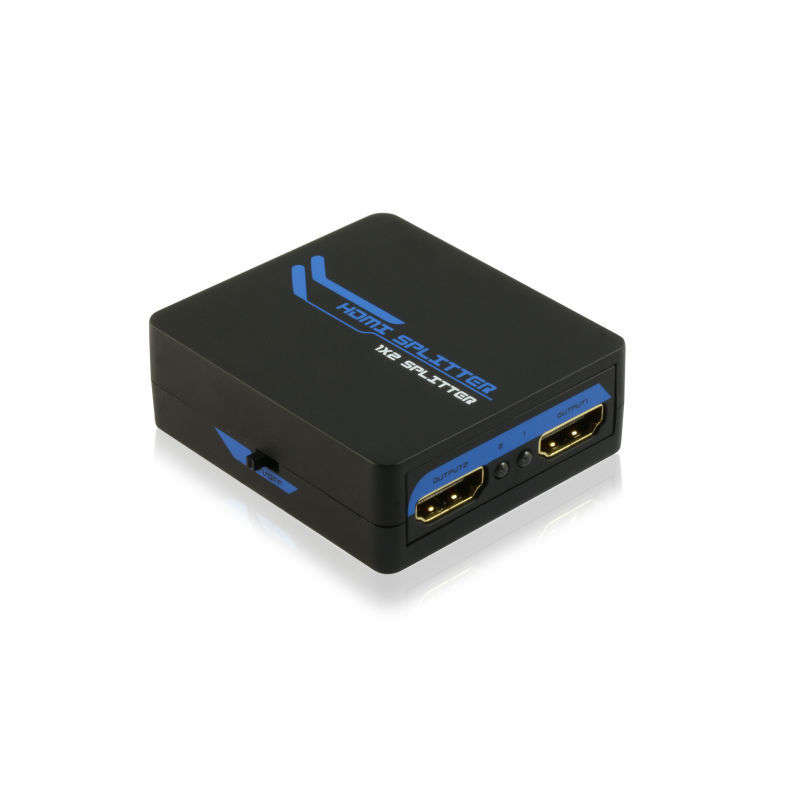

HDMI 2-Port Mini Splitter
This splitter provides two HDMI outputs from a single HDMI input source. When two or more sputters are cascaded they can be used create a large splitter/extender solution for HDTV retail showrooms, conference rooms, and school and corporate training environments.
Product features:
Large distribution is easily achieved by cascading the HDMI Amplifier Splitter
Supports HDMI l.3b
Supports highest video resolution 1080p
Supports 2.25Gbps per channel bandwidth
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital (Including DTS-HD and Dolby True HD)
Supports 3D
Supports CEC function
Specifications:
Interfaces1x HDMI Female (input)
2x HDMI Female (ouputs)
Video bandwidth2.25 Gbps / 225 MHz
Supported resolutions480i, 576i, 1080i, 480p, 576p, 720p, 1080p
Operating temperature0°-70°C
External power supply5V DC via USB cable
Power consumption (Max.)5W
Package contentsSplitter unit
USB power cable
User manual
