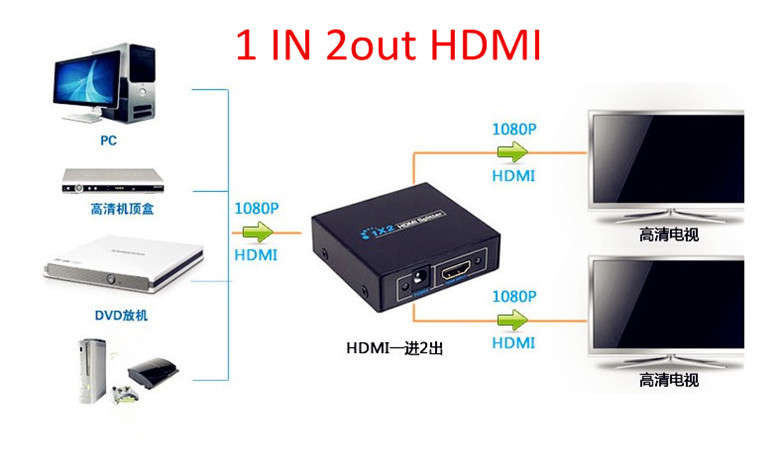

When used as an HDMI signal splitter the input signal is split to allow two separate displays to present the same image simultaneously. Units can be cascaded to distribute a single HDMI signal to a large number of displays.
When used as a source selection switch, it allows for switching a display between two HDMI signal sources.
Specifications:
Interfaces2x HDMI
Output type(s)HDMI V1.0, V1.1, V1.2, V1.3, V1.4
Video bandwidth340 MHz / 3.4 Gbps
Supported resolutionsInterlaced: 480i, 576i, 1080i
Progressive: 480p, 576p, 720p, 1080p, 4Kx2K
Maximum cable length5m
Operating temperature0°-70°C
External power supplyNo external power required.
Power consumption (Max.)5W
Package contentsHDMI splitter/switch
User manual
.
