HDMI 3-WAY INTELLIGENT SOURCE SWITCH

HDMI 3-WAY INTELLIGENT SOURCE SWITCH

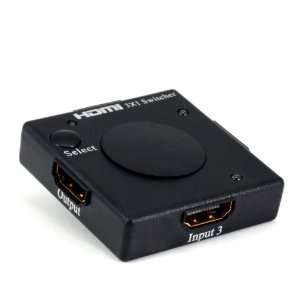

HDMI 3-way Intelligent Source Switch
This HDMI mini source switch can be operated using the push-button or allowed to switch automatically using its intelligent functionality. It routes high definition video (in resolutions up to 4Kx2K) and digital audio from any one of the several sources to your display. All inputs accommodate connection of high definition video sources such as HD-DVD players, DSTV decoders, PlayStation and Xbox gaming consoles, HTPC’s or media players.

Intelligent functionality
When a source device is turned on or plugged in the switch will automatically select this source. If the source device is turned off or unplugged, the switch will automatically select the next active input source.

Product features:

Manual or automatic source selection
Supports HDMI1.4b
Supports HD resolutions up to 4Kx2K@30Hz, 1080p and 3D.
Supports 300MHz/3.0Gbps per channel bandwidth.
CEC Pass-through
Supports 12bit per channel (36bit all channel) deep color.
Supports uncompressed audio such as LPCM.
Supports compressed audio such as DTS Digital, Dolby Digital （including DTS-HD and Dolby True HD）

Specifications:
Interfaces3x HDMI Female (inputs)
1x HDMI Female (output)
Output type(s)HDMI 1.4b
Video bandwidth3.0 Gbps / 300 MHz
Supported resolutions480i, 576i, 1080i, 480p, 576p, 720p, 1080p, 4KX2K
Operating temperature0°-70°C
Power consumption (Max.)5W
Package contents3-way HDMI Intelligent Source Switch
User manual
