HDMI ARC Audio Extractor with HDMI Passthrough/Input and SPDIF Optical/RCA Stereo Audio Outputs |...

HDMI ARC Audio Extractor with HDMI Passthrough/Input and SPDIF Optical/RCA Stereo Audio Outputs | USB C Powered

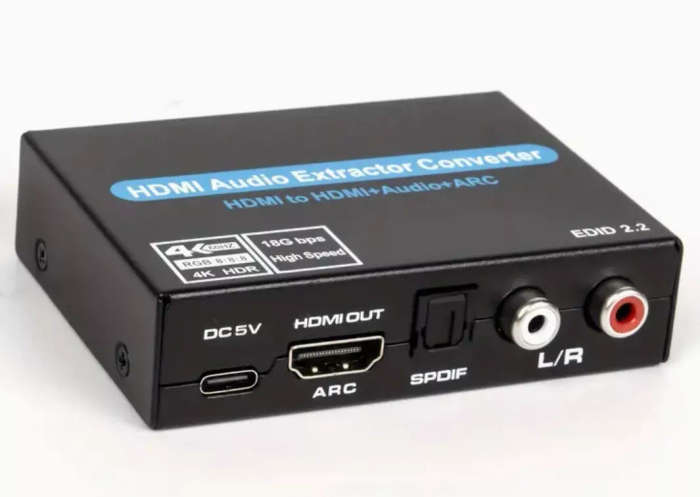

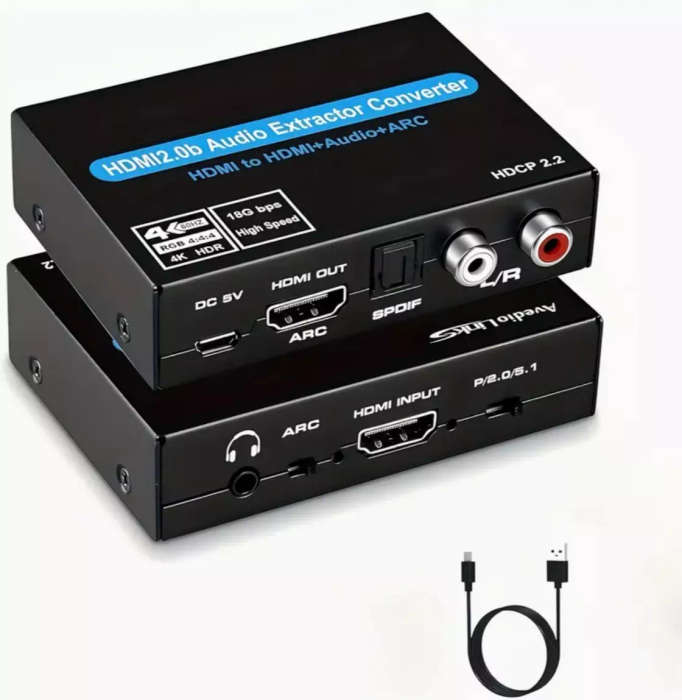

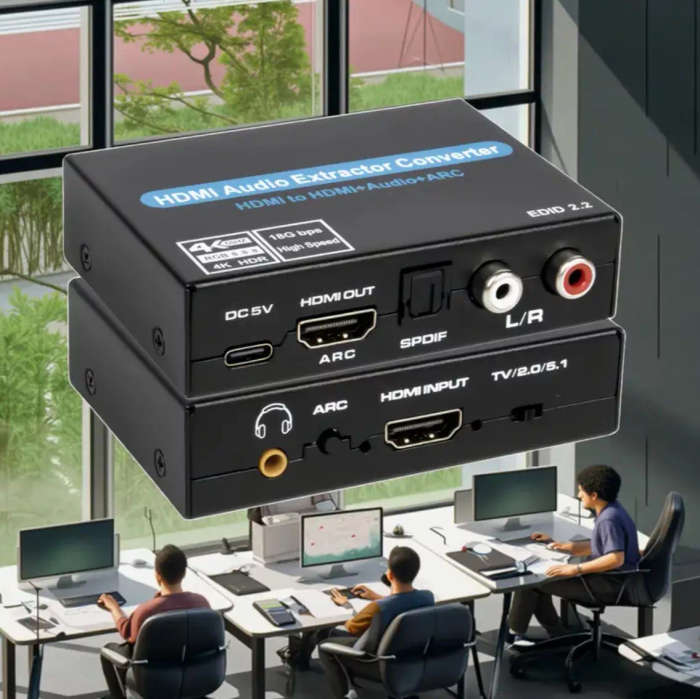

The HDMI ARC Audio Extractor has One HDMI Input Port to one HDMI Output with a Pass Mode function , Toslink SPDIF (Optical) digital audio output (2.0CH/5.1CH Mode) and 3.5mm stereo audio output(2CH Mode) as well as RCA stereo Output. The unit supports up to 4Kx2K Resolutions (3840 x 2160) at 60Hz RGB4:4:4 for Video Passthrough, Ultra HD/3D, HDR & ARC(Audio Return Channel). It Supports HDCP2.2 with 18Gbps bandwidth and 24/30/36 bit deep color.

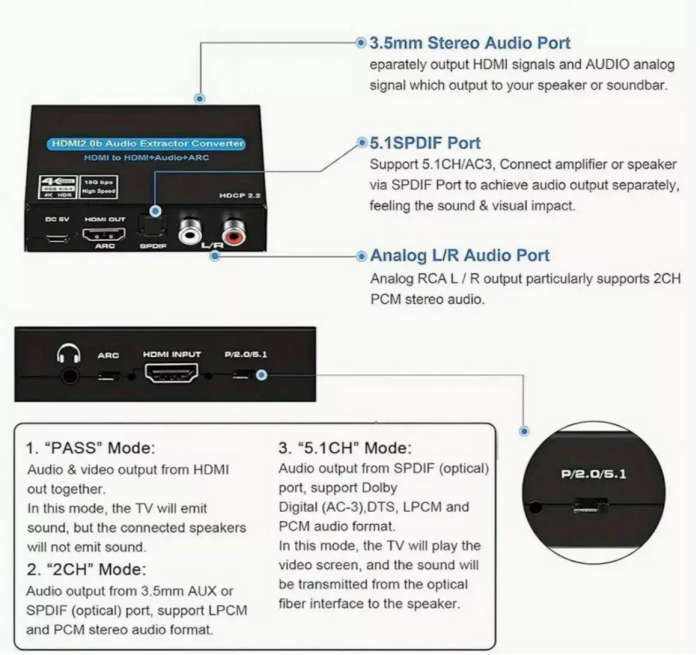

There are three Audio EDID Settings :Pass, 2.0CH and 5.1CH

The 3.5mm audio output supports 2.0CH PCM LPCM stereo audio. Toslink SPDIF Output supports 2.0CH PCM and 5.1CH Dolby Digital. If your Amplifier or sound bar can't support these audio formats, there will no audio on your sound bar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format if your soundbar or digital receiver does not support Dolby Digital Audio.

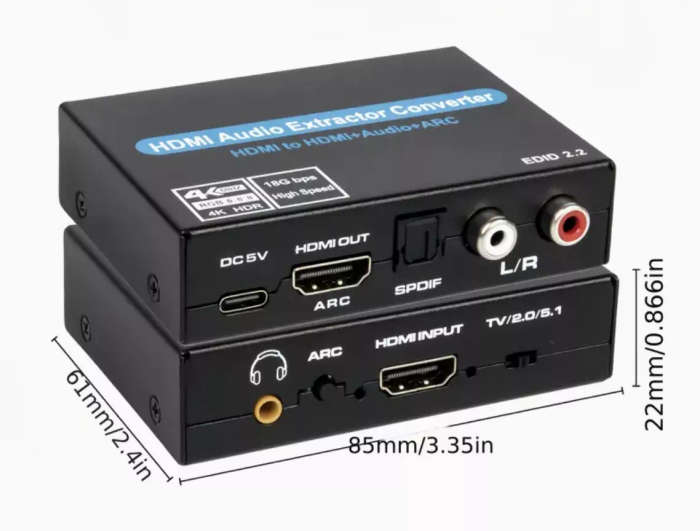

Specifications:

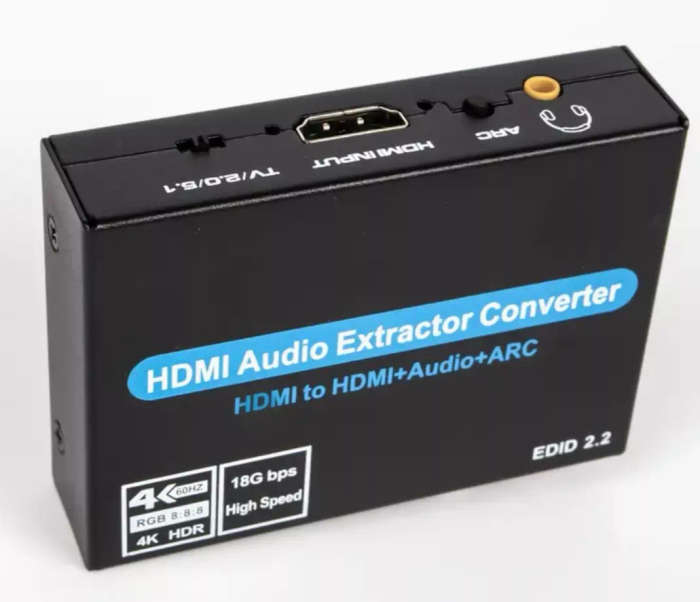

• 1 HDMI input/passthrough port, 1 HDMI output port, 1 Toslink optical fiber output, 1 AUX 3.5mm stereo output; 1 x Analogue RCA Audio Output.
• Supports ARC Audio Return Channel from HDTV or any Displayport to Digital Receiver or Soundbar.
• All Audio Outputs can function at the same time for RCA, 3.5mm and Toslink / SPDIF Audio.
• Supports HDCP 2.2, backwards compatible with HDCP 1.4.

Please note this product is supplied with a USB Power cable (Either Micro USB or USB C Depending on what the device requires) and does NOT INCLUDE A 220v to USB Wall Socket Power adapter. The unit must be powered from a nearby USB Port on a HDTV/Projector/Digital Receiver or alternatively a 220v Wall Adapter to 5v USB Charger/Power supply similar to Slimline 5 Volt 2 Amp USB Wall Charger/Power Supply

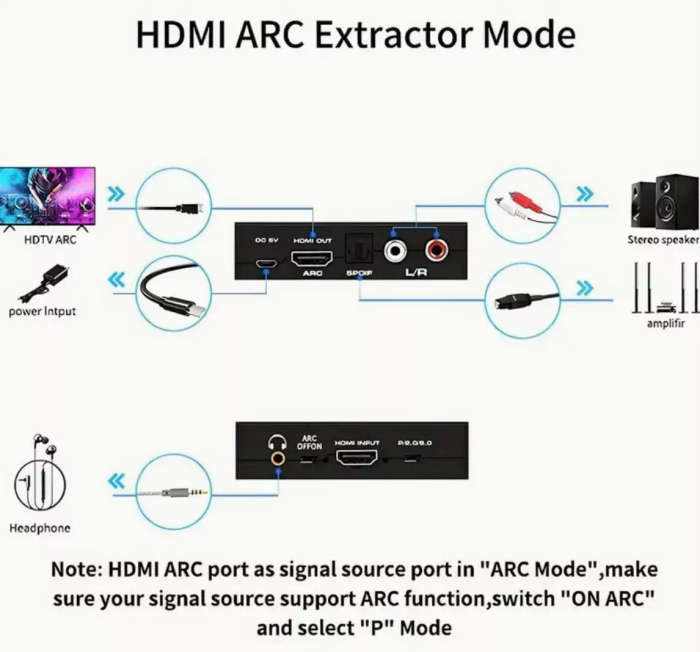

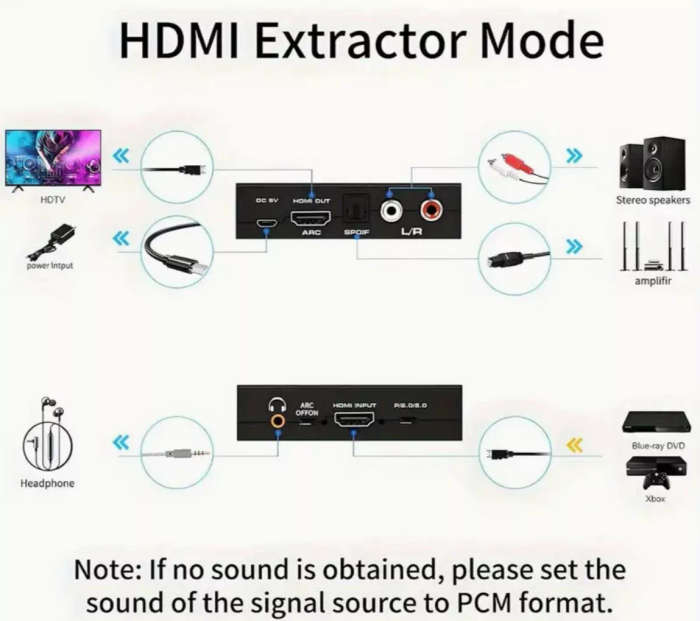

Different setup's that the unit can be used for

Setup option 1

Setup option 2
