HDMI Audio Extractor 4K DAC | Digital SPDIF Optical | Analogue Stereo

This best value cost effective Audio Extractor will seamlessly pass -through and HDMI signal and extract the digital or analog audio.

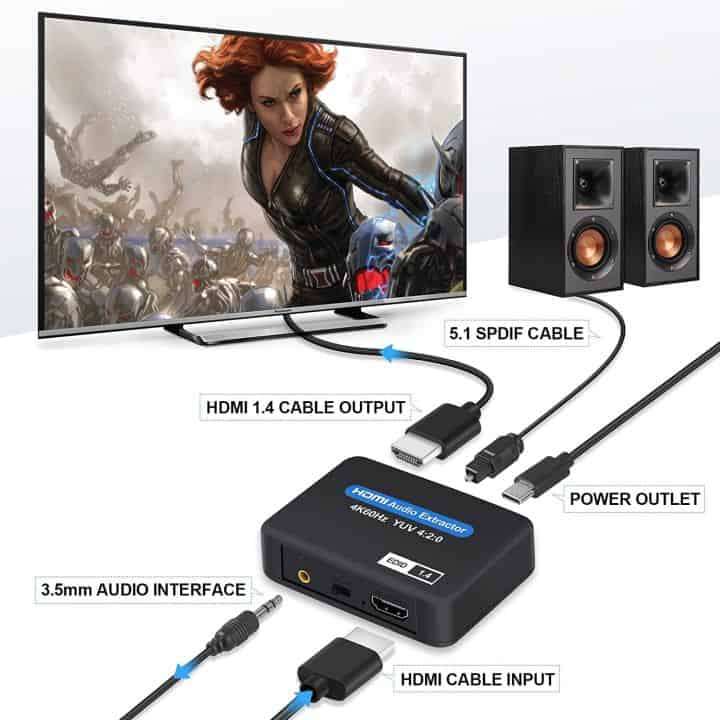

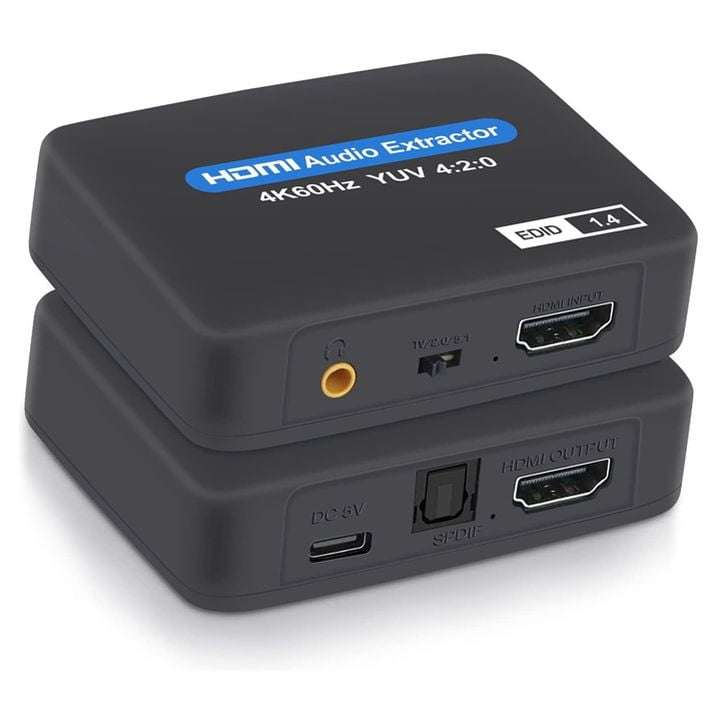

• HDMI pass-through is achieved via 1x HDMI Input & 1x HDMI Output. Ports on either side of the unit.
• Digital Audio OUT is via SPDIF Toslink Optical
• Analog Audio OUT is via 3.5mm Jack Aux socket. This can be connected to an AUX to RCA cable, AUX to AUX to cable or Headphones etc. (depending on the input required to your sound system).

This superior quality HDMI Splitter and Audio Extractor will extract two audio formats (1x analog 3.5mm Jack and 1x digital SPDIF optical) from any HDMI signal.Features:Audio Output Formats (refer additional product images for connections)

1. Analog Audio: is via 3.5mm Jack or Aux plug for connection to headphones (direct), sound systems and amplifiers etc.

• Supports L+R stereo
• If you require the analog output to be RCA to for then you will require a 3.5mm jack plug to 2x RCA or a 3.5mm Jack to 3,5mm Jack plug cable

2. Digital Audio - Optical SPDIF/ Toslink: is via optical connection.

• Supports 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD (Note: only Dolby Digital Plus is not supported)
• Need Digital 2m Optical Toslink, SPDIF Cable [click here]

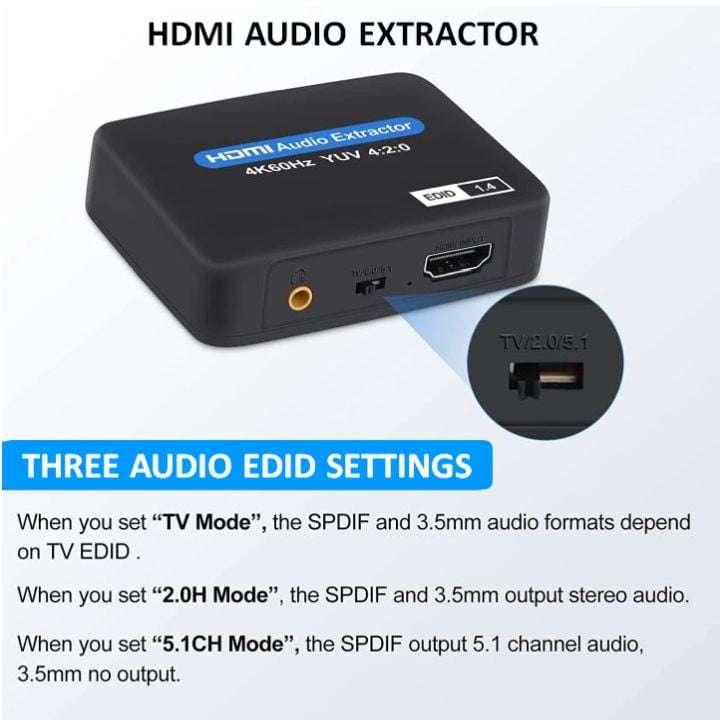

1. Audio EDID & ARC settings:

• three audio mode options of Pass, 2.0CH and 5.1CH.
• this Audio Extractor does NOT support ARC (Audio Return Channel). If you require ARC [click here]

Suitable for use with Sound Bar, Home theatre and any sound system or HiFi. Specifications

• Resolution Max: splitter supports 4K x2K@60Hz, YUV4:2:0
• Resolution All: 4K@60Hz / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i.
• Formats: supports HDMI1.4, HDCP1.4
• Supports standard audio, DSD audio and HD (HBR) audio

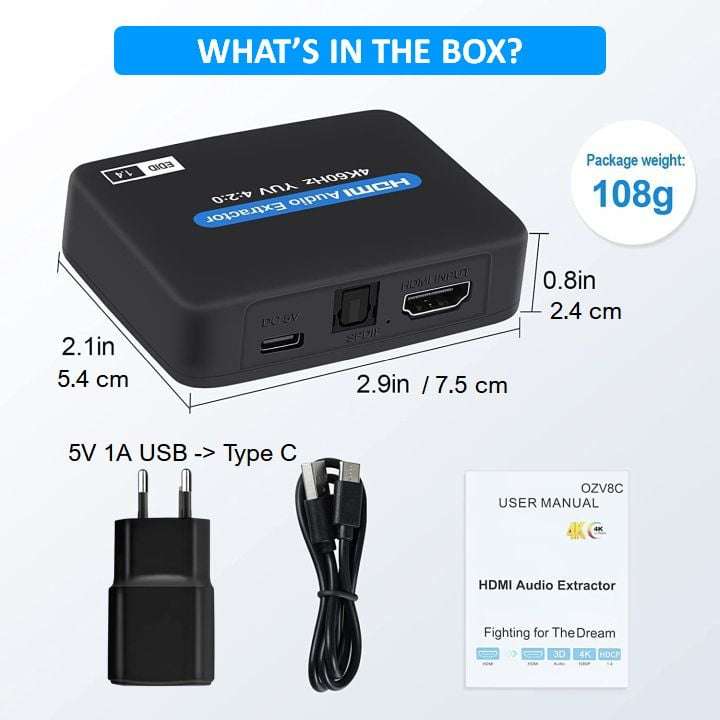

What's in the Box?

• 1x HDMI Audio Extractor
• 1x Power Supply
• 1x User manual
