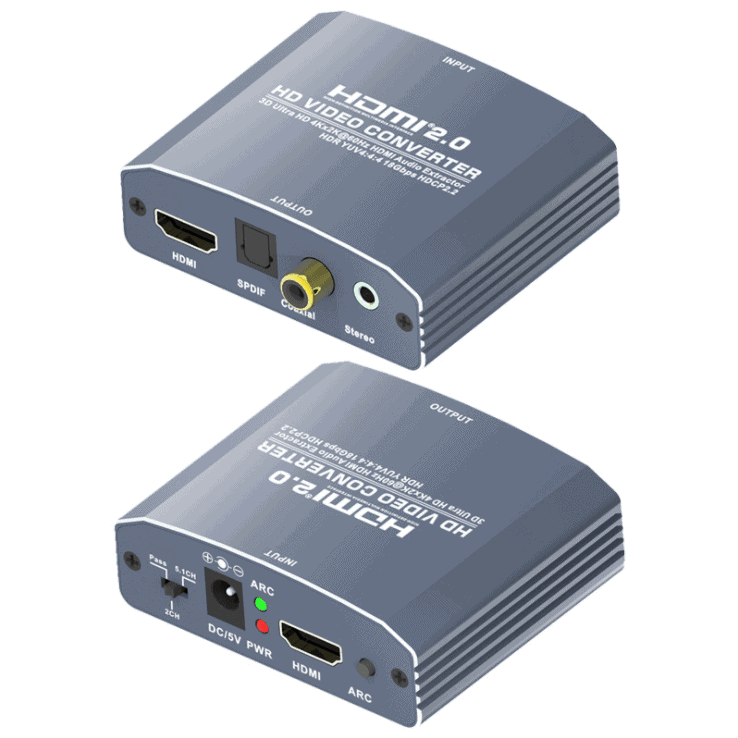

HDMI Audio Extractor, Digital Audio, SPDIF Optical and AV outputs v2.0

This high quality Audio Extractorwill extract the audio in both analog and digital formats for any HDMI signal. This device connects 'inline' between your HDMI Source devices (e.g. Decoder, Gaming Console, PC, TV Box etc.) and your TV or Monitor - HDMI to HDMI. Will seamlessly 'pass-through' (HDMI input and output) any HDMI signal up to 4K.

Digital Audio Output: SPDIF / Toslink via Optical female Out\n- Audio Formats 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD

Analog Audio Output: Stereo Analogue AV via RCA (L+R) female

Full Specifications

• HDMI 'pass-through' resolution :480i/p, 576p, 720p, 1080i/p and 4Kx2K@60Hz
• Support HDMI2.0 & HDCP2.2 and full compatibility down (we also offer a more cost effective the HDMI1.4b / HDCP1.4 version)
• Support video colour format: 24bit deep colour 30bit, 36bit, 3D
• Max bandwidth: 225MHz\n- Max band rate: 6.75Gbps
• Input / Output TMDS signal: 0.5~1.5Volts p-p(TTL)
• Input / Output DDC signal: 5Volts p-p(TTL)
• Max working current: 500mA
• Power adapter voltage and current Input: AC (50/60Hz) 100V-240V;Output: DC5V/1A
• Operating Temperature range: -15 to +55-degreesC
• Operating Humidity range: 5 to 90% RH( No Condensation)
• Convert the HDMI signal into HDMI- fiber-coaxial and stereo
• Support HDMI1.4b
• Support HDCP1.4 and full compatibility down
• Support for 2.1/5.1/By Pass audio selection
• Support ARC audio back-pass function
• Optimize HDMI signal, signal buffering, amplification, extension
• Imported chip design, high compatibility, low power consumption, more stable.

What's in the box

• 1x HDMI Audio Extractor
• 1x Power Adaptor, 2pin EU
• 1x User manual

Optional Items: Toslink SPDIF Optical Cable 2m
