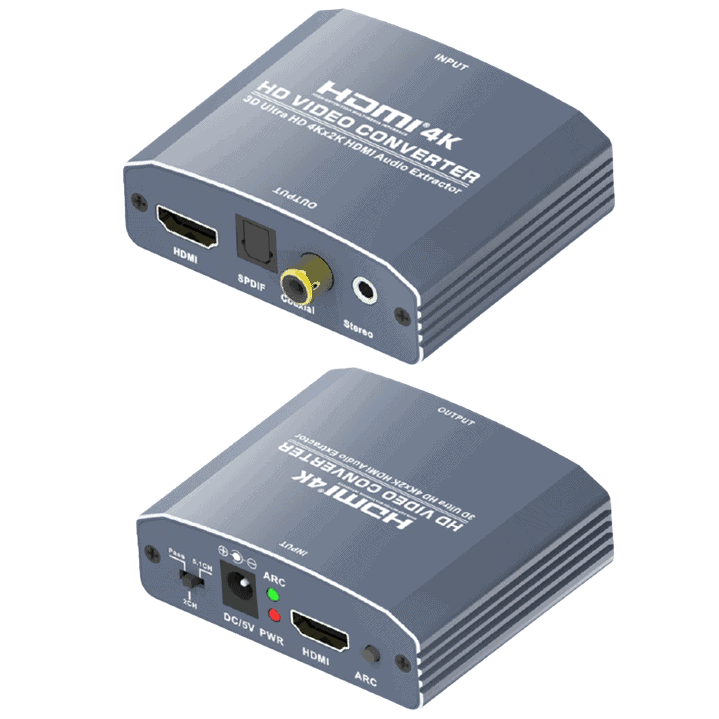

HDMI Audio Extractor, Digital Audio, SPDIF Optical & AV outputs v1.4

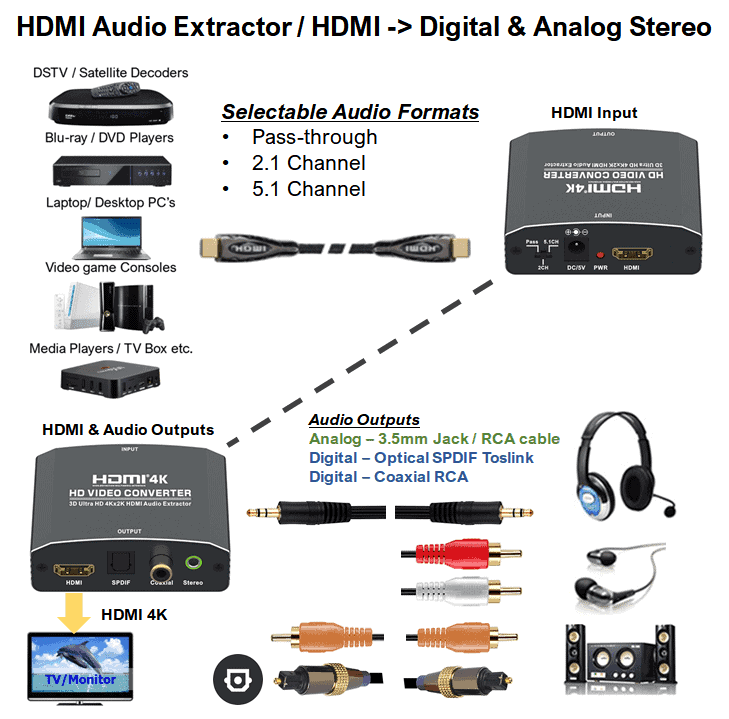

This Audio Extractorﾠ will extract the audio in both analog and digital formats for any HDMI signal. This device connects 'inline' between your HDMI Source devices (e.g. Decoder, Gaming Console, PC, TV Box etc.) and your TV or Monitor - HDMI to HDMI. Will seamlessly 'pass-through' (HDMI input and output) any HDMI signal up to 4K\n\nDigital Audio Output\n- SPDIF / Toslink via Optical female Out\n- Audio Formats 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD\n\nAnalog Audio Output:\n- Stereo Analogue AV via RCA (L+R) female\n\nFull Specifications\n- HDMI 'pass-through' resolution :480i/p, 576p, 720p, 1080i/p and 4Kx2K@25/30Hz;\n\n- Support HDMI1.4b & HDCP1.4 and full compatibility down (if you require the latest spec HDMI2.0 / HDCP2.2 version [click here])\n- Support video colour format: 24bit deep colour 30bit, 36bit, 3D\n- Max bandwidth: 225MHz\n- Max band rate: 6.75Gbps\n- Input / Output TMDS signal: 0.5~1.5Volts p-p(TTL)\n- Input / Output DDC signal: 5Volts p-p(TTL)\n- Input cable length: - Output cable length: - Max working current: 500mA\n- Power adapter voltage and current Input: AC (50/60Hz) 100V-240V;Output: DC5V/1A\n- Operating Temperature range: -15 to +55-degreesC\n- Operating Humidity range: 5 to 90% RH( No Condensation)\n1. Convert the HDMI signal into HDMI- fiber-coaxial and stereo;\n2. Support HDMI1.4b;\n3. Support HDCP1.4 and full compatibility down;\n\n5. Support for 2.1/5.1/By Pass audio selection;\n6. Support ARC audio back-pass function;\n7. Optimize HDMI signal, signal buffering, amplification, extension;\n8. Imported chip design, high compatibility, low power consumption, more stable.\n\nWhat's in the box\n1x HDMI Audio Extractor\n1x Power Adaptor, 2pin EU\n1x User manual\n\nOptional Items\n\nToslink SPDIF Optical Cable 2m [click here]
