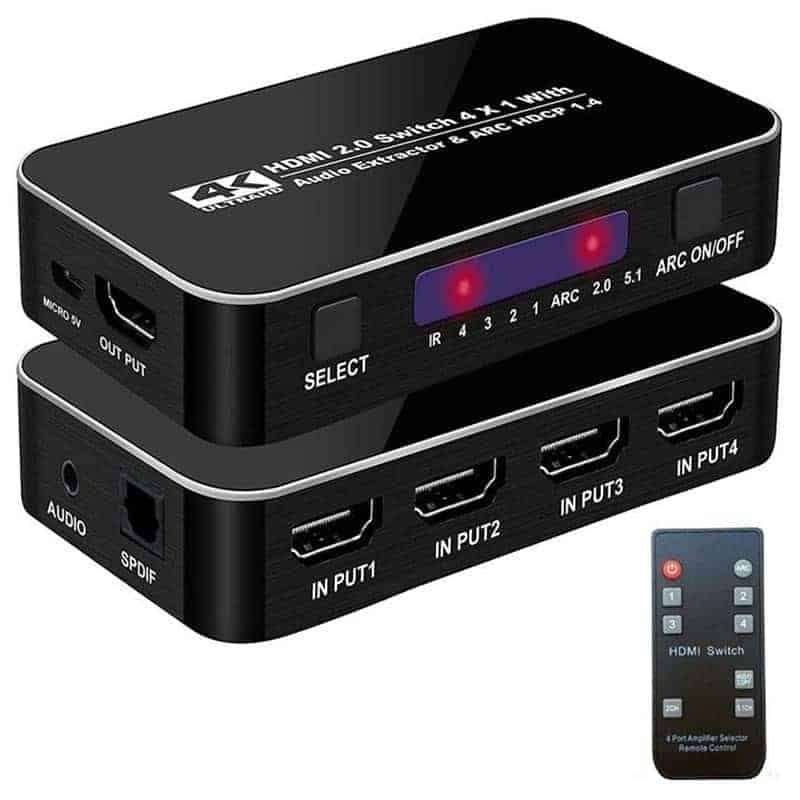

HDMI Audio Extractor + Switch 4K DAC | Digital SPDIF Optical | Analogue Stereo | 4 Port

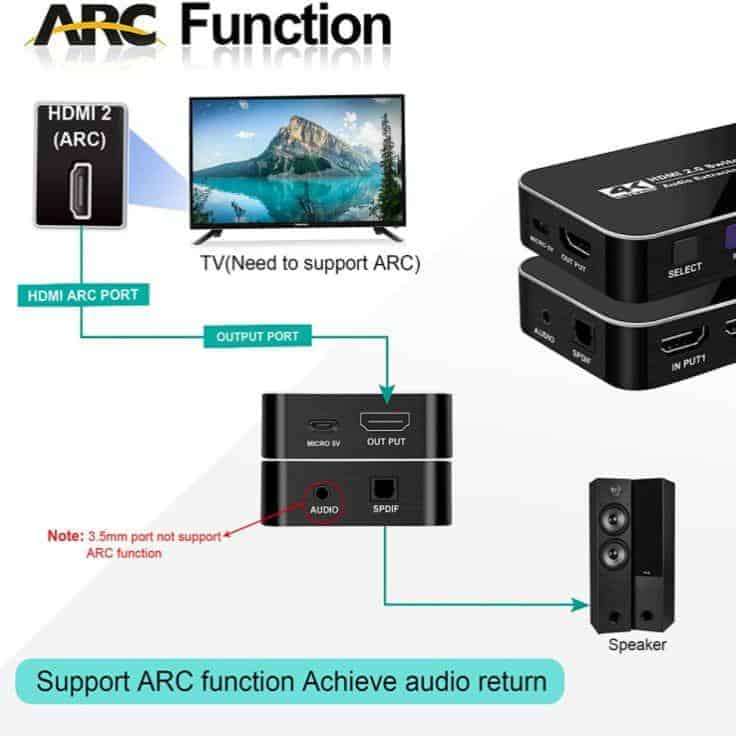

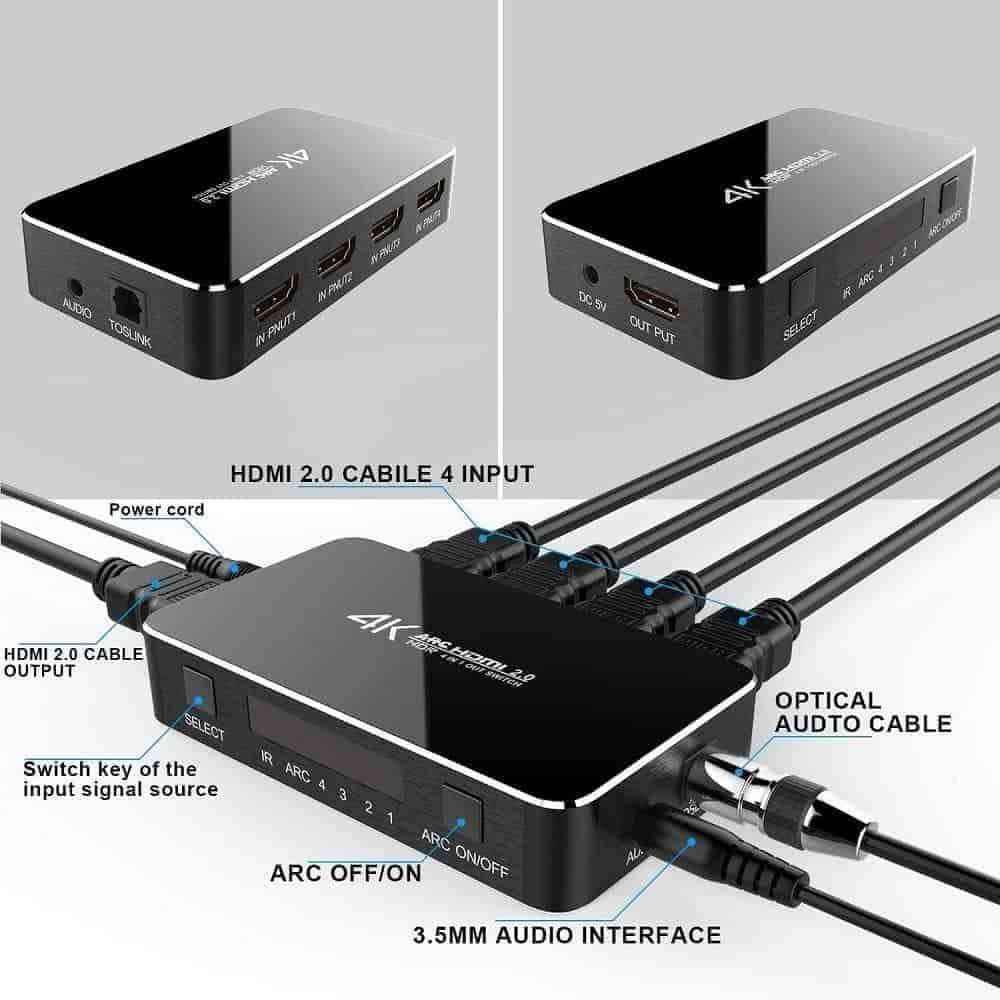

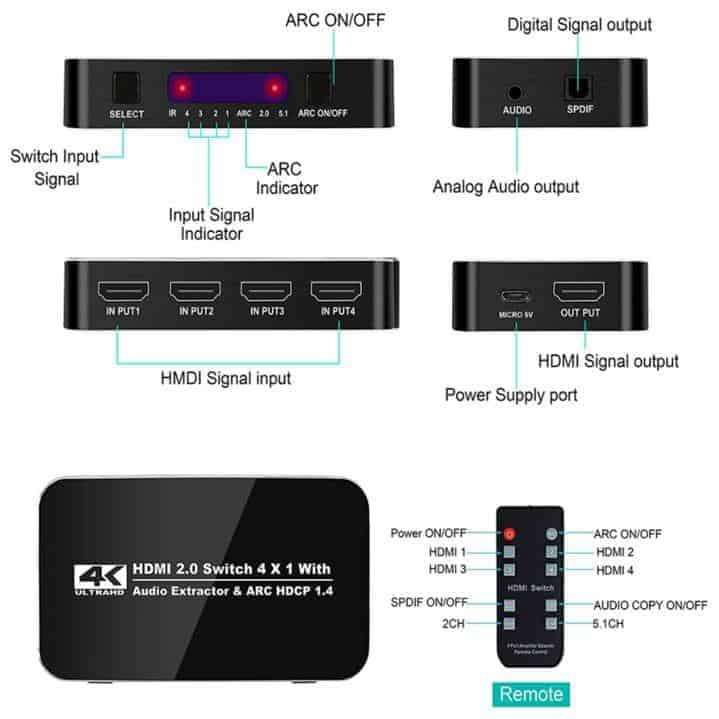

This cost effective HDMI Switch + Audio Extractor Digital SPDIF Optical Analogue Stereo will extract 2x audio formats (1x analog and 1x digital) from any 1 of 4 HDMI signal inputs and supports ARC.\n\n \n\nThis device connects 'inline' between your HDMI Source devices (e.g. Decoder, Gaming Console, PC or Media Box etc.) and your TV or Monitor and will seamlessly ﾑpass-throughﾒ any HDMI signal up to a resolution of 4Kx2K/UHD. Pass-through is achieved via HDMI IN (select 1 of 4) and HDMI OUT.\n\n \n\nAudio Output Formats (refer additional product images for connections)\n

\n
1. Analog Audio: is via a 3.5mm Aux jack plug for connection to headphones, sound systems and amplifiers etc.
\n

\n

\n
• Supports L+R stereo
\n
• If you require the analog output to be RCA then you will require a 3.5mm jack plug to 2x female RCA cable
\n

\n \n

\n
2. Digital Optical SPDIF/ Toslink: is via optical connection.
\n

\n

\n
• Supports 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD
\n
• Need 1.5m Optical Cable search for ﾑToslink, SPDIF Optical Digital Audio Cable 1.5m, High End, Henrac Tech
\n
• Need 2m Optical Cable search for ﾑToslink, SPDIF Optical Digital Audio Cable 2.0m, High End, Henrac Tech
\n

\n \n\nFeatures :\n\n? Switches easily between up to four HDMI sources / players / gaming consoles.\n? Supports Blu-Ray 24/50/60 fps / HD-DVD / xvYCC / Playstation 3 / Multichoice HDPVR / XBOX 360 and other HDMI source devices on the market.\n? Supports switching of 3D content.\n? Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal.\n? Maintains high resolution video ﾖ beautiful, sharp HDTV resolutions up to 1080pand computer resolutions up to 1920 x 1080 are easily achieved.\n? HDMI Built-In Equalizer to allow longer HDMI cables lengths up to 15 Meter.\n? HDCP Compliant to allow switching of HDCP devices.\n? Discrete IR remote (included).\n? Supports deep color 30bit, 36bit.\n? Digital audio format, as DTS-HD/Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD.\n? Support signal retiming.\n? Support input up to 15metres AWG24 HDMI 1.3/1.4 standard cable length.\n? Output up to 15metres AWG24 cable length.\n? Inputs can be switched with the IR remote control can also can be controlled by button.\n? It can smartly jump over those input sources which are not connected.\n? With the smart function of memory, it can come back to the last status / input when restarted or reconnected.\n? No loss of quality.\n? Installs in minutes.\n? Need DC5V / 0.8A power supply. Included with purchase.\n\n \n\nSpecifications :\n\nﾖ HDMI version : HDMI 1.4\nﾖ HDCP version : HDCP1.2\nﾖ Frames per Second : 24/50/60 fps.\nﾖ Resolutions: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i\nﾖ Support video color format : 24bit / 30-bit / 36-bit deep color, HDR\nﾖ Support audio input format : DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD\nﾖ Audio Output : HDMI same as input, Optical Dolby Digital / Digital PCM 48Khz / Dolby Digital 5.1 / DTS 3/2 via Toslink Optical port. If the source device / player detects the device incorrectly a forced Dolby Digital 5.1 output via Optical Digital Output can be done by pressing the Switch button for 8 seconds and then releasing it to force DD 5.1 or DTS 3/2 from optical output. This needs only to be done once and will need to be done if the switch has been powered-off\nﾖ Max transmission bandwidth : 10.2Gbps\nﾖ Input/Output TMDS signal : 0.5~1.5Volts p-p\nﾖ Input/Output DDC signal : 5Volts p-p (TTL)\nﾖ Input cable distance : ?15m HDMI AWG24\nﾖ Output cable distance : ?15m AWG24 HDMI 1.3 standard cable\nﾖ Max working current : 800mA\nﾖ Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 0.8A\nﾖ Operating Temperature range : (-15 to +55?)\nﾖ Operating Humidity range : 5 to 90%RH (No Condensation)\nﾖ Dimension (L x W x H) : 16.5 x 6.5 x 2.6 cm\n\n \n\nWhatﾒs in the Box?\n

\n

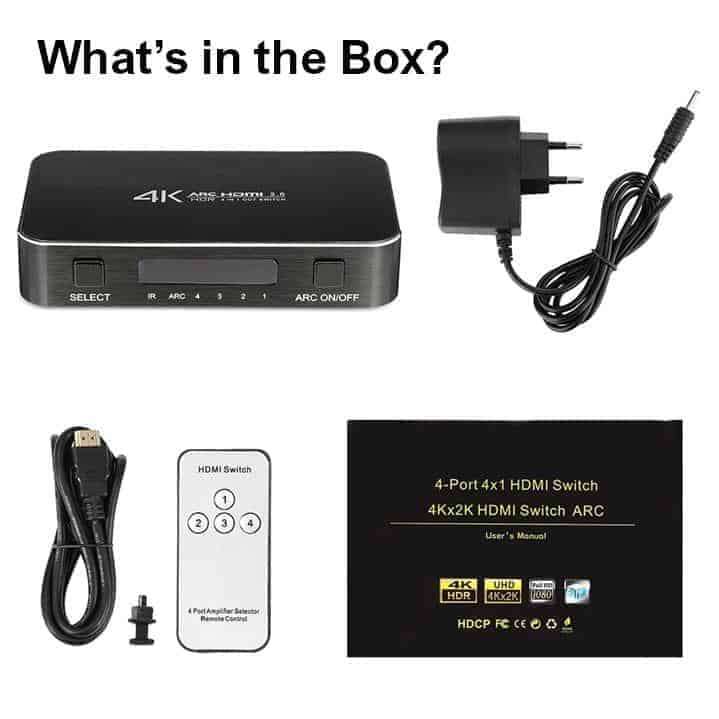

• 1x HDMI 4W Switch Audio Extractor
\n
• 1x IR Remote Control (Cr2025 battery not incl.)
\n
• 1x Power Adaptor, 2pin EU
\n
• 1x User manual
