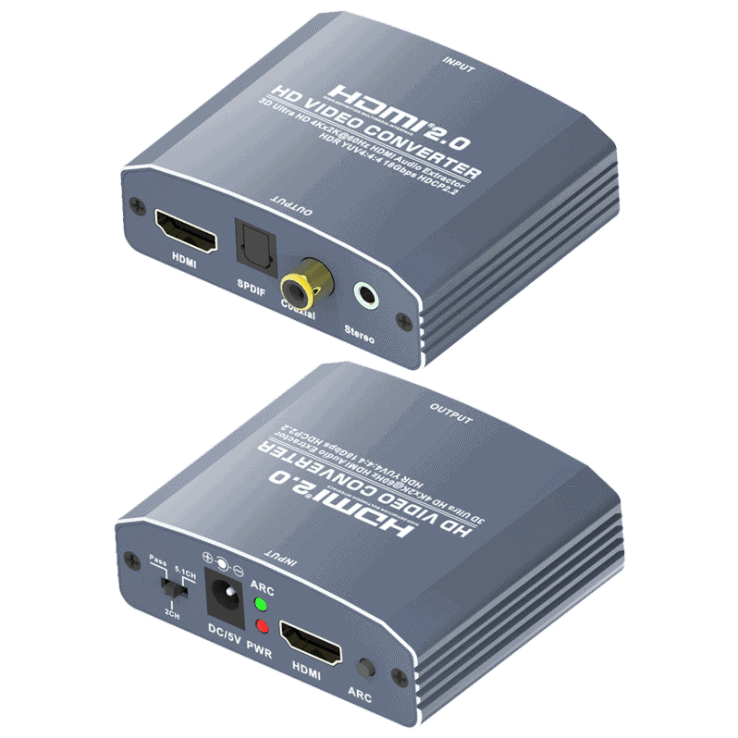

This Audio Extractor will seamlessly pass-through any 4Kx2K Ultra HD HDMI signal (HDMI in/out) and extract the audio. This device connects 'inline' between your HDMI Source devices (e.g. Xox, PS, Decoder, TV Box) and your TV or Monitor - HDMI to HDMI
Digital Audio Output
- SPDIF / Toslink via Optical female Out
- Audio Formats 2.1ch | 5.1ch | DTS-HD | Dolby-true HD | LPCM7.| DTS/Dolby-AC3/DSD
Analog Audio Output:
- Stereo Analogue AV via 3.5mm Jack plug (L+R) female
Full Specifications
- HDMI resolution: 4k2k/3D /1080p/1080i/720p/576p/576i/480p/480i
- Support video colour format: 24bit deep colour 30bit, 36bit, 3D
- Max bandwidth: 340MHz
- Max band rate: 10.2Gbps
- Input / Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input / Output DDC signal: 5Volts p-p(TTL)
- Input cable length: - Output cable length: - Max working current: 500mA
- Power adapter voltage and current Input: AC (50/60Hz) 100V-240V;Output: DC5V/1A
- Operating Temperature range: -15 to +55-degreesC
- Operating Humidity range: 5 to 90% RH( No Condensation)
- Device dimensions: 84.5L x 61.8W x 21H(mm)
- Weight: 135g
What's in the box
1x HDMI Audio Extractor
1x Power Adaptor, 2pin EU
1x User manual
Optional Items
Toslink SPDIF Optical Cable 2m [click here]
