Specifications:
HDCP Version: HDCP1.4
HDMI version: HDMI1.4b
HDMI resolution: 2160p@30Hz/1080 p@50/60 Hz/1080 i/720 p/1576 i/480 p/480 i
Support video color format: 24-bit/dark color 30-bit, 36-bit
Audio output: SPDIF 3.5mm audio
MAX Bandwidth: 340MHz
Export Rate: 10.2Gbps
Input and output TMDS signal: 0.5-1.5 volt p-p (TTL)
Input and output DDC signal: 5-volt p-p (TTL)
Input cable distance: <=7m AWG26 standard cable HDMI
Output cable distance: <=8m AWG26 standard cable HDMI
Maximum work Current: 500mA
Working voltage: dc 5V
Operating temperature range: (-15 to 55ᆪC)
Operating humidity range: 5% to 90%RH (no condensation)
Features:

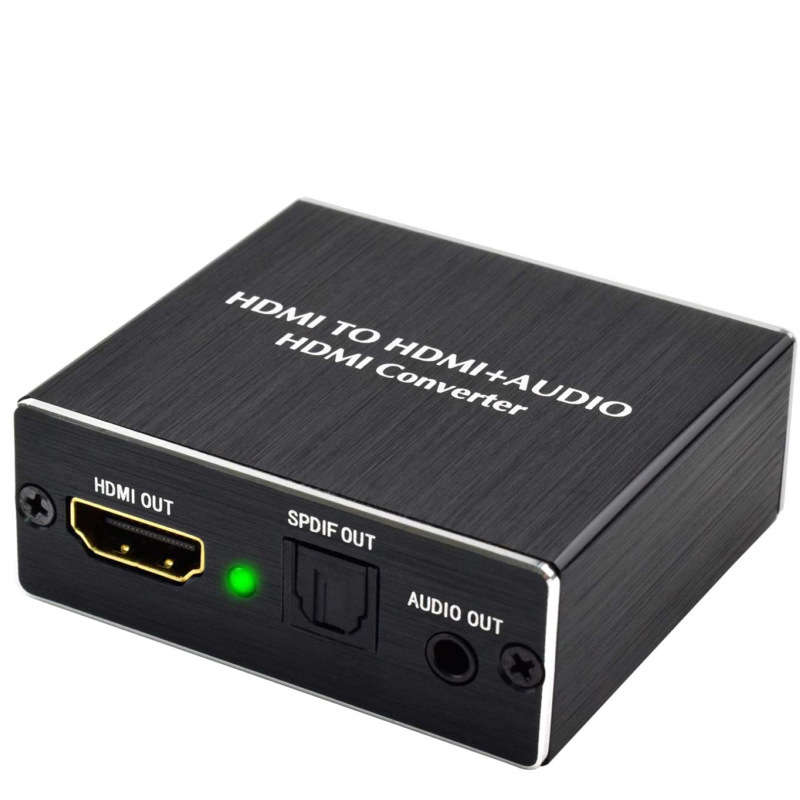

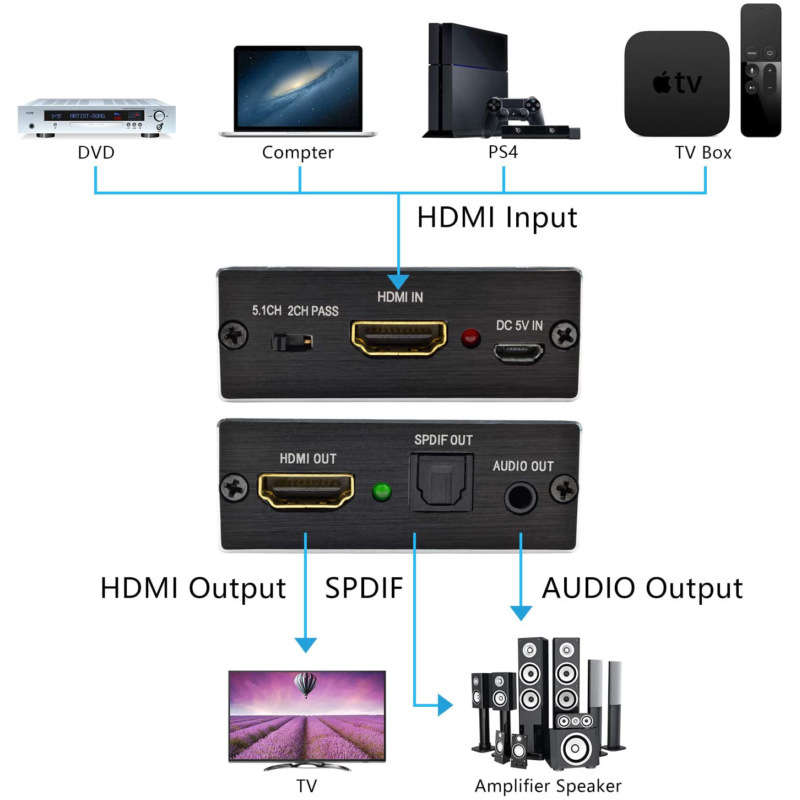

Convert 1 HDMI input to 1 HDMI 1 audio (SPDIF) output 3.5mm analog audio output
Input resolution: up to 3840x2160@30 Hz; 4096x2160@30 Hz
HDMI realizes the synchronous separation of audio signals. There are three audio mode options: PASS/2.0CH/5.1CH
The LED indicator clearly indicates the working status of the extractor

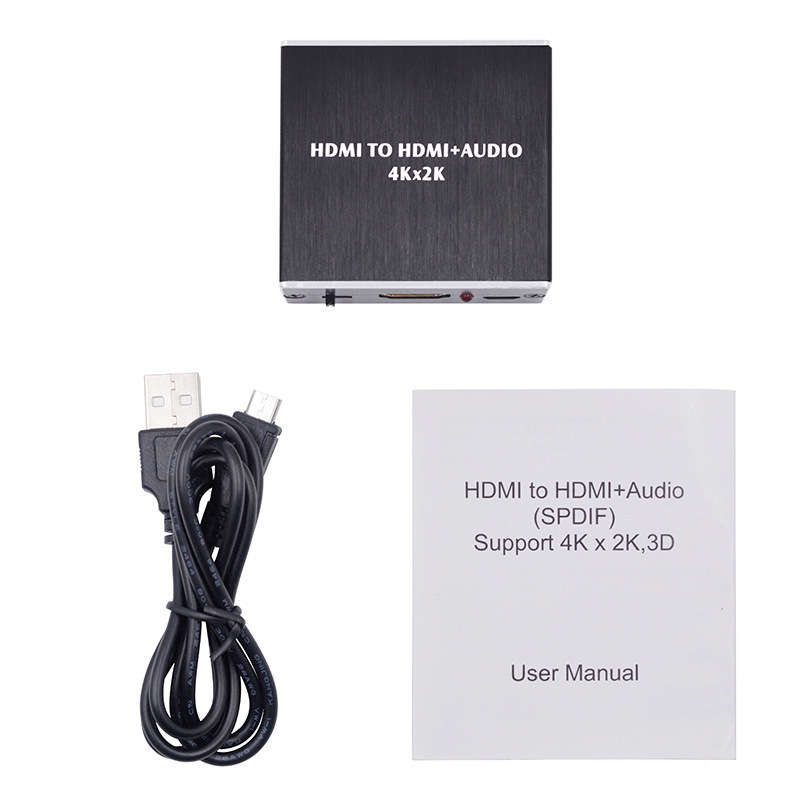

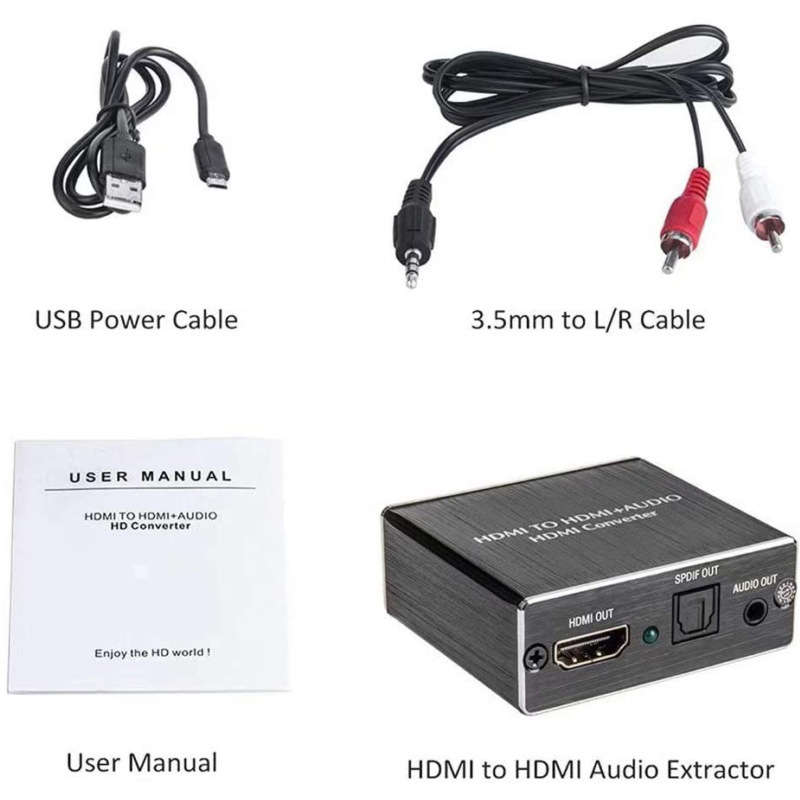

Package Included:
1 xHDMI Audio Splitter
1 x USB Power Supply Line
1 x User`s Manual
