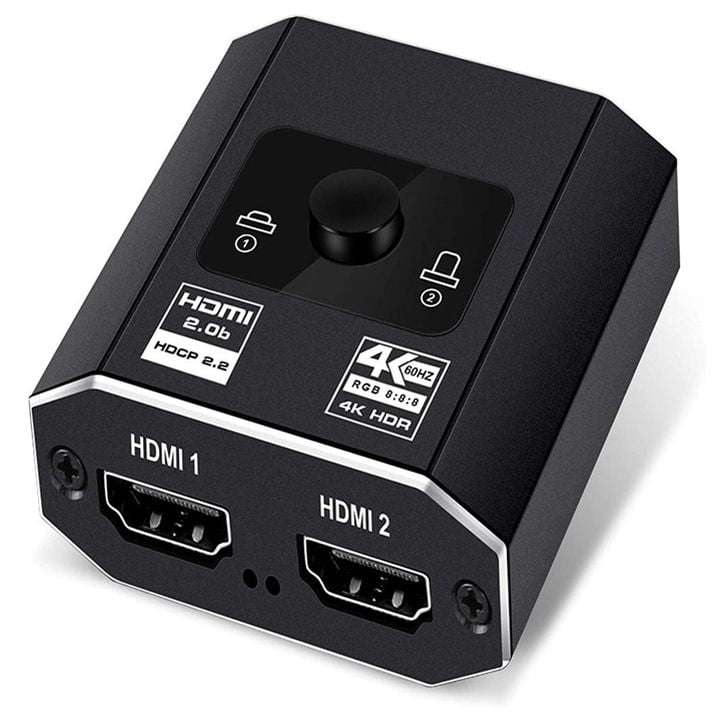

HDMI Bi-Directional Switch (2IN->1OUT) or (1IN->1 of 2OUT), 4K HDCP2.2

Best Spec, Superior Quality - 3 Port HDMI Bi-Direction device can function as either a 2 Port Switch or Toggle between any 1 of 2 displays. Compact design.

This unit is the very latest specification and supports all versions up to and including HDMI v2.0 and DHCP2.2 pass-through ensuring it is both 'future-proof' and will work across all your latest tech.

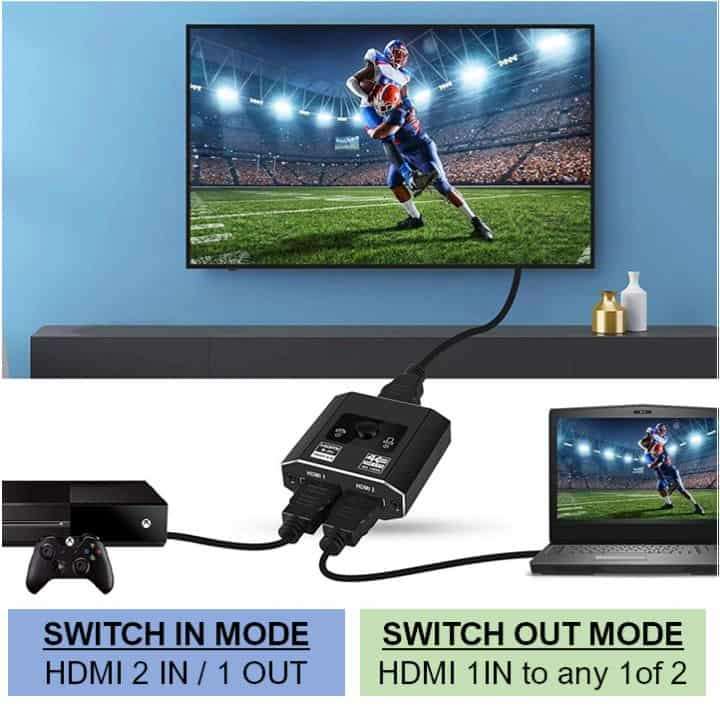

Unit will 'auto-detect' which mode to use depend on the HDMI source connection which will also provide power to the unit see additional images for details.

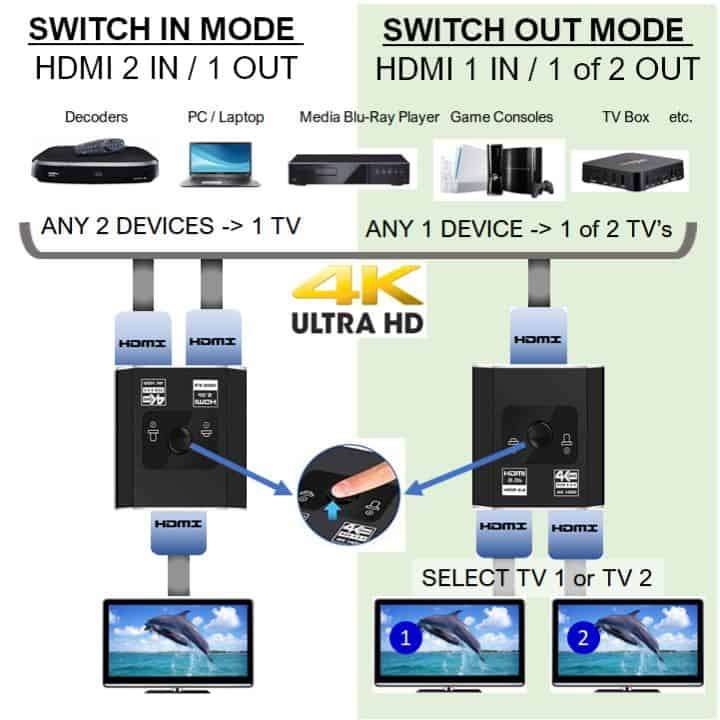

HDMI IN-Switch Mode: (2 Inputs/1 Output). Manual toggle between input 1 & 2 to 1 display.

Purpose, If you have 2x HDMI source devices (decoder, tv box, PC etc.) but your TV, monitor or projector only has 1 input ports available.

HDMI OUT-Switch Mode: (1 Input to any 1 of 2 Outputs). Manual toggle between output 1 & 2.

Purpose, Switch your HDMI source device (decoder, tv box, PC etc.) to any on of 2 displays. equal images. Often used for projectors, monitors or HDMI CAT extenders.

This unit is NOT A SPLITTER and cannot output to 2 identical screens simultaneously.

If you require multiple independent screens from 1 HDMI source search for 'Multiple Display Expander Adaptor | 3 Separate Screens | USB C to 2 HDMI'.

Features

Supports HDMI 2.0 (similar devices will only support up to HDMI 1.4)

Supports HDCP 2.2 pass-through

Supports Long HDMI Cable: 10m Input & Output AWG26 HDMI standard cable

No External Power source needed:

Specifications

Power Consumption: 15mA (via HDMI source device cable)

Resolutions Supported: 3D, 2160p 4Kx2K UHD / 1080P / 1080i / 720P/ 576P / 576i / 480P / 480i

Device Dimensions: 43 x 50 x 20 (L x W x H) in mm

What's in the box

1x HDMI Bi-Direction Switch
