HDMI CAT5/6 EXTENDER (50M - 1080P)

HDMI CAT5/6 EXTENDER (50M - 1080P)

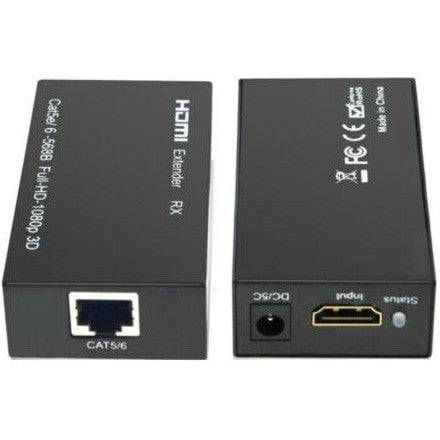

HDMI Cat5/6 Extender (50m - 1080p)
Extend your 1080p video transmission up to fifty meters using this HDMI extender kit. Utilising a standard CAT5e/6 cable this kit allows you to free your video installation from the limits of HDMI cable transmission length by using cost-effective and easily installed CAT5e/6 cable.

Product features:

Plug & Play. No user setup required.
One CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Transmission distance can be up to 50 meters for 1080p using CAT-6 Cable.
Auto-adjustment of feedback, equalization and amplification.
Support highest video resolution 1080p.
Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
Supports 8bits per channel (24bit all channel) deep color.
Supports uncompressed 2 channel audio such as LPCM
Supports 3D

Specifications:
InterfacesSender unit: 1x HDMI Female (input), 1x RJ-45 connector (output)
Receiver unit: 1x RJ-45 connector (input), 1x HDMI Female (output)
Video bandwidth1.65Gbps / 165MHz
Supported resolutions480i, 576i, 1080i, 480p, 576p, 720p, 1080p
Maximum cable length50m (CAT6) for 1080p
Operating temperature0°-70°C
External power supply5V DC
Power consumption (Max.)5W
Package contentsSender unit
Receiver unit
4x "L" shape nogs
2x Power Supply
User manual
