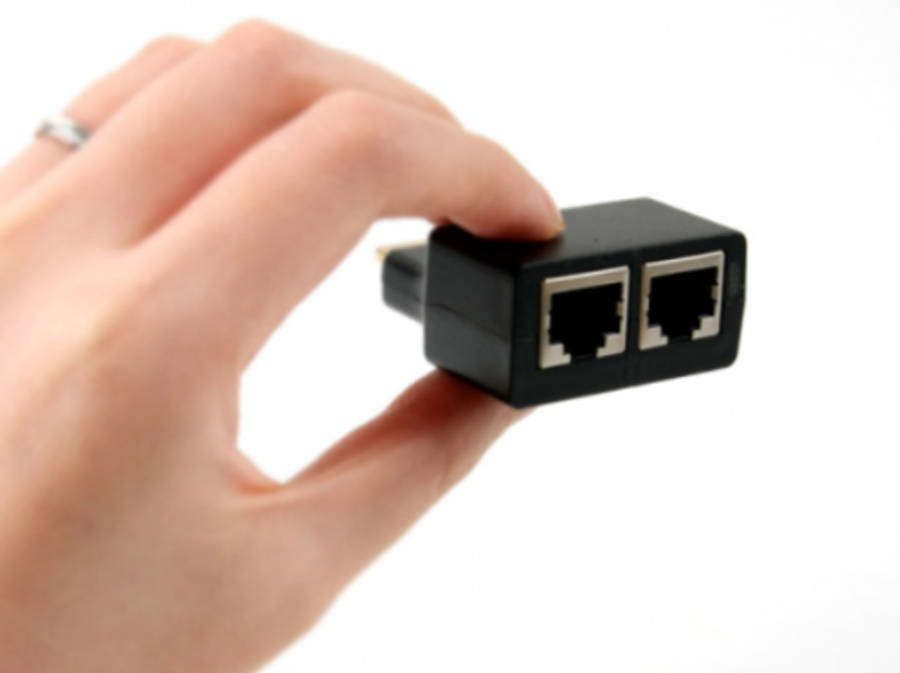

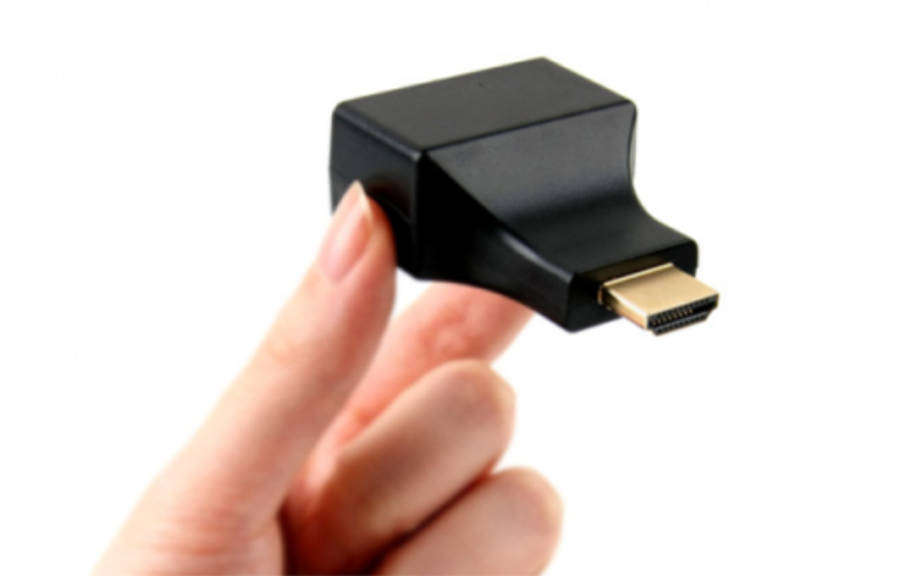

HDMI EXTENDER - 30metres distance
This type of HDMI Extender from CAT-5e / 6 uses two pieces CAT-5e / 6 cables to extend the HDTV DISPLAY up to 30 meters for 1080p. It not only breaks the limit of
The HDMI cable transmission length, but also CAT-5e / 6 has more flexibility and convenience in cable construction. Both the transmitters and receivers are equipped with fixed
HDMI cable, which can reduce the consumer cost and time for adjustment. It is capable of supporting DVI (Digital Visual Interface) equipment when used with a HDMI DVI
Adapter, greater flexibility and options when integrating multiple home theater components.
This product offers solutions for residential consumers: HDTV retail and website show, HDTV, STUB, DVD and projector factories, noise, space and security issues, data
, information distribution, conference room presentation, school and corporate training environment.

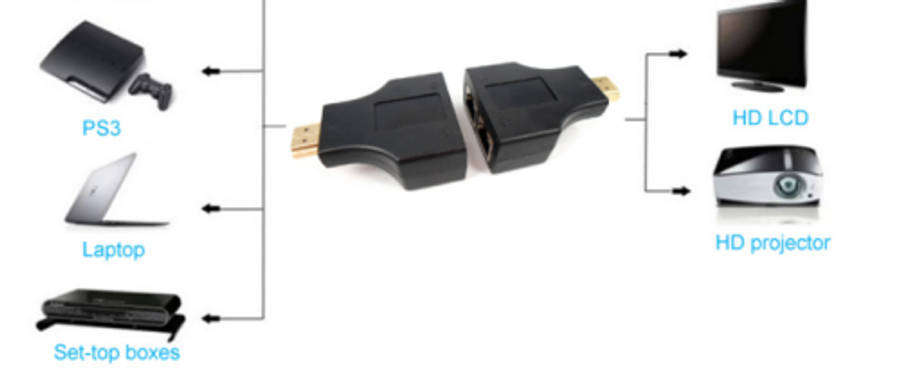

Connection and operation:
1. Plug fixed HDMI cable of the transmitter in the HDMI input source such as: HD-DVD, PS3, STB etc.
2. Connect two CAT-5e / 6 cables to both the output of the transmitter and the input of the receiver.
3. Plug fixed HDMI cable of the receiver into the HDMI display (such as: HD-LCD, HD-DLP)
Features:
This HDMI Extender has many features that make it possible to perform in a superior way. Among those properties you will find:
* a couple as a full functional module, no need of adjustment.
* CAT-5e / 6 cable can substitute HDMI cable to achieve remote transmission.
* Follow the standard of the IEEE-568B.
* Transmission distance up to 30 meters for 1080p with Cat-6 cable.
* compact size.
* Signaling rater up to 1.65Gbps supporting the 1080p display.
* HDCP compliant.
