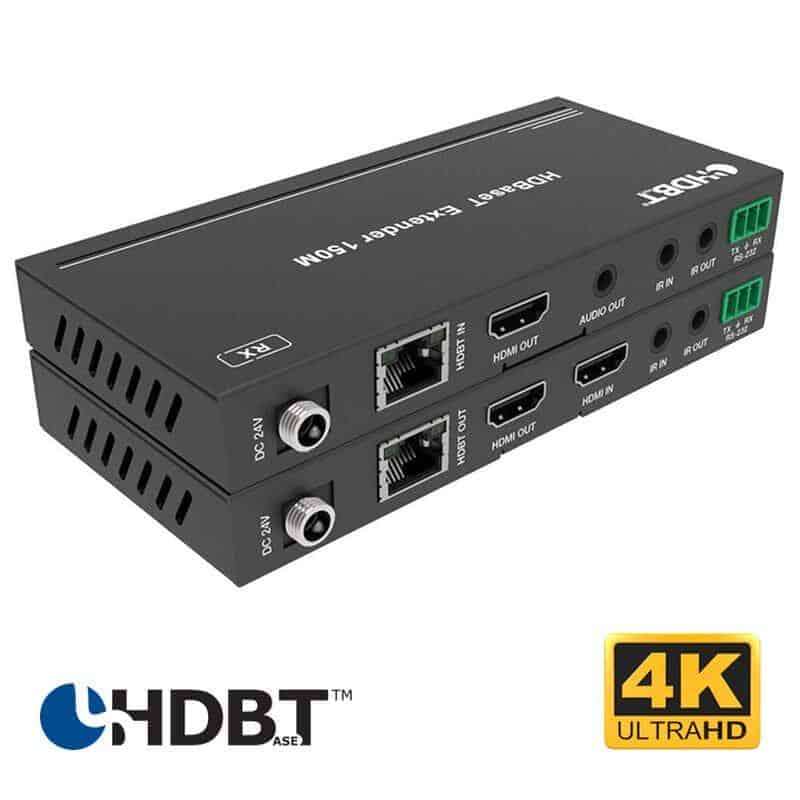

This latest generation (just released) 18Gbps HDMI Extender can extend high definition video / audio signals1 50 meters for 1080P signal / 120 meters for 4K2K signal via single CAT5e/6 cable (a high quality solid copper cable is recommended for long lengths). Be 'future proof' with this best in class 4K Ultra HD HDMI Extender.
To view our Full range of 'HDMI Extender Products' [click here]

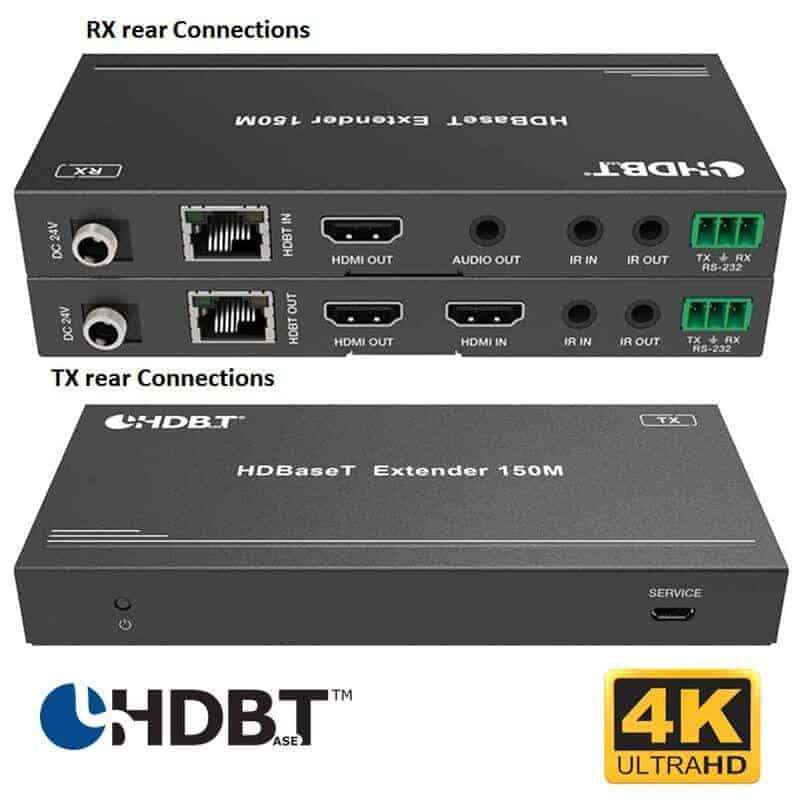

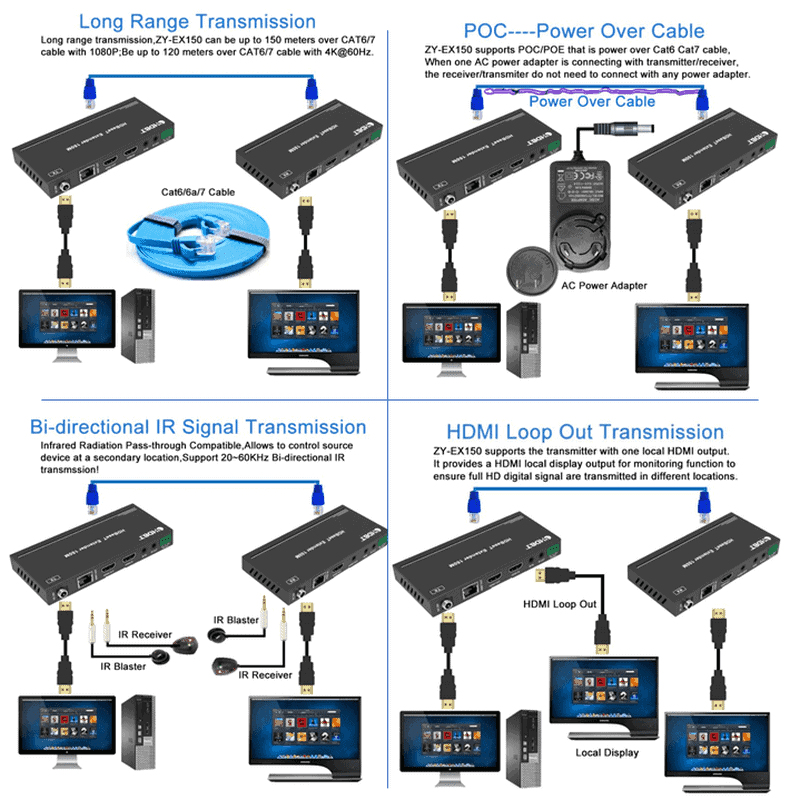

It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. The TX unit has a built-in splitter meaning it has has both an HDMI input and output. It also supports de-embedded audio for L/R audio output and PoC (POE) function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control of the HDMI source device e.g Decoder or TV Box etc. from the extended location.

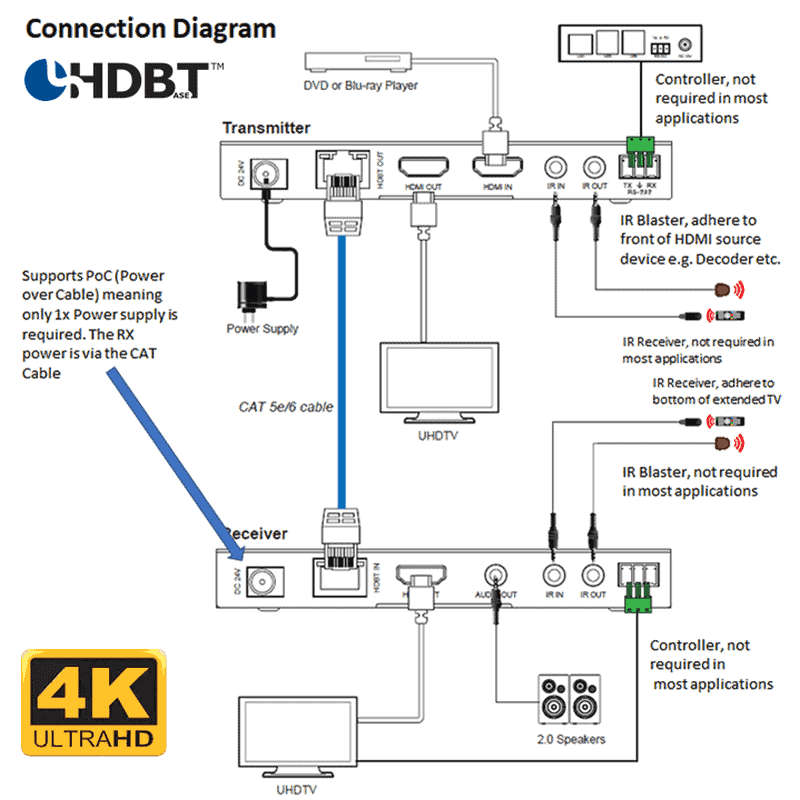

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
What is HDBaseT (also HDBT)
HDBaseT is the global standard for the distribution of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single cable, for up to 100 m/328 ft. HDBaseT eliminates cable clutter without compromising performance or high quality. In short, HDBaseT is simply the best quality chipset for extending HDMI signals.
CAT5e/6 cable is T-568B straight through - see internet for connection details
Technical Specifications (for more detail DL the manual below)
- HDCP Compliance: HDCP 2.2 / HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolution: 4K2K 50/60Hz 4:4:4
- 4K2K 50/60Hz 4:2:2
- 4K2K 50/60Hz 4:2:0
- 4K2K 30Hz 4:4:4
- 1080p, 1080i, 720p, 720i, 480p, 480i
- All HDMI 3D TV formats
- Colour Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Colour Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
- 8-bit (4K60Hz 4:4:4 )
- HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby
- TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTSDTS HD-HRA, DTS-X
- L/R Audio Formats PCM 2.0
- Dimensions: 140mm [W] x 65mm [D] x 18mm [H] Transmitter / Receiver
Download the Product manual [click here]
What's in the Box?
- 1x 18Gbps HDMI over HDBaseT Extender (Transmitter)
- 1x 18Gbps HDMI over HDBaseT Extender (Receiver)
- 1x IR Blaster cable (1.5 meters)
- 1x 20~60KHz IR Receiver cable (1.5 meters)
- 4x Mounting Ear
- 2x 3-pin Phoenix connector
- 1x 24V/1A Locking Power adapter
- 1x User Manual
