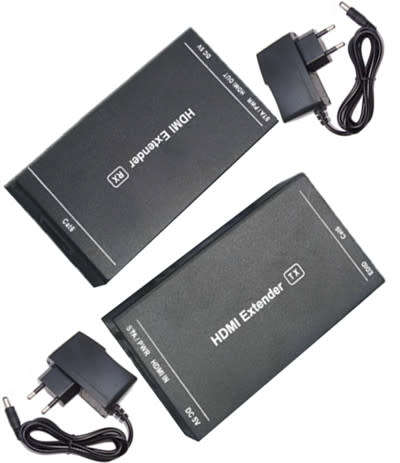

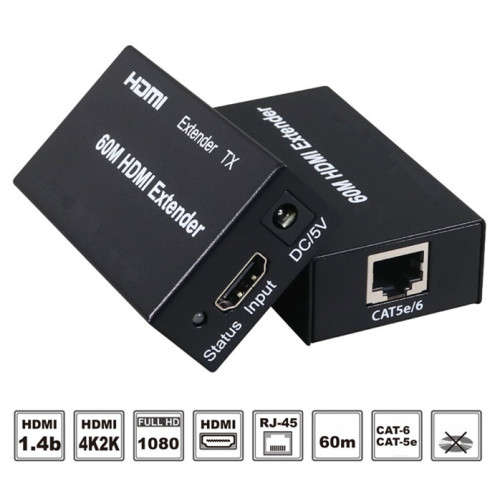

HDMI Extender 60m HDMI Transmitter Receiver over Cat 5e/6 RJ45 Single Cable Ethernet Converter

HDMI Extender 60m HDMI Transmitter Receiver over Cat 5e/6 RJ45 Single Cable Ethernet Converter

ￂﾠ

The Extender uses single a Cat-5E or Cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, The Extender is designed to supply for long distance transmission with high definition signal.
Our devices offer solutions for noise,space and security concerns,data center control, information distribution,conference room presentation, school and corporate training environments.
FEATURES
Support HDMI 1.4a
Support 3D
Support highest video resolution 1080p/60Hz,4K@30Hz
Support 1.5Gbps data rate and tmds clock up to 148.5MHzl Support 8 bit deep color
Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.
Install in minutes

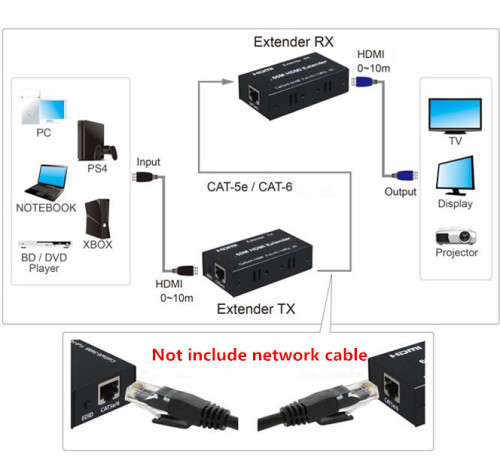

Operating and Connecting
1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters
3. Connect TX and RX Extender via single cat 5E/ 6 cable , the max distance is 60 meters
4. Pls insert the IR RX cables and IR TX cables into the ports of IR RX and IR TX on Transmitter and Receiver
5. Connect 5V power supply to the TX and RX.
6. LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
SPECIFICATIONS:
Length of CAT-6/CAT-5E cable between RX and TX .Up to 60 meters
HDMI Input 24/50/60fs/4k/1080p/1080i/720p/576p/576i/480p/480i
Support audio DTS/Dolby/DSD
HDMI Output 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth 148.5MHz
Max baud rate 1.5 Gbps
Input video signalￂﾠ 0.5~1.5Volts p-p
Output DDC signalￂﾠ 5Volts p-p (TT1L)
Input HDMI cable distance le10m AWG26 HDMI standard cable
Output HDMI cable distanceￂﾠ le15m AWG26 HDMI standard cable
TX Max working current 510mA
RX Max working current 100mA
Power adapter format Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +55)
Operating Humidity range 5 to 90%RH (No Condensation)
The Package includes:
1. TX Extender x 1pcs
ￂﾠ ￂﾠ RX Extender x 1 pcs
2. DC 5V Power adapter x 2pcs
3. User Manual
