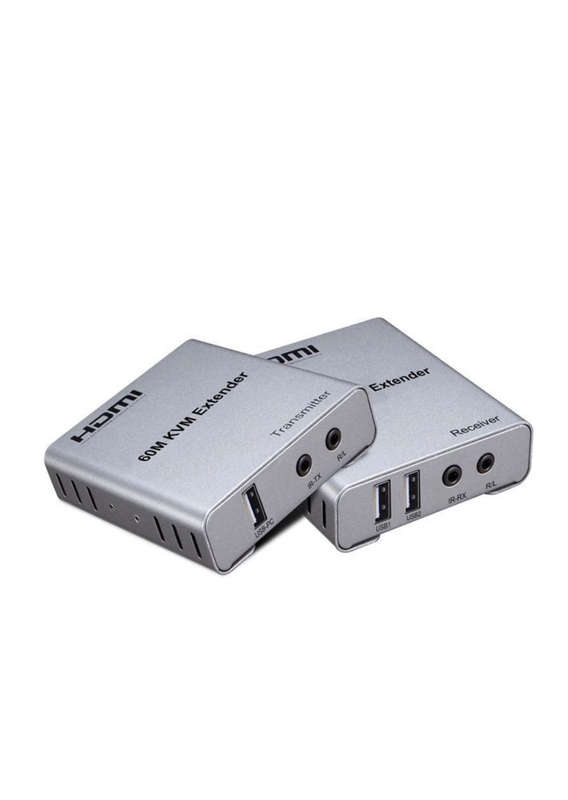

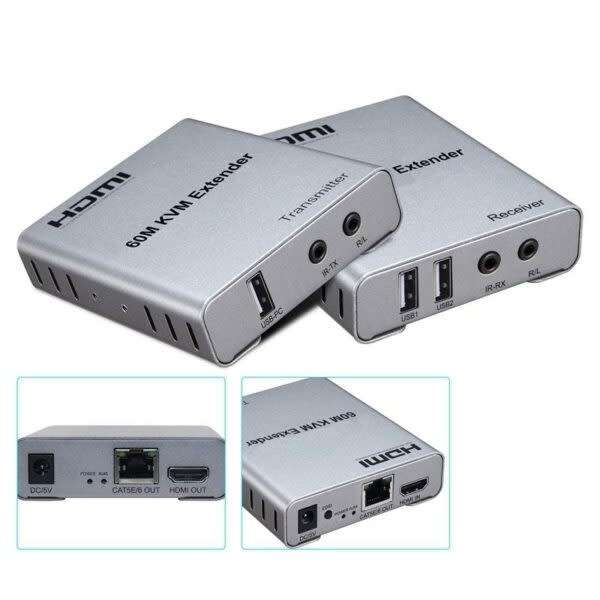

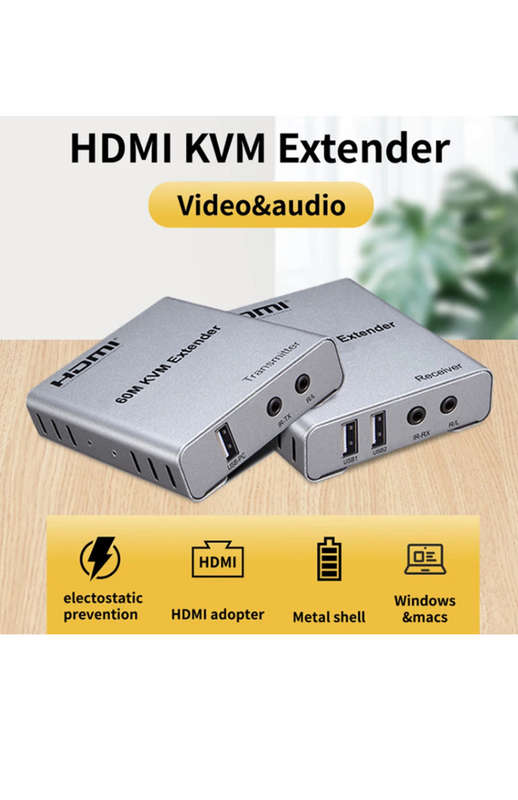

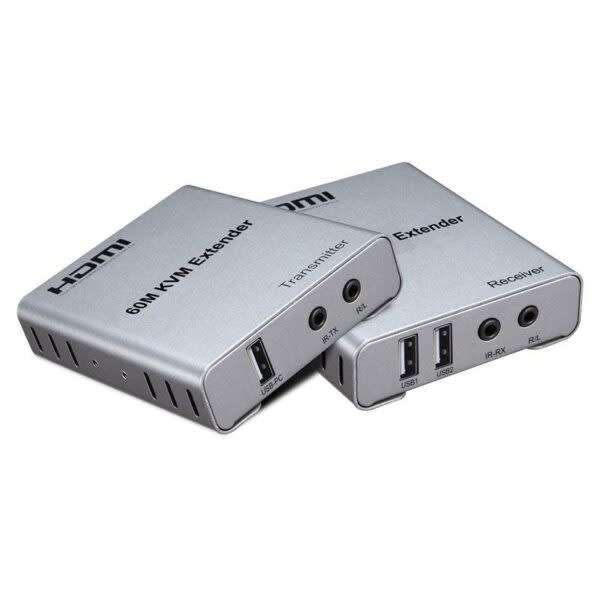

Hdmi Extender 60M Kvm Single Network Cable Transmits 1080P/60Hz Hd Signal Extender + Audio

Supports the highest resolution up to 1080P/60Hz. 60M long-distance transmission. Both the transmitter and receiver support 3.5MM left and right channel audio output.

-Low power consumption, low temperature, high safety. Support infrared IR control. Support USB mouse and keyboard extension.

Product name: KVM single network extender. CAT5e or CAT6 cable length between the receiving end and the transmitting end: up to 60 meters.

-HDMI input: 1080p/1080i/720p/576p/576i/480p/480i

-HDMI output: 1080p/1080i/720p/576p/576i/480p/480i

-Maximum transmission bandwidth: 150MHz

-Maximum transmission rate: 4.5Gbps

-Input video signal: 0.5~1.5Volts p-p

-Output DDC signal: 5Volts p-p (TTL)

-Input HDMI cable length: less than or equal to 10m AWG26 standard HDMI cable

-Output HDMI cable length: less than or equal to 15m AWG26 standard HDMI cable

-Maximum working current TX: 300mA

-Maximum working current RX: 300mA

-Power specification: Input: AC (50Hz, 60Hz) 100V-240V

-Output: DC 5V/1A

-Operating temperature range: (-15 to +45 Celsius)

-Operating humidity range: 5 to 90RH (no condensation)

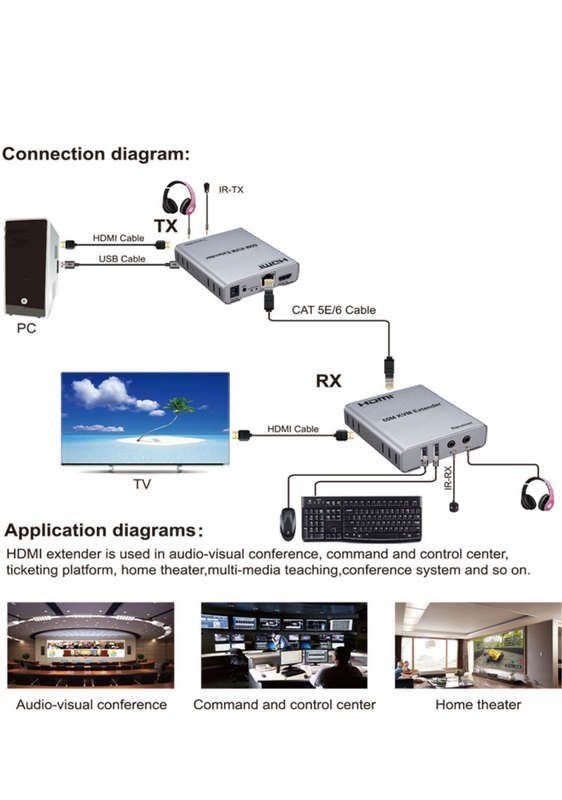

-Application scenarios: HDMI cable extenders are mostly used in audio-visual conferences, command and control centers, ticketing platforms, home theaters, multimedia teaching, conference systems, etc

Material: metal

Package Weight: 385g

Package Dimensions: 19cm x 13cm x 9cm

Package Includes:

1 x Extender Transmitter 8901835212403

1 x Extender Receiver

1 x IR Emission Line

1 x IR Receiving Line

2x Power Adapter

1 x Instruction Manual
