Introduction:

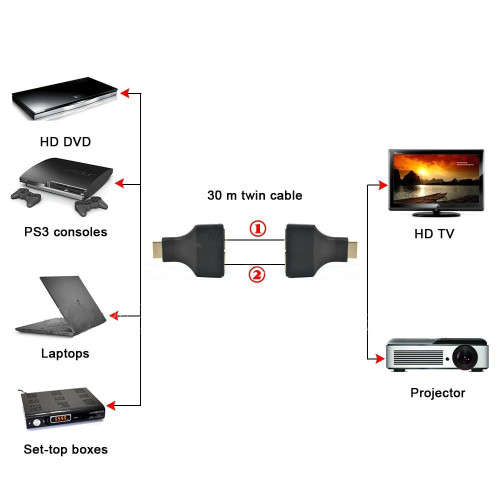

This kind of HDMI Extender by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable Transmission lenth, but also CAT-5e/6 has more flexibility and convenience in cable construction.
Features:
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
Follow the standard of IEEE-568B.
Maximum transmission rate 5.1Gbps
Transmission distance can be up to 30 meters for 1080P using CAT-6 Cable.
The maximum operating current 500MA
Power: AC (50 / 60Hz) 100V-240V input, DC 5V, 1A output
Working temperature: -40 ~ + 80 Celsius
Humidity: 5-90% RH
Audio: DTS-GD / Dolby-tureHD / LPCM7.1 / DTS / DSD
Input video signal: 0.5 ~ 1.5Volts P-P
Output DDC signal: 5Volts P-P (TTL)
One pair as a full functional module, no need of setting.
CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Support 1080P and 1080I, 3D
Support HDMI 1.3 and HDCP 1.2 & 1.1

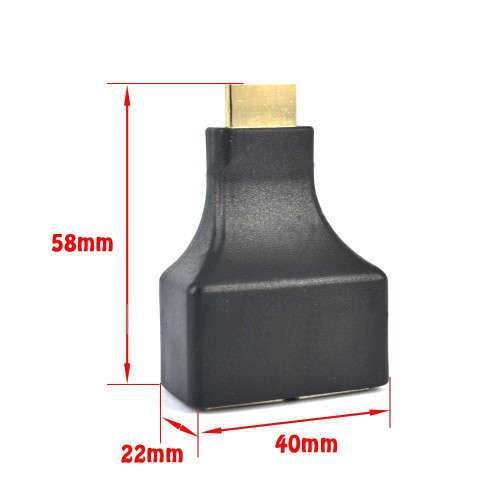

Compact size.
Signaling rates up to1.65Gbps in support of 1080P display.
HDCP compliant.
Packages:
1 pair x HDMI Extender
