HDMI EXTENDER OVER LAN 60M - HDME60M
HDMI Extender Over Single 60M UTP Cables With IR Control

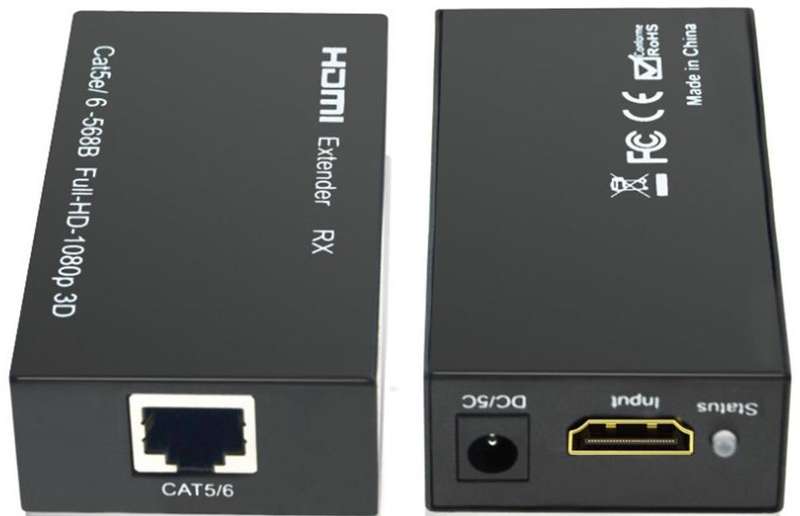

The Extender includes Two Units: Transmitting Unit and Receiving Unit
The Transmitting unit is used to Capture the HDMI Input with IR Signals
And carries the Signals via one cost effective Cat5e/6 Cable
The Receiving Unit is responsible for equalizing the Transmitted HDMI Signal and reconstructing IR control Signals
The Extender offers the most convenient solution for HDMI Extension Over a Single Cat5e/6 with long distance capability
And is the perfect solution for any Application
Package Contents
HDMI Transmitter: 1pcs
HDMI Receiver: 1pcs
Windband IR Tx Cable: 1pcs
Windband IR RX Cable 1pcs
5V1A DC Power Supply Adaptor: 1pcs
Features
Allows HDMI Audio/Video and IR Signals to be Transmitted Over a Single Cat5e/6 Cable
Support copy EDID from, Receiver Display or loop out Display
Allows for cascading via additional HDMI loop Out Port Support Power Over Cable unction
Transmission Range: Extends1080p Resolution up to 60m Over a Single Cat5e or Cat6 Cable
Works with HDMI and HDCP Compliant Devices
Supports up to1080p High Definition Resolution
Compact Design for an easy and Flexible Installation
Specifications
Video
Bandwidth: Single-Link 165Mhz
Audio Support: [4.95Gbps] 480i/480p/720p/1080i/1080p@60
Surround Sound (up to7.1 ch)or Stereo Digital Audio
Transmission Range: HD [1080p 24-bit color]-up to] 50m[164ft]
Input TMDS Signal 3.3 Volts
Input DDC Signal ESD: 5.0 Volts/P-P
Protection: Human Body Model: +/-8 kV (air-gap discharge)
+/-4kV (contact discharge) Type A19 Pin Female
HDMI Connector
RJ-45 Connector: WE/SS 8P8C
35mm Connector: (TX and RX) IR Receiver/R Blaster
MECHANICAL SPECS
Housing Metal enclosure Power Supply: (1)5V1A DC
Power Consumption: 1.5 Watts (TX);1.0 watts (RX) Operation Temperature 32-104°F
Storage Temperature : -4-140°F
Relative Humidity: 20-90%RH (no condensation)
