HDMI Extender Over Single UTP CAT6 Cable Support Dual IR Control Transmission Distance: 50m

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.

We urge you to please read shipping details before placing your order.

---------------------------------------

Introduction
1. The HDMI Extender over Single Cat5e/6 with IR extends high definition video and audio signals and IR at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management which allows and encourages source and display Handshake for seamless integration. With only one cost effective Cat5e/6 cable high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition the extender is also equipped with bi-directional IR pass-through which allows for source or display control.

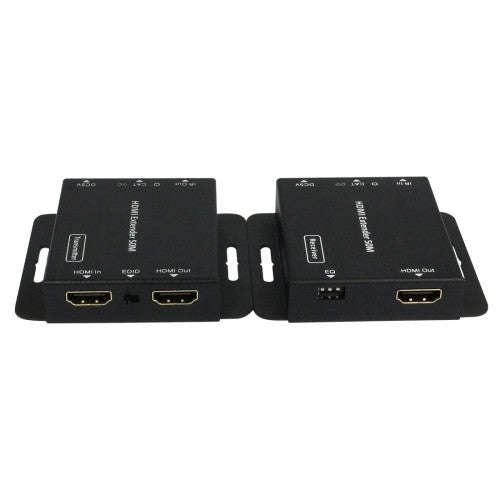

2. The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR control signals. The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability and is the perfect solution for any application.

Features
1. Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
2. Support copy EDID from receiver display or loop out display.
3. Allows for cascading via additional HDMI loop out port.
4. Support Power over cable function.
5. Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
6. Works with HDMI and HDCP compliant devices.
7. Supports up to 1080p High Definition resolution.
8. Compact design for an easy and flexible installation.

Specifications
1. Video Bandwidth: Single-link 165Mhz (4.95Gbps)
2. Video Support: 480i/480p/720p/1080i/1080p @60
3. Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
4. Transmission Range: HD (1080p 24-bit color) - up to 50m (164ft)
5. Input TMDS Signal: 3.3 volts
6. Input DDC Signal: 5.0 volts/P-P
7. ESD Protection: Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge)
8. HDMI connector: Type A 19 pin female
9. RJ-45 connector: WE/SS 8P8C
10. 3.5mm connector: (TX and RX) IR Receiver / IR Blaster

---------------------------------------
