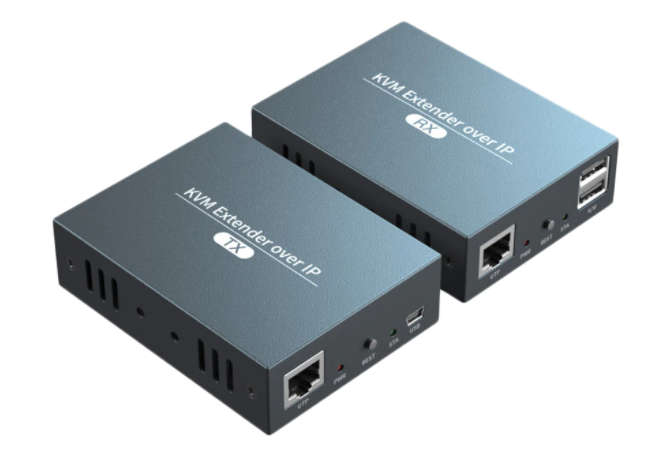

HDMI KVM Extender Transmitter + Receiver Kit (Up to 150m) Over Single Cat5e/6 Cable Bidirectional...

PRODUCT DESCRIPTION

ZY-DT237KM HDMI extender provides an extension of HDMI signals long distances over a Single CAT5e/6/7 cable. It supports high resolution up to 1920x1080@60Hz, Keyboard and mouse signal, and HDMI loop out transmission. The extender can use for a wide range of applications requiring long-distance transmission of high resolution with high quality by its good stability and powerful security.

• Transmission Distance: up to 200m over a single CAT5e CAT6 cable
• Video resolution:up to 480P,720P,1920x1080@30Hz,1920x1080@60Hz
• Audio sampling rate:32kHz, 44.1kHz, and 48kHz
• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD
• USB KVM function: Support keyboard and mouse remote control

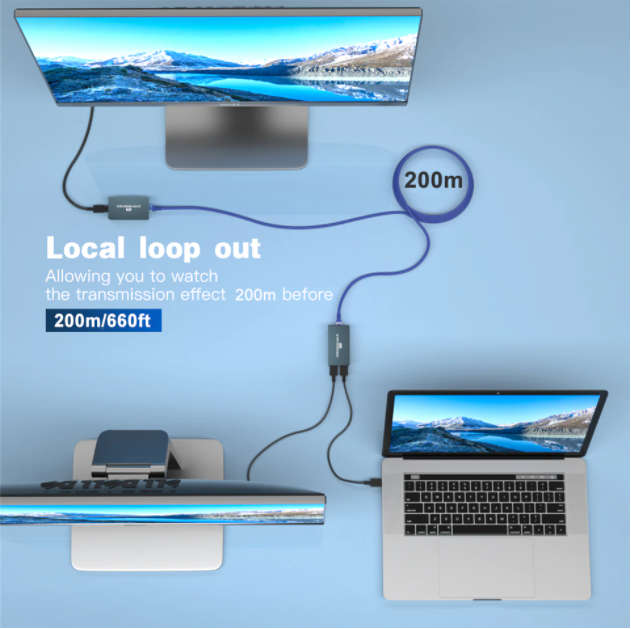

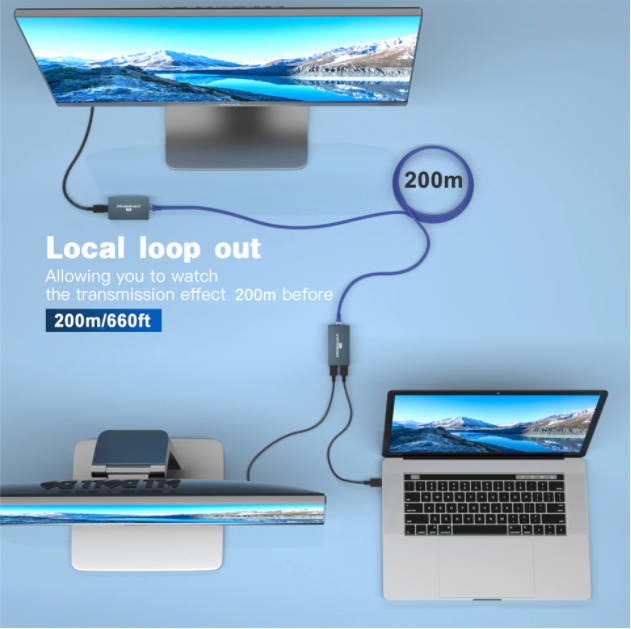

• HDMI Loop out The transmitter with one HDMI local output
• H.264 compressed Technology, less than 50ms delay

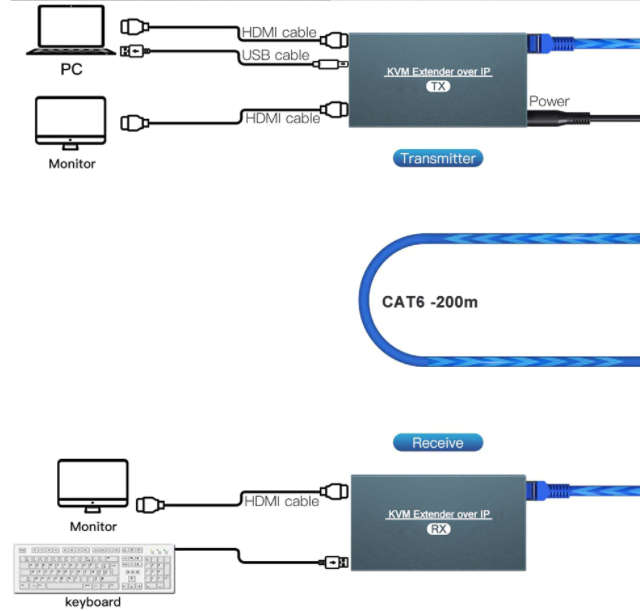

• Male to male: one TX to one RX application

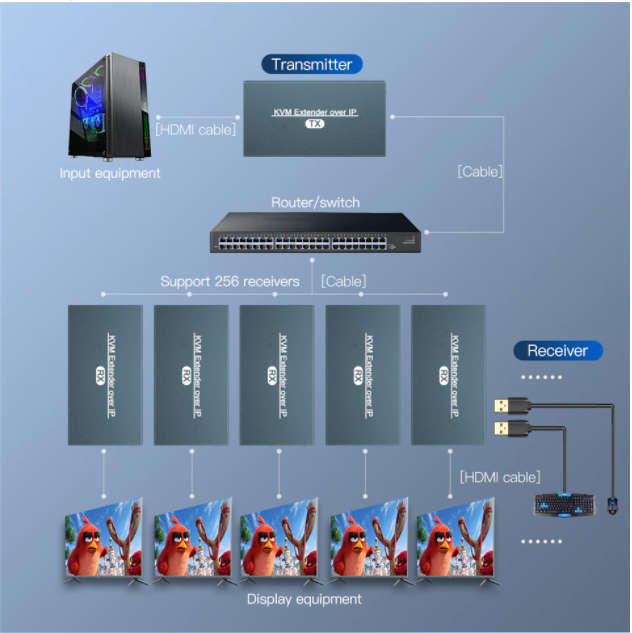

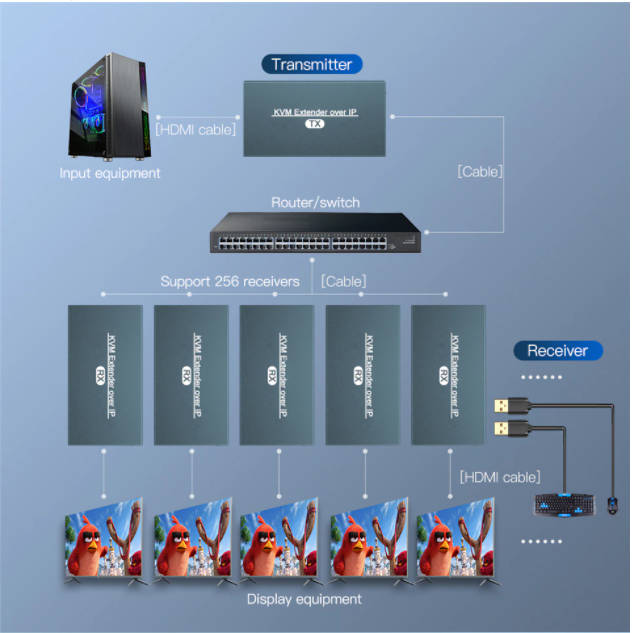

• Male to female: TCP/IP, one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router
• IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps
• Video standard: compliance with HDMI 1.3 and HDCP 1.2 standard
• Copy EDID function: match many kinds of display devices
• Built-in automatic adjustment system: make the image smooth, clear, and stable
• Built-in ESD protection systemmake transmission much safer. Perfect HDMI extension adapter for large homes, factories, construction sites, data control centers, etc; plug and play
• Simple to install, plug and play

PRODUCT SPECIFICATIONS

Video

• Standards----------HDMI 1.3; HDCP 1.2
• Maximum pixel clock------165MHz
• Maximum data rate-------6.75Gbps
• Resolution ------1920X1080P@60Hz
• Connector-----HDMI-A
• Impedance--------100

USB

• Interface-------PC: Type B USB Interface; connect to PC; K/M: connect USB Keyboard and Mouse
• USB signal----------HID Signal

UTP

• Interface-----RJ45
• Transmission distance--------CAT5:100m,CAT5:120m,CAT6:200m

Other

• Power supply-----The power adapter: DC 12V/1A
• Power dissipation------MAX 3W
• Temperature-------Operating: -5 ~ +70
• Humidity-------Operating: 5% ~ 90%
• Dimension-------100x60x25mm

Package:

• 1x HDMI KVM transmitter
• 1x HDMI KVM receiver
• 1x USB Cable
• 2x Power adapter
• 1x User manual
