HDMI KVM over Network / IP KVM Extender SET HDBitT v4.0 (Keyboard, Video, Mouse) | Unlimited Dist...

HDMI KVM over Network / IP KVM Extender SET HDBitT v4.0 (Keyboard, Video, Mouse) | Unlimited Distances Possible

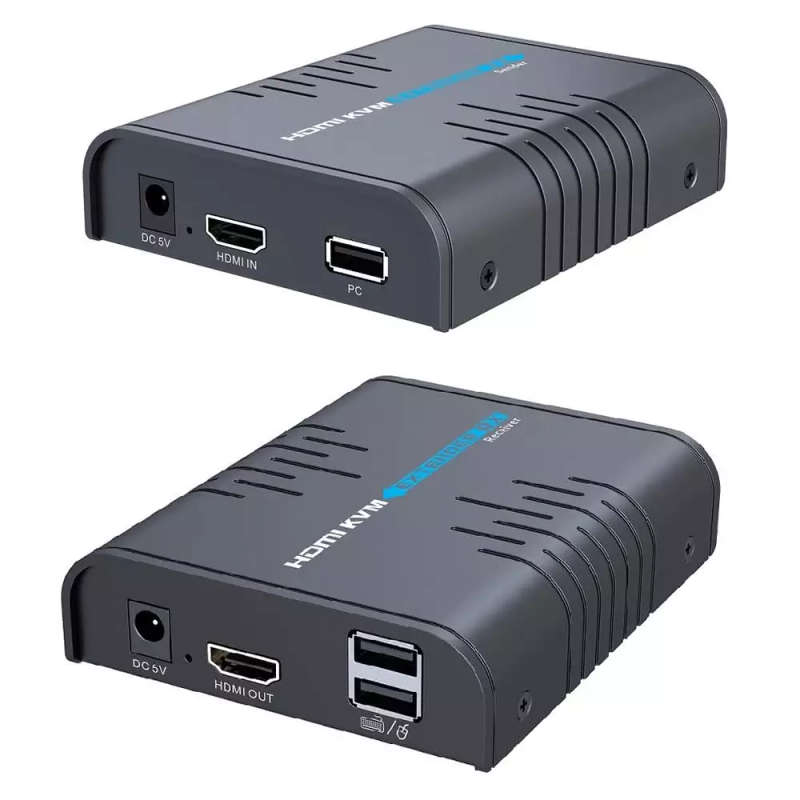

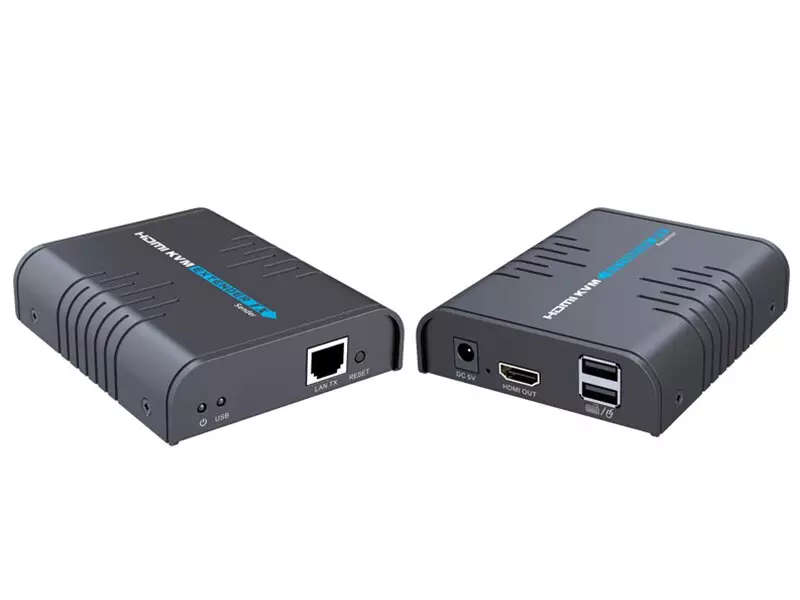

This HDMI KVM Over IP Extender is based on the TCP/IP standard used in ethernet networking. It transmits max 120 meters on a point-to-point installation (1 Transmitter to 1 Receiver) from your HDMI or DVI-D source to HD display with Keyboard/Mouse by single CAT5e/6 cable. It can also transmit you HDMI/Keyboard/Mouse source by one point-to-many mode over network switches or point-to-point over networks for unlimited distances. Over a ethernet, wireless or fiber network the set can transmit unlimited distances depending on the network speed required and a minimum of 100 Mbps.

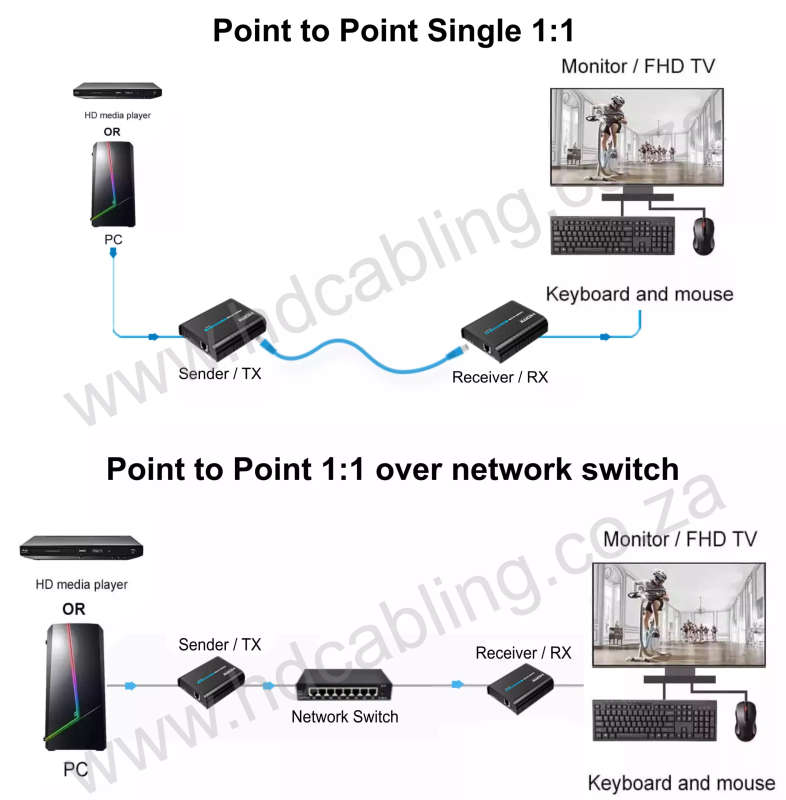

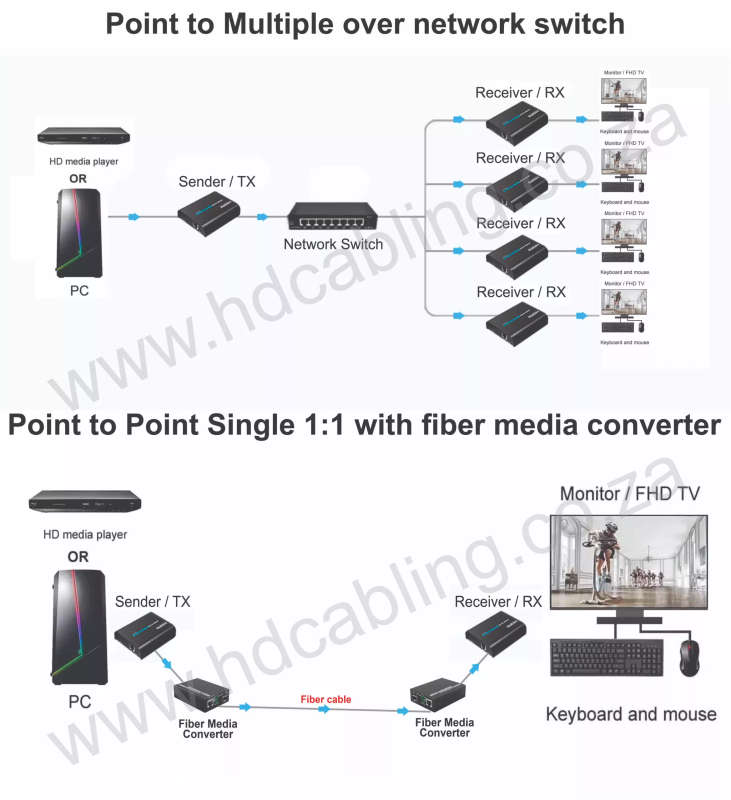

Sample Installation Diagram (KVM Extender pics on Gallery Images)

If you want to run these HDMI KVM IP extenders over Fiber please uplink the transmitter and receiver together with Fiber SFP's with the Media Converters below:

/gigabit-media-converter-rj45-ethernet-copper-10-100-1000base-tx-to-1000base-fx-sfp/

These HDMI KVM over IP / Network Extenders has been tested with the Network over Powerline adapters as at Tenda 200Mbit/s Network over Powerline and Tenda 1Gbit/s Network over Powerline adapters. Using this HDMI KVM Extender over IP product in this type of setup together with the Network over Powerline adapters will effectively create an HDMI over Powerline solution. It will not require network switches and CAT6 Networking cable to enable these extenders to function, it will use existing 220v electrical power cables as the transport medium between the KVM Transmitter and Receiver when used together with Network over Powerline products. This type of solution has been tested up to 70 meter over existing home / business power cables. Longer distances is possible but will be dependent on your home power cables quality and wiring at the DB Board. If a UPS is used in between transmitter and receiver this solution will not work as the signal can only pass through electrical DB Board and breakers and not via a UPS.

Features:

• Support point-to-point mode, one point-to-many mode over ethernet network switches and cascade connection mode.
• 802.3 Ethernet standard.
• The design of pure hardware, plug and play, no need for additional software.
• Support long distance control with a keyboard and mouse to a PC in a Secure or Remote Room

Specifications:

Package contents:

• 1x  Transmitter
• 1x  Receiver
• 2x  5V/2A Power Supply.
• 1x User's Manual

Cheaper CAT6 CCA Ethernet Network Cable as below can be used with this extender but only to about 40-60% of the max distance indicated on extender. For Full Distance installations and best transmission CAT6 Full Copper Cable is recommended as below or connect the set via network switches

/price-per-meter-cat6-unshielded-twisted-pair-utp-23awg-1-gigabit-s-cable-gray/

CAT6 Full Copper Ethernet Network Cable Recommended for max distances

/price-per-meter-cat6-stp-pure-copper-ethernet-cable-solid-core-with-braiding-up-to-1gb-s-gray/
