This device does not require external power and acquires power directly from HDMI 5volt port power provided on all players / sources and LCD's. The Transmitter / receiver plugs directly into the source device or display and does not need any additional HDMI cables.
Tested 100% with all common HDMI sources such as HDPVR, Apple TV Player, Mvix (HDMI Version), Sony Playstation 3, Microsoft Xbox 360, DVD players and Blu-ray Players on the SA market.
HDMI devices (any source / player, LCD, Plasma etc) have different results when inserting HDMI Repeater devices depending on the equipment you are using (a repeater device is any switch / splitter / extender etc). Please ensure to get confirmation from the manufacturer of your source / player / LCD that the specific player or LCD can communicate via a HDMI Repeater. Some source devices might not allow any HDMI device between itself and the LCD and will only function via a direct HDMI cable to the LCD. The opposite is also possible where the LCD needs a direct connection to the source / player and will not accept a regenerated signal from a HDMI Repeater device. Your display or source manufacturer can confirm if their product supports the functions required.
Benefits from using this HDMI Extender / Balun :
1. CAT-5e / CAT-6 cabling can fit into smaller areas than HDMI because of the head size of the cable.
2. Transmission distance can be up to 30 meters (1080P) and 50 meters (720p). When using normal HDMI cables opposed to using this extender, cables must be customized when the length is over 15 meters.
Features :

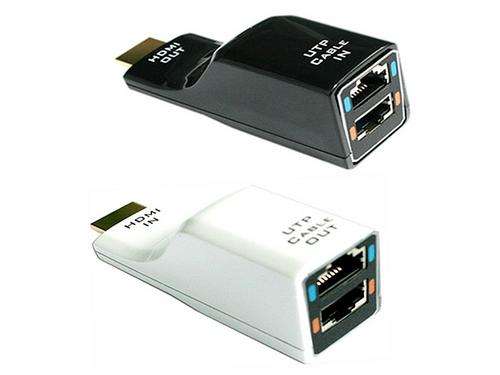

● One Sender & One Receiver module, no configuration needed.
● Use CAT-5e / CAT-6 cable to substitute HDMI cable to achieve long distance transmissions.
● Follow the standard of IEEE-568B when installing and terminating UTP / STP Cables to ensure minimum signal loss over longer distances.
● Transmission distance reaches up to 30 meters (1080P) and 50 meter 1080i / 720p.
● Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
● Compact size.
● Signaling rates up to 2.25Gbits in support of 1080P display.
● HDCP 1.2 compliant.
● If you have no video or video and no audio and you have installed a HDMI Extender over CAT5e / CAT6 / CAT7 please check the 2-pairs of cables between transmitter and receiver to ensure it is correctly terminated according to UTP/STP Standard 568B (Picture below)
This item is supplied without packaging / boxing directly from the factory to reduce costs to the public. You will not find another quality HDMI product such as this at a better price.
Specifications :
● Model mini-HDMICAT6-30m
Signal Inputs/Output
● Input Video Signal : 0.5 -1.0 volts p-p
● Input DDC Signal : 5 volts p-p (TTL)
● Maximum Single Link Range : 1920X1200, 1080P
● Output Video : HDMI 1.3
● Video format supported : DTV/HDTV, 1080P /1080i / 720P / 576P / 480P / 576i / 480i
Transmission distance
● Using STP CAT6 Cable : 30M for 1080p
● Using STP CAT6 Cable : 50M for 720p
Resolutions(HDTV)
● Interlaced(50&60Hz) : 480i,576i,1080i
● Progressive(50&60Hz) : 480p,576p,720p,1080p
Mechanical
● Power Consumption : 5Watts (max.)
● Dimensions : 46mm W x 83mm H x 23mm D ● Warranty : Limited Warranty 1 Year Parts and Labor
Environmental
● Operating Temperature : 0 to +70C;
● Operating Humidity : 10% to 85 % RH
● Storage Temperature :-10C to +80C
● Storage Humidity : 5% to 95 % RH (no condensation)
Power Requirement
● Units uses power from HDMI port on source and LCD 5v+. No external power needed.
Regulatory Approvals
● Converter Unit : FCC,CE,UL
● Power Supply : UL,CE,FCC
Accessories Adapter
● User Manual included
Connection and operating instructions :
1. Ensure all Home Entertainment Equipment has been powered off (Including source / player and display device)
2. Connect the HDMI input sources such as：Multichoice HDPVR, Playstation 3, Xbox 360, HD-DVD, STB etc. into the Sender unit via an HDMI to HDMI cable.
3. Connect two CAT-5e / CAT-6 / CAT-7 cables to both the outputs of the sender unit and the inputs of the receiver unit using IEEE-568B wiring standard for the CAT cabling.
4. Connect the HDMI output display device such as LCD, Plasma or projector to the receiver unit via a HDMI to HDMI Cable.
5. Power-on LCD & source device (and any other HDMI distribution equipment inbetween to ensure a path exists between source and display to negotiate a HDMI handshake).
