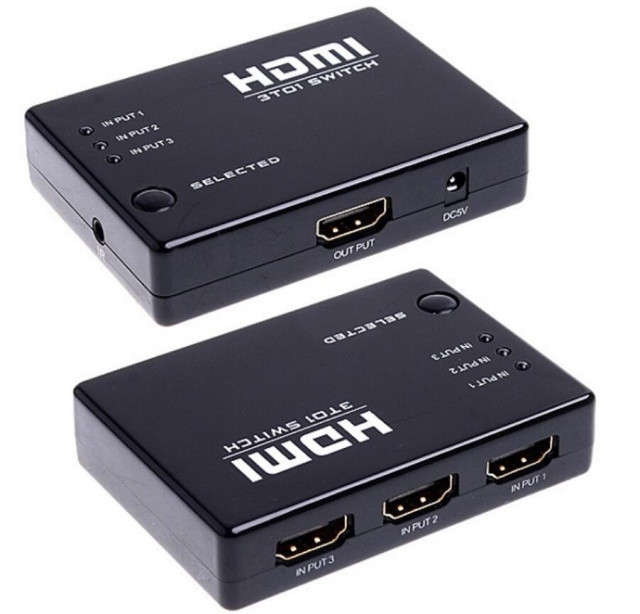

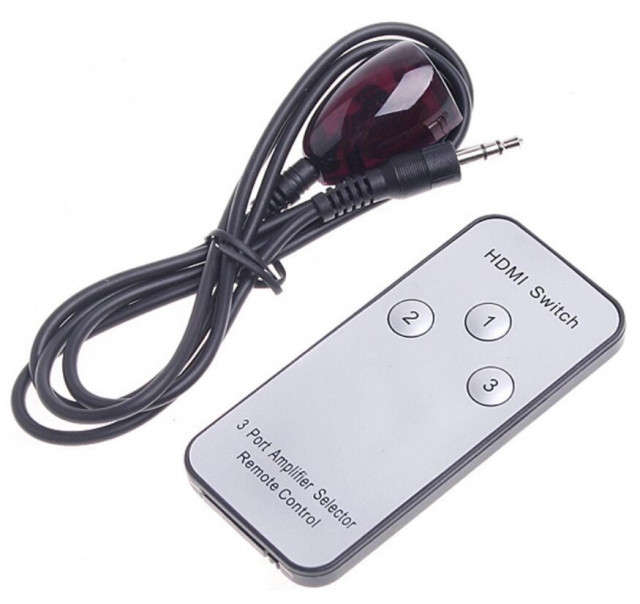

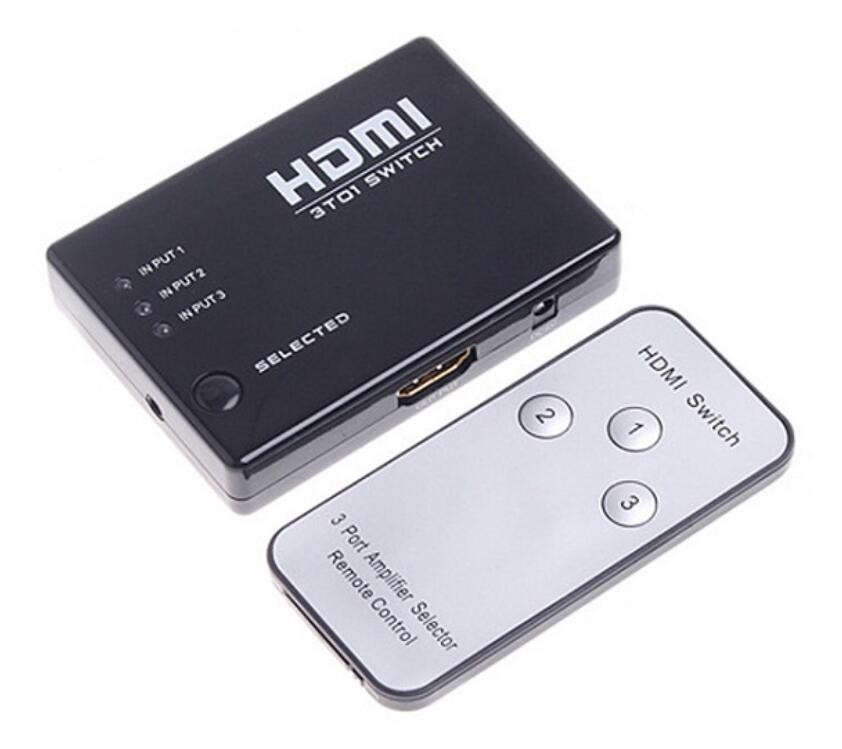

HDMI Switch 3 In 1 with Remote Control

Product Description:

1.HDCP compatible device

2.intelligent switching and manual switching dual option

3.support for high-definition video, high-definition screen

4. support video amplified signal bandwidth of up to: 2.5Gbps

5. support HDMI1.3. Fully supports 1080p, support for 12-bit pixels.

6.long-distance transmission to support both ends of the 25 meters, (length and specific wire-related)

Features:

1.when you open a device's power source or the source device into the switch, it will automatically select the source device.

2. the switch turned on, it will automatically turn on the power source device,selection,  priority selection as follows:  Input 1> Input 2> Input 3

3. when a source device is turned off or the source device from the switch pulled out, it will automatically select the next power source device is turned on, priority selection as follows: Input 1> Input 2> Input 3

Specifications:

1.the digital signal input / output HDMI support: HDMI 1.3

2. support video format VGA: 640x480,800x600,1024x768,1920x1200 DTV / HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P

3.the signal input / output Input video signal: 0.5-1.0 volts p-p input DDC signal:5 volts p-p (TTL) single channel connection signal maximum range: 1920X1200,1080P video output signal: HDMI1.3b + HDCP1.0 / 1.1

4.the operating frequency of 60Hz frequency Up to250MHz field frequency video, amplifier bandwidth of 2.5Gpbs / 250MHz HD support (HDTV) interlaced (50 & 60Hz)480i, 576i, 1080i progressive scan (50 & 60Hz) 480P, 576P, 720P, 1080P
