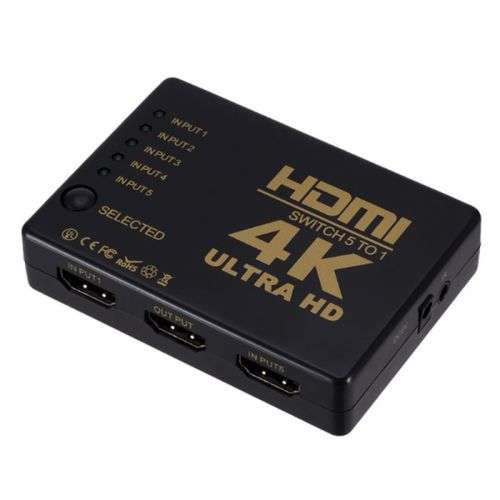

HDMI SWITCH, 4K Ultra HD Remote (5 IN 1 OUT HDMI) 5 Port HDMI Switcher

Compact 5 Way HDMI Switcher with Remote Control. Supports 3D and all resolutions up to 4K, Ultra HD (3840 x2160) also known as 2160p.

Be more future proof with this model which supports switching of all resolutions up to and including 4K-UltraHD. . Xbox, PS4, Android TV Boxes, PCs & Blu-Ray players etc. all have theability to output a 4K UHD signal.

Important Note: HDMI lengths

•        HDMI Inputs cable length: 5m max
•        HDMI Output cable length: 15m max

Depending on the HDMI version of your connect devices this unit may NOT require external power (power 5VDC from HDMI connections). Upon complete connection of all devices press the Selectionbutton if the unit does not power ON and work then a power cable from USBs ource is included.

Purpose

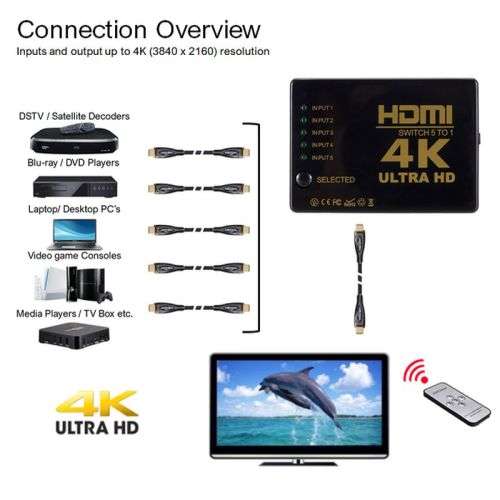

If you have more HDMI source devices than your TV, monitor or projector has input ports then this device will effectively add 4 more ports all capable of switching 4K.

You can connect any number of HDMI input devices from 1 to 5. If you have 3 then you will be left with 2 spare inputs for future use.

Remote Control

The unit has both manual and remote input selectors. The benefit of the remote control is that the switch itself and all the HDMI cables connected to it can be hidden from view. Onlythe IR RX eye need to have LOS (line of sight) with the remote control itself.

Note: The IR remote is powered by a lithium button battery (CR2025) which is NOT included.

Specifications

Input video signal: 0.5-1.0 voltspp

Input DDC signal : 5 volt pp (TTL)

Input 1-5 supported: 480p, 576p,720p, 1080i, 1080p, 2160p resolutions

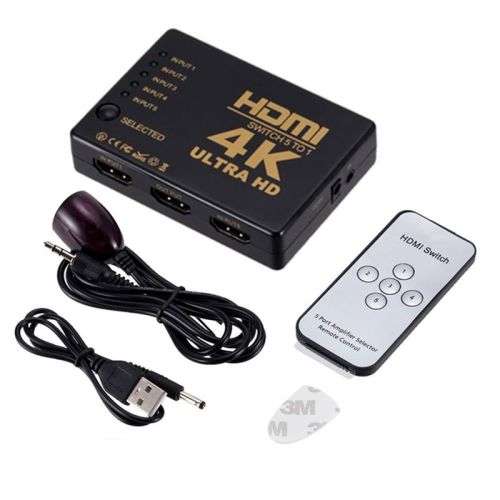

What's in the Box?

1x HDMI switch 5 port

1x Remote Control (CR2025 batteryNOT included)

1x IR RX eye and cable

1x USB Power Cable
