Description:

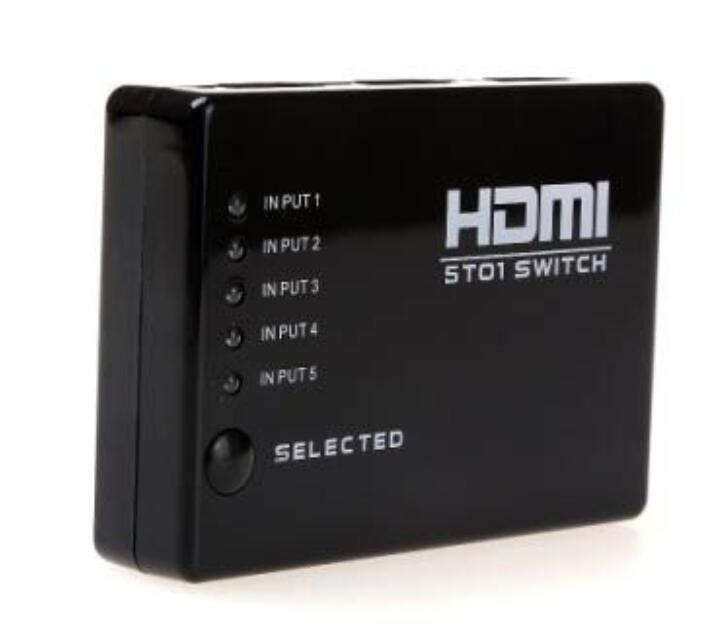

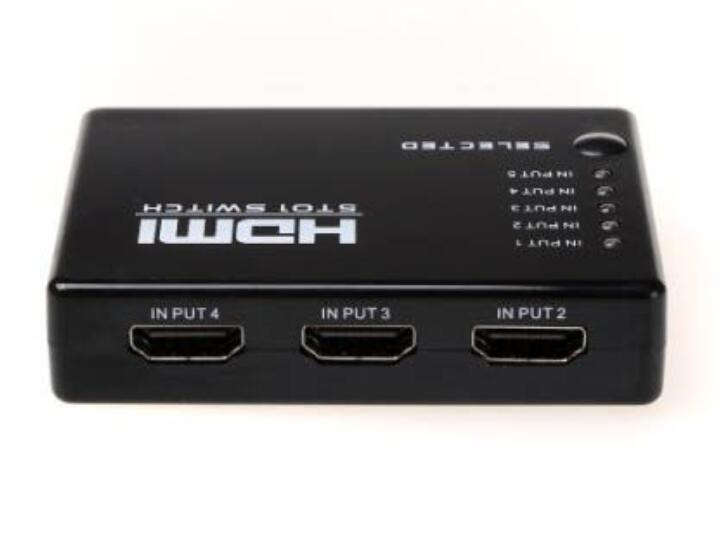

Mini five port switch is a high performance mini HDMI switcher .This switch has infrared remote control switch and intelligent switching functions. That is to say as long as the signal source equipment's has power , the converter will automatically switch . It can be sent from any source port to the display of the high-definition video (1080 p resolution) and digital audio transmission.All of the source port input device can match the HD video ports at the same time, with hd-dvd, SKY - STB, PS3, Xbox etc. Compatible Switches are capable of transmitting output port hd audio/video signal to the hd display.
Feature:
1.field: 50/60 hz;
2.support HDCP device;
3.input signal DDC: 5 volts p - p (TTL);
4. audio and video input ports: 5 xhdmi;
5.input video signal: 0.5-1.0 volts p - p;
6.products meet: the FCC CE UL certification;
7. support the highest video resolution up to 1080 p;
8.support without compression such as LPCM audio;
9.input HDMI line biggest support length: 15 meters;
10.video amplification bandwidth: 2.5 Gpbs / 250 MHZ;
11.output HDMI line biggest support length: 15 meters;
12. the output video signal: HDMI1.3 HDCP1.0 b + / 1.1;
13.comply with ROHS environmental protection instruction;
14.single way connection signal maximum range: 1920 x 1080 p;

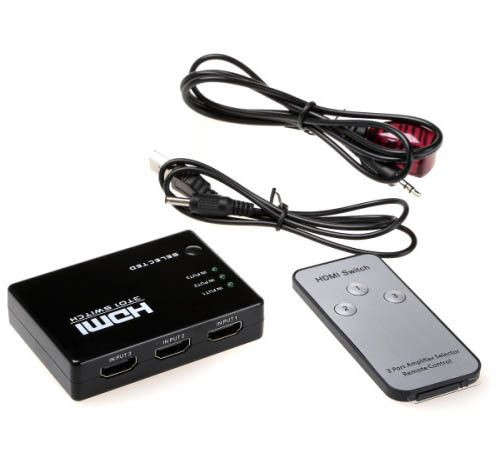

15.a variety of switch mode: intelligence, manual, remote control;
16.support HMDI 12 bit Deep Color (all channel 36 bit Deep Color);
17.support compressed Digital audio signal transmission, such as DTS Digital,Dolby * Digital (Dolby Digital);
18.support: the resolution of interlaced (50/60 hz) : 480 I, 576 I, 1080 I;Line by line (50/60 hz) : 480 p, 576 p, 720 p, 1080 p.
19.supports HDMI 250 MHZ bandwidth, the 2.5 Gbps per channel data bandwidth,(all channel 7.5 Gbps data bandwidth);
20.audio and video output port: 1 xhdmi;Appearance size: 80 x58x18mm;Product weight: 55 g;The external power supply: 5 v 2 a;* power loss,(maximum) : 5 w;
