HDMI to AV Composite RCA CVBS Converter

HDMI to AV RCA Composite CVBS Converter

The Mini HDMI to AV Converter allows you to connect any device having an HDMI output to a TV or monitor with composite video and stereo audio inputs. The input can be a games console, such as the Xbox360 or PS3, a satellite receiver, set top box or DVD player, any item having an HDMI output.

This Mini HDMI to AV converter uses the latest low power circuitry and can be powered through the HDMI cable using the power supply facility built into most standard HDMI output connections. (Some older HDMI equipment may not have this facility, so a USB socket is built into the converter allowing the use of an external power supply if necessary.)

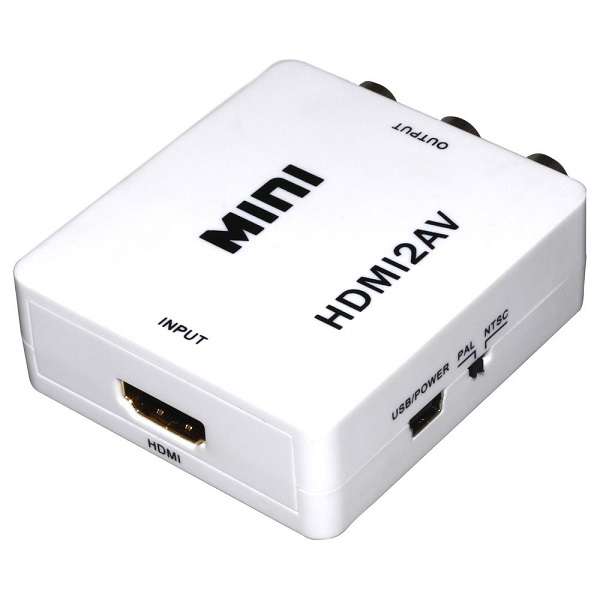

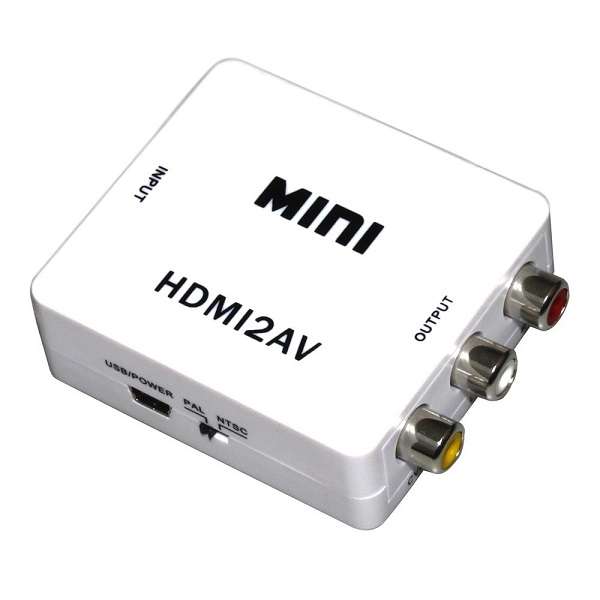

The input connection on this device is a standard full size HDMI socket. The output is a standard RCA or Phono connector for video and two RCA or phono sockets for audio. Either PAL or NTSC outputs can be selected by means of a switch on the side of the product.

**Composite RCA and HDMI cable NOT included

SPECIFICATION

• Input ports:1xHDMI.
• Output ports:1xRCA (Yellow,White,Red)
• CVBS output:PAL,NTSC_M,(NTSC_J)

HDMI Input Resolution:
640x480@60Hz
800x600@60Hz
1024x768@60Hz
1280x720@60Hz,
1280x1024@60Hz
1360x768@60Hz,
1600x1200@60Hz
1920x1080@60Hz
480i/60Hz
480p/60Hz
576i/60Hz
576p/60Hz
720p50/60Hz
1080i50/60Hz
1080p50/60Hz
