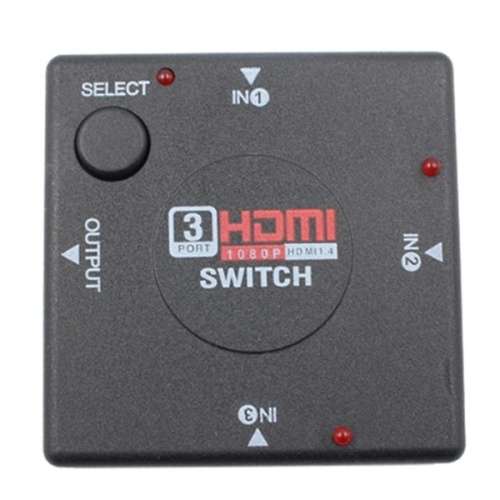

HDMI to HDMI Switch - 1-3 HDMI Switch - 1080p

  HDMI to HDMI Switch - 1-3 HDMI Switch - 1080p

NOTE:Be sure to connect the power supply first, then connect the HDMI cable separately.

Features:

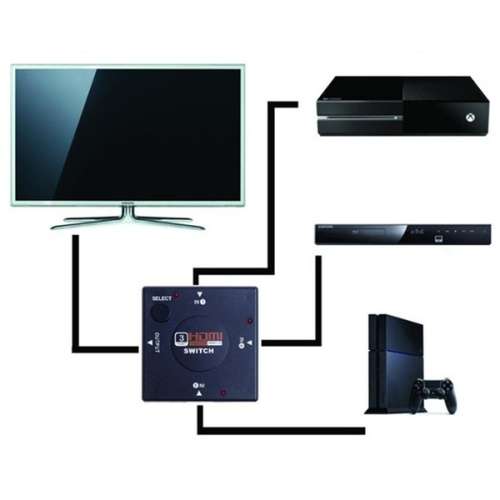

With this MINI HDMI-301 3-Port HDMI Switch, you can add three HDMI devices to your HDTV. Connect your Blu-ray player, game console, HD DVR and others to a single port on any HDMI display you choose! The MINI HDMI-301 supports full HD resolutions all the way up to 1080i/p and is compatible with HDMI v1.3b specifications with HDCP 1.1 compliance

• Slim design
• Supports 12-bit deep color, full 1080p
• Manual or remote switching
• Supports HDMI v1.4
• High bandwidth: Supports up to 2.5 Gbps
• Supports up to 25 meter HDMI cable lengths (1080p 25m + 25m, 1080i 25m + 20m)
• Maintains high resolutions for HDTVs and computers
• Output support: HDMI v1.4 + HDCP 1.0/1.1
• Video Amplifier Bandwidth: 1.65 Gbps / 165 MHz
• Frequency: Up to 165 MHz
• Supports interlaced and progressive scan sources
• Power, Input, Output status LEDs

Connectors:

• Input: Three (3) Type A 19-pin female HDMI port
• Output: One (1) Type A 19-pin female HDMI port

Supported Resolutions:

• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
• DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p

Power Specifications:

• AC Power Adapter Input: 100-240V ~ 50/60 Hz, 0.35A
• AC Power Adapter Output: DC 5V 1.5A

Regulatory Approvals:

• FCC
• CE
• C-Tick
• VCCI
• WEEE

What's in the Box:

3-Port (3 In, 1 Out) HDMI Switch only
