Description:
Working temperature: -55ᆪC~125ᆪC
Start shrinking temperature: 80ᆪC
Solder melting temperature: 138ᆪC
Complete melting temperature of solder: 160ᆪC
Shrink temperature>160ᆪC
Dielectric strength: 1kw
Protection level: IP67
Feature:

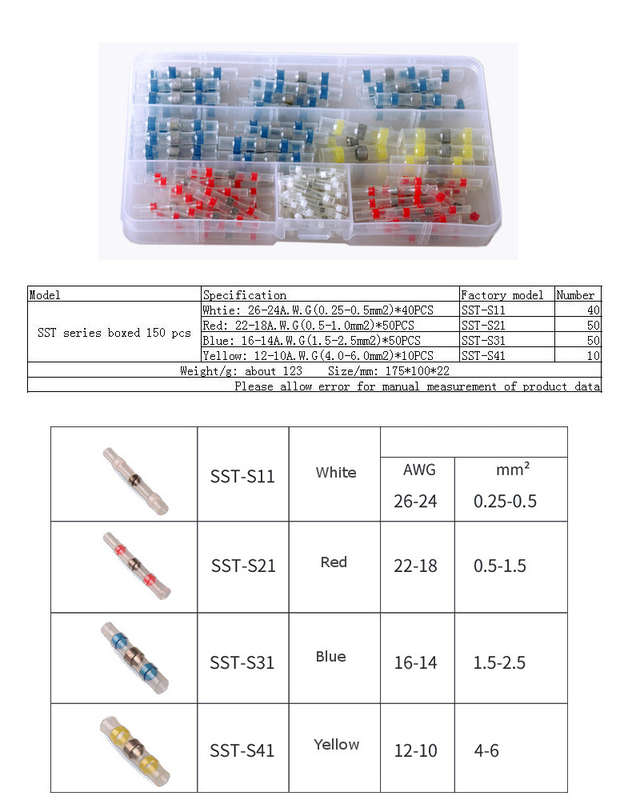

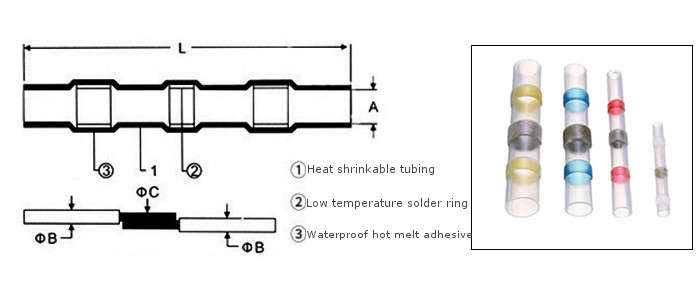

Product number | Product size mm | Wire size mm | |||
A(min.) | L(min.) | B(min.) | B&C(max.) | C(min.) | |
SST-S11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 |
SST-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 |
SST-S31 | 4.5 | 40 | 2.3 | 4.5 | 2.0 |
SST-S41 | 6.0 | 40 | 3.7 | 6.0 | 3.4 |

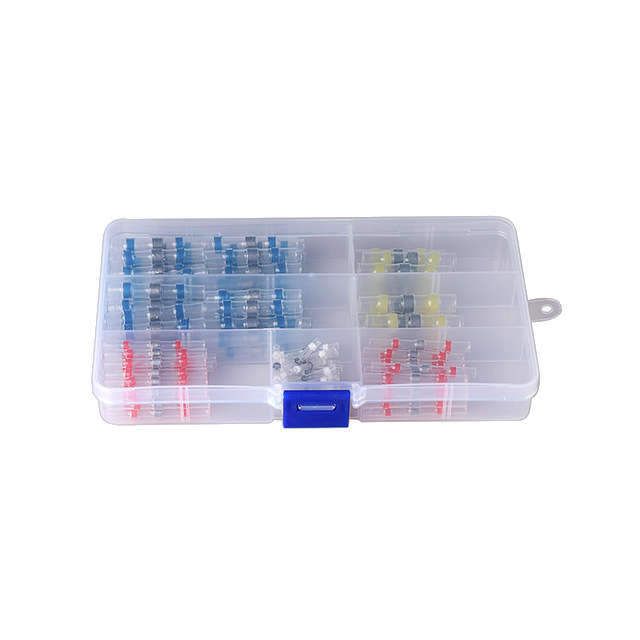

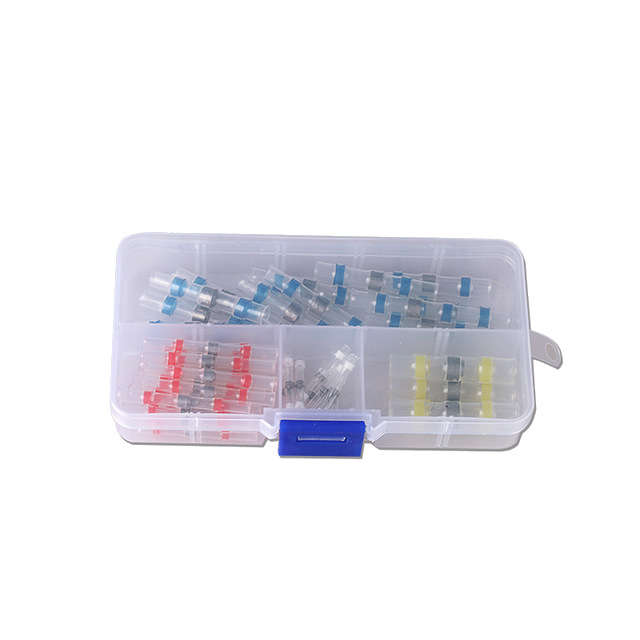

Package includes:
1 x150PCSRing in box
