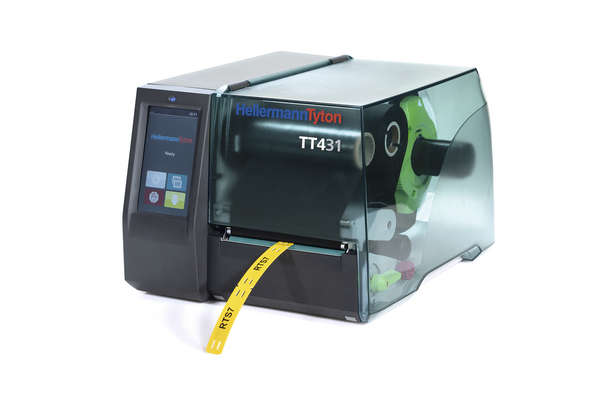

HellermannTyton Thermal Transfer Printer 300 dpi TT431
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Small to medium volume single sided printing
Print on HellermannTyton cable markers and labels
Uses standard ribbons
Barcodes: standard and 2D
Print speed up to 150 mm/s
Adjustable label sensor
Multiple language selection
Windows drivers: 32/64 bit for Windows Vista, Windows 7, 8 and 10
Application The TT431 thermal transfer printer is perfect for printing on HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. Thanks to its low weight and compact construction, the TT431 integrates seamlessly into any workstation. It is easy to use due to its intuitive colour LCD touch display and clear status messages which can be shown in multiple languages. The optional cutter and perforator make this printer ideal for a wide range of applications. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be. For optimal operation, we recommend our TagPrintPro software.
Colour Grey (GY)
Material Plastic (PL)
PART DESCRIPTION TT431-PL-GY
Pack Cont. 1pc.
Package Content packed in carton
Print resolution DPI 300dpi
Product Family TT431, Small to medium volume printing
Product Group Thermal transfer printer
Type TT431 ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Interfaces USB 2.0, Ethernet 10/100 Base T, RS232
Max. Print Width 105.70mm
Print Head Type 300 dpi, flat type
Print Speed up to 150 mm/s
Printer Memory 256MB RAM
ROHS compliant Yes
Specifications
Specifications 2014/35/EU, DIN EN 55024:2011-09, DIN EN 55024:2016-05, DIN EN 55032:2012-12, DIN EN 55032:2016-02, DIN EN 55032 rectification 1:2013-04, DIN EN 61000-6-2:2006-03, DIN EN 61000-6-2 rectification 1:2011-06, EN 55024:2011-09, EN 61000-6-2, FCC eCFR 47 FCC part 15 - subpart B, limit class A
Supported Barcodes Standard and 2D
Depth (D) 322mm
Height (H) 189mm
L x H x W 322 mm x 189 mm x 253
Label Width Max (imperial) 4.16"
Label Width Min (imperial) .39"
Print Material Height Max (metric) 4000mm
Print Material Height Min (metric) 5.00mm
Print Material Width Max (metric) 105.7mm
Print Material Width Min (metric) 10.00mm
Print Method thermal transfer print
Width (W) 253mm
