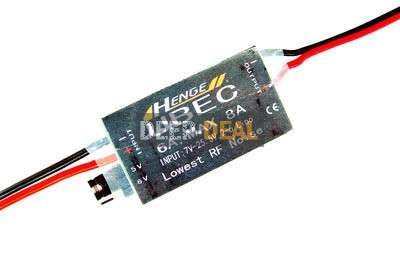

HENGE output :5v/6v 6A/8A ,2-6S LIPO Input Switch Mode UBEC BEC

HENGE output :5v/6v 6A/8A ,2-6S LIPO/ 6-16 cell Ni-Mh Input Switch Mode UBEC BEC

Product Specifications:

1 Input voltage: 7V-25.5V(2-6S LIPO/ 6-16 cell Ni-Mh)
2.Output voltage: 5V/6A or 6V/6A
3.Current: 6A peak 8A (less than 15 seconds)
4.Weight: 14g
5. Size: 39 x 21 x 6mm (LxWxH)

 Featuresï¼Âš

    Adopt the most advanced synchronous rectification switching power supply control chip design,

with over-current and thermal protection, the chip at maximum efficiency as high as 93%
    The small size, light weight;
    Output current, continuous output current capacity of 6A peak output current capability of 8A,

fully guaranteed equipment, demand for electricity;
    The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic

interference and ensure the receiver to work;
    Has a wide voltage range of 7V-25.5V can be within the normal work;
    Has a feature to prevent reverse input polarity, input power supply polarity mistake will not

damage equipment;
    Has a working state indicator, when the output to normal when the indicator light.
