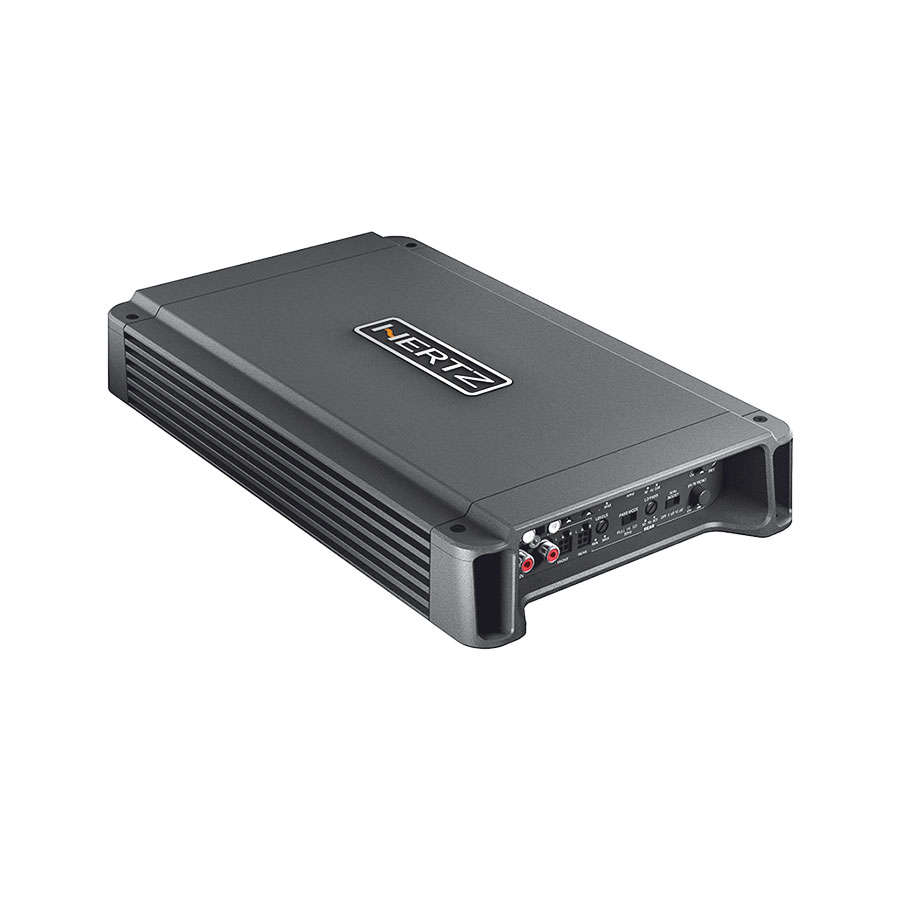

Hertz HCP 4DK 150rms 4channel Amplifier

Hertz HCP 4DK 150rms 4channel Amplifier

The new HCP 4DK features latest generation D-Class 2 stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Output Power (RMS) @ 14.4 VDC, THD 1%
4 Ch: 120 W x 4 (4 )
4 Ch: 220 W x 4 (2 )
3 Ch: 120 W x 2 (4 ) + 440 W x 1 (4 )
3 Ch: 220 W x 2 (4 ) + 440 W x 1 (4 )
2 Ch: 440 W x 2 (4 )
Output Power (RMS) @ 14.4 VDC, THD 10%:
4 Ch: 150 W x 4 (4 )
4 Ch: 250 W x 4 (2 )
3 Ch: 150 W x 2 (4 ) + 520 W x 1 (4 )
3 Ch: 250 W x 2 (2 ) + 520 W x 1 (4 )
2 Ch: 520 W x 2 (4 )
