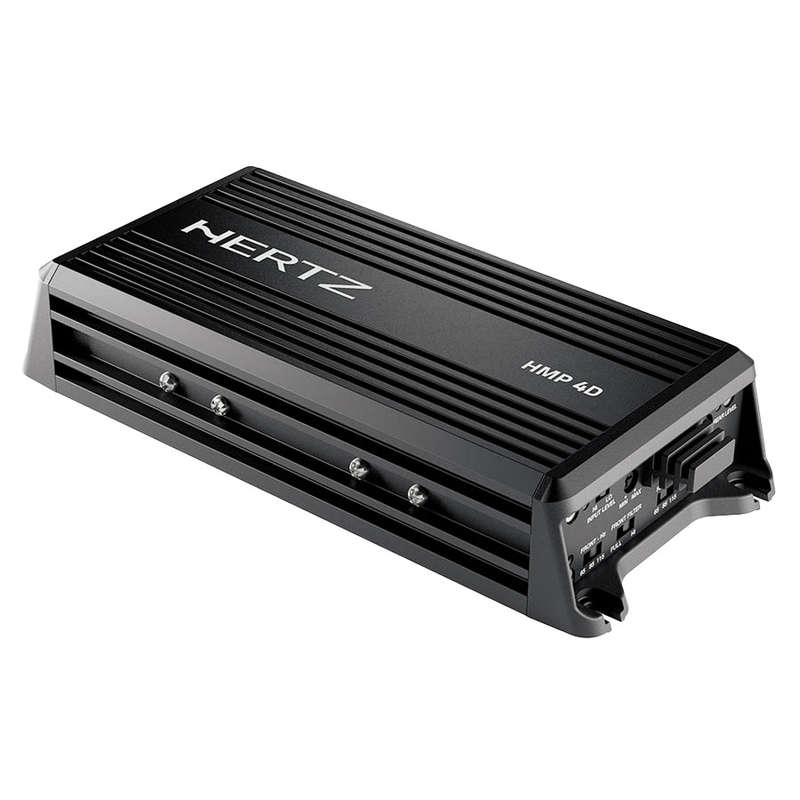

Hertz HMP 4D Marine Series 600w 4channel Amplifier

Hertz HMP 4D Marine Series 600w 4channel Amplifier

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.

Channels 4 - 2
POWER SUPPLY
Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 15 A
Idling current (power ON/OFF) 1.2 A / 0.04 mA
Consumption @ 2 , 14.4 VDC (Max Musical Power): 15 A
Remote In: 4 ÷ 15 VDC - 1 mA
ART: Automatic Remote Turn-On/Off
AMPLIFIER STAGE
Distorsion - THD (100 Hz @ 4) 0.2 %
Bandwidth: 10 ÷ 30K Hz
S/N Ratio (A weighted @ 1 V): 95 dB
Damping factor (100 Hz @ 4) 45
Pre-In sensitivity: LO: 0.2 ÷ 5 V
HI: 0.8 ÷ 20 V
Load impedance (MIN)
@ 4 Ch:
@ 2 Ch:
2
4
Max size (mm/in): 223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71
Weight (kg/lb): 1.35 / 2.97
Adjustable Crossovers yes
