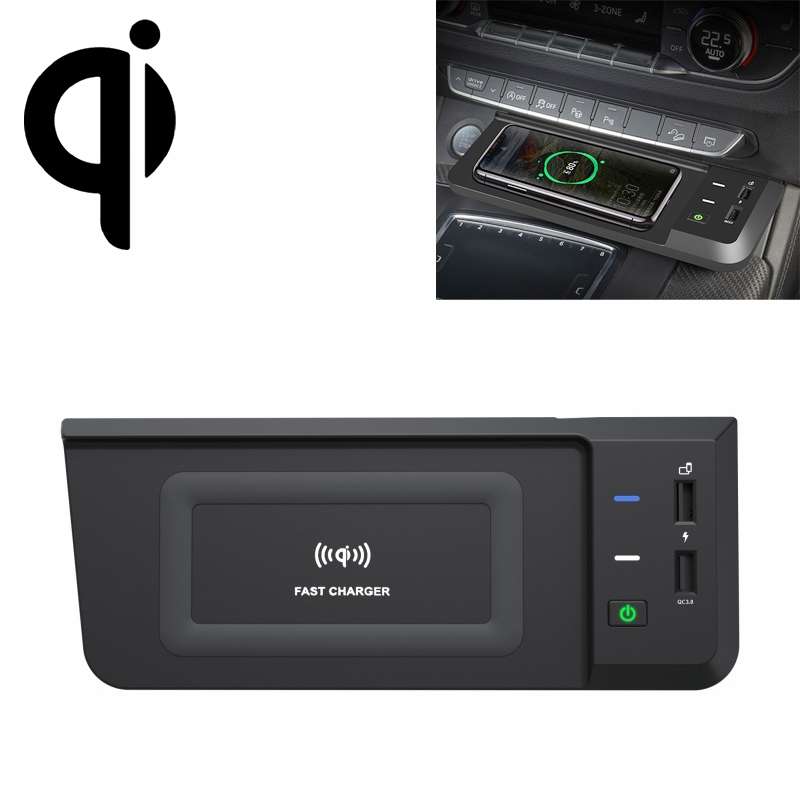

HFC-1051 Car Qi Standard Wireless Charger 15W / 10W Quick Charging for Audi Q5L 2018-2022, Left Driving

Features
1. Qi wireless charging + QC3.0 USB interface fast charging, support charging two devices at the same time.
2. The original car is opened, no wiring is required, and the cigarette lighter is plugged directly.

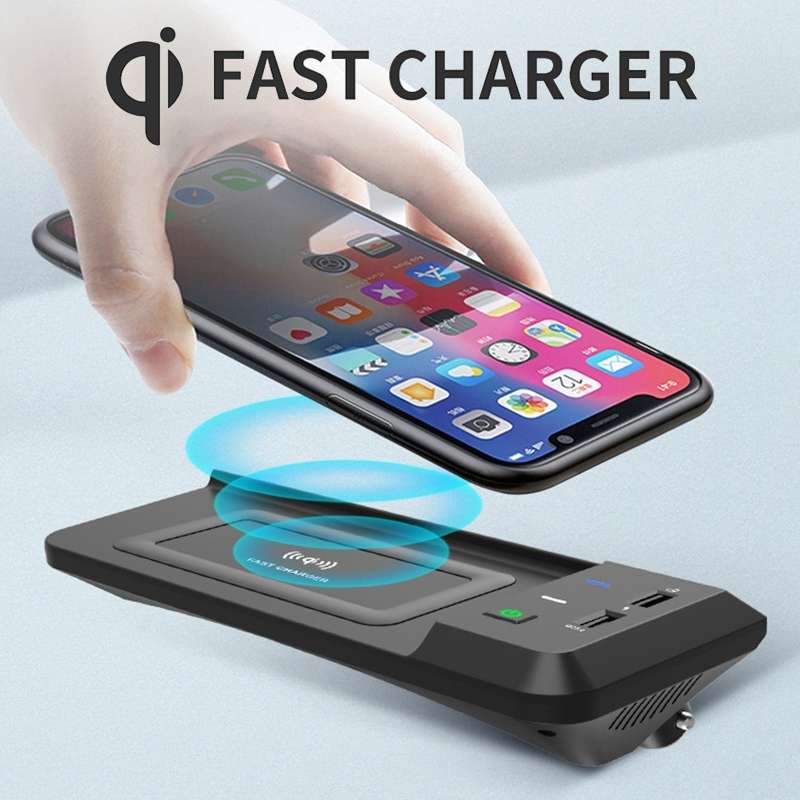

3. Support Qi wireless charging protocol, no plugging, no winding, just put the mobile phone to charge.
4. Ai smart chip, integrated PD3.0 / PPS / QC3.0 / AFC fast charging protocol, D9620 master control, dual 9015 drivers.
5. T-shaped double coil setting, taking into account the size of mobile phones, without interruption.

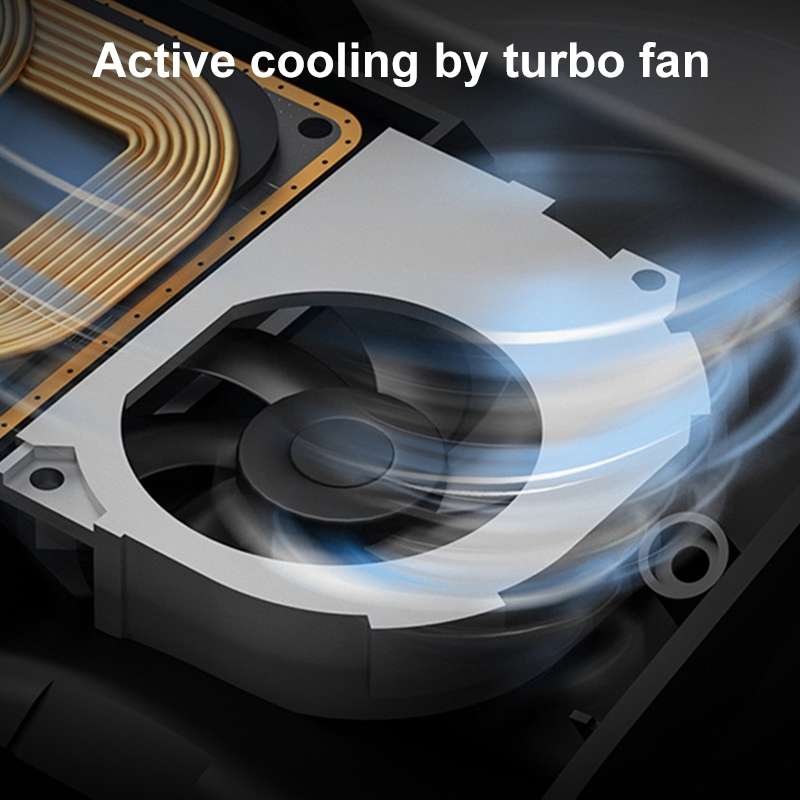

6. Built-in silent turbo fan, air-cooled heat dissipation temperature control design, mobile phone charging does not heat.
7. Intelligent FOD safety protection, multiple protections such as overcurrent, overvoltage, temperature control, short circuit, etc., to prevent overcharging and not damage the mobile phone battery.
8. The induction range is large, and the power required by the mobile phone is automatically recognized.
9. With USB interface, it can support 15W/18 charging, and you can choose the charging method flexibly.

Specification
1. Input voltage: 9-16V / 5-10A
2. Input interface: car charger DC power supply
3. Wired charging output power: 15W / 18W (USB charging)
4. Wireless charging output power: 5W / 7.5W / 10W
5. Working frequency: 105Hz-210Hz (wireless terminal)
6. Induction distance: 2-8mm (wireless end)
7. Conversion efficiency: 85% max (wireless terminal)

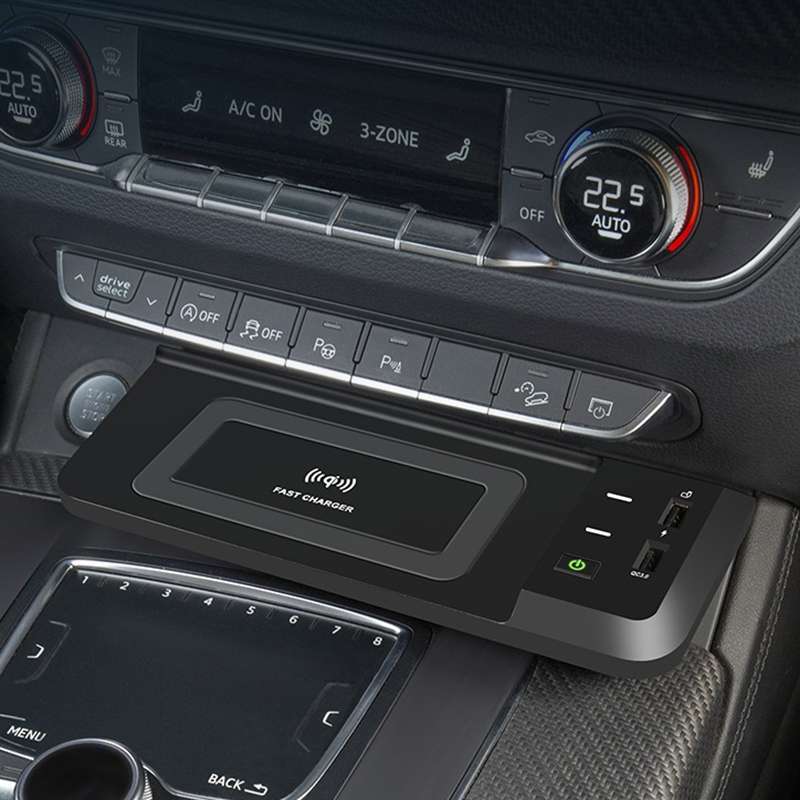

8. For Audi Q5L 2018-2022 / Q5L Sportback 2021-2022 / SQ5 2018-2021


CRP5176
