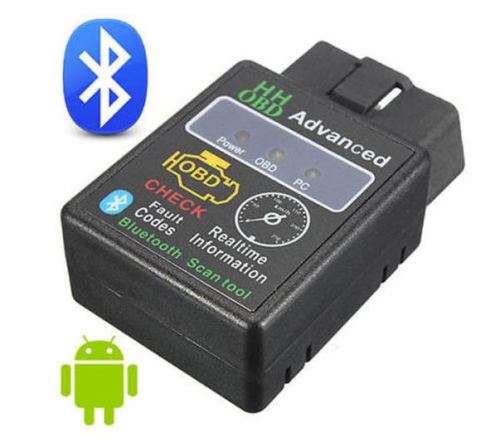

HH OBD Advanced ELM327 OBDII V1.5 Bluetooth Diagnostic Tool
FREE DOOR TO DOOR COURIER- ALL MAIN CENTRES and immediate TOWNS AND THEIR SUBURBS ONLY
R50 FOR COURIER ALL AREA'S OF S.A. (NOT MAIN AREAS)
FREE COUNTER TO COUNTER POST OFFICE- ALL AREA'S
R50 FOR POSTNET TO POSTNET. YOU COLLECT.
The ELM327 Bluetooth OBD2 interface is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your car's on-board computer from your any Bluetooth enabled device with the compatible application or software.
The Bluetooth connectivity makes it compatible with your Andriod, Widows PC or Mac.
Key Highlights:
1) Display current / real-time sensor data, including:
2) Vehicle Speed
3) RPM
4) Fuel Consumption
5) Engine Coolant Temp
6) Fuel Pressure
7) Calculated Engine Load
8) Throttle Position
9) Intake Manifold Pressure
10) Air Intake Temp
11) Timing Advance
12) Mass Air Flow Rate
13) Fuel Level
14) Barometric Pressure
15) EVAP System Vapour Pressure
16) Fuel Trim
17) Engine RPM,
18) Fuel System Status
19) Vehicle Speed
20) Short Term Fuel Trim
21) Long Term Fuel Trim
22) Timing Advance
23) Absolute Throttle Position
24) Oxygen sensor voltages/associated short term fuel trims
* Note: Not all vehicles support all of the above parameters.
How many parameters you can get is dependent on the vehicle manufacturer’s implementation:
1) CLEAR trouble engine codes, check engine lights and turn off the MIL ("Check Engine" light)
2) Hassle-free setup: Setup in seconds
3) View current / real-time vehicle data while driving
4) Find and fix problems before they happen
5) Support for low power sleep mode and high-speed communication
6) Compatible Phones: Android Smartphone
7) Works with Android Torque (Recommended - See pictures below)
Compatible Software:
1) Torque (Can be downloaded from Android Market)
2) Scantool_net113win (Full Version)
3) Easy OBDII V2.2 (Full Version)
4) OBD2Spy (Demo Version)
5) ScanMaster-ELM (Demo Version)
6) WOBDCRAZY (Demo Version)
7) Processor: ELM327 v1.5
8) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)
9) Supported Software Compatible: Windows, OSX, Palm, Pocket-PC, Linux, Android, DOS, Windows Smartphone
10) Works with OBD2 Complaint Vehicles
11) WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- SO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
