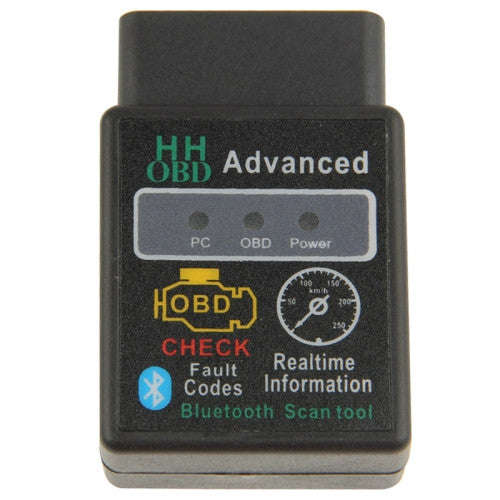

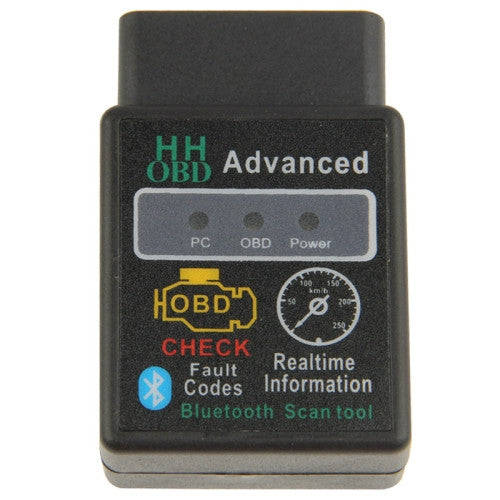

HH OBD ELM327 OBDII V1.5 Bluetooth Advanced Scan Tool Wireless Fuel Speed Diagnostic Tool

1) The ELM327 Bluetooth OBD2 interface is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your cars on-board computer from your any Bluetooth enabled device with the compatible application or software.

2) The Bluetooth connectivity makes it compatible with your Android Windows PC or Mac.

Key Highlights:

1) Display current / real-time sensor data including:

2) Vehicle Speed

3) RPM

4) Fuel Consumption

5) Engine Coolant Temp

6) Fuel Pressure

7) Calculated Engine Load

8) Throttle Position

9) Intake Manifold Pressure

10) Air Intake Temp

11) Timing Advance

12) Mass Air Flow Rate

13) Fuel Level

14) Barometric Pressure

15) EVAP System Vapor Pressure

16) Fuel Trim

17) Engine RPM

18) Fuel System Status

19) Vehicle Speed

20) Short Term Fuel Trim

21) Long Term Fuel Trim

22) Timing Advance

23) Absolute Throttle Position

24) Oxygen sensor voltages/associated short term fuel trims

25) Work current: 45mA power: 5.4W

* Note: Your vehicle may not support all above parameters.

How many parameters you can get is depended on the vehicle manufacturers implementation:

1) CLEAR trouble engine codes check engine lights and turn off the MIL ( inch Check Engine inch light)

2) Hassle-free setup: Setup in seconds

3) View current / real-time vehicle data while driving

4) Find and fix problems before they happen

5)Support for low power sleep mode and high-speed communication

6) Compatible Phones: Android Smartphone

7) Works with Android Torque (Recommended - See pictures below)

Compatible Software:

1) Torque (Can be downloaded from Android Market)

2) Scantool_net113win (Full Version)

3) EasyOBDII V2.2 (Full Version)

4) OBD2Spy (Demo Version)

5) ScanMaster-ELM (Demo Version)

6) WOBDCRAZY (Demo Version)

7) Processor: ELM327 v1.5

8) Read diagnostic trouble codes both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database)

9) Supported Software Compatible: Windows OSX Palm Pocket-PC Linux Android DOS Windows Smartphone

10) Works with OBD2 Complaint Vehicles

11) WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:

- SAE J1850 PWM (41.6 kbaud)

- SAE J1850 VPW (10.4 kbaud)

- SO 9141-2 (5 baud init 10.4 kbaud)

- ISO 14230-4 KWP (5 baud init 10.4 kbaud)

- ISO 14230-4 KWP (fast init 10.4 kbaud)

- ISO 15765-4 CAN (11 bit ID 500 kbaud)

- ISO 15765-4 CAN (29 bit ID 500 kbaud)

- ISO 15765-4 CAN (11 bit ID 250 kbaud)

- ISO 15765-4 CAN (29 bit ID 250 kbaud)
