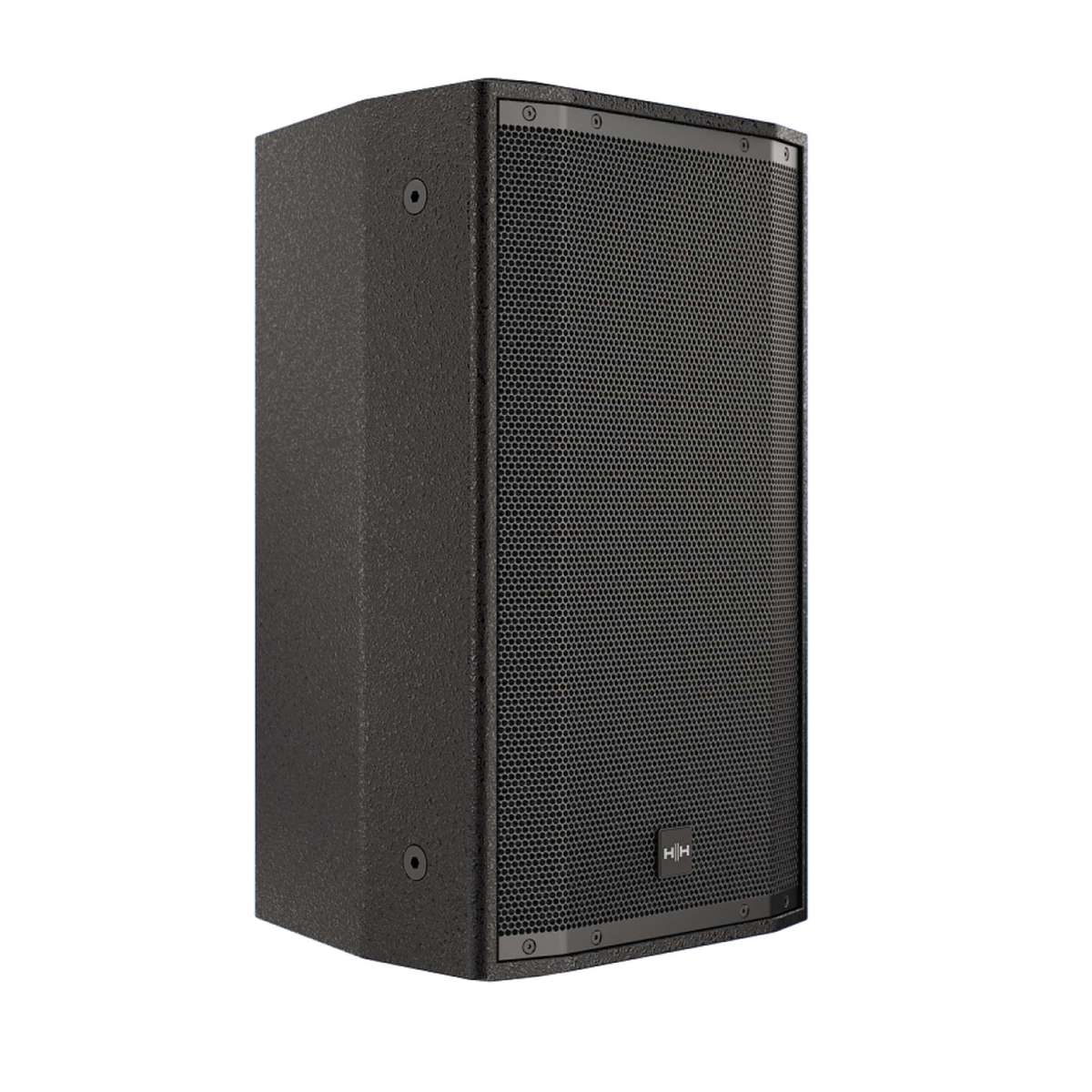

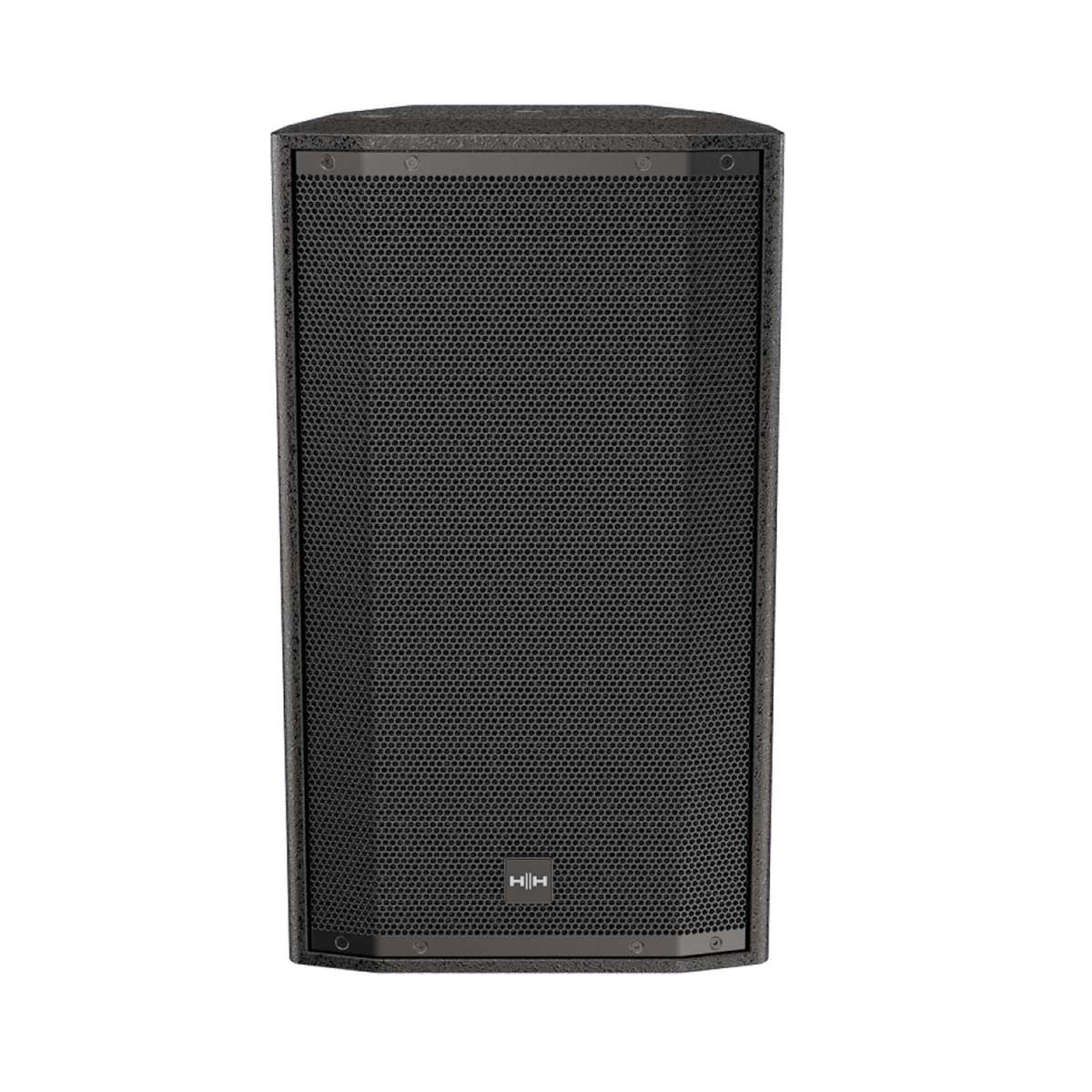

HHAUDIO TN-W8PRO-BK Loudspeaker

The HH TNi-W8PRO loudspeaker is a high power, compact, 2-way, full-range loudspeaker system comprised of the HH 8-inch (2-inch voice coil) high power HH low frequency driver and 1-inch Celestion CDX1-1070 high-frequency compression driver. The HH/Celestion designed waveguide is rotatable so the loudspeaker can be used in either vertical or horizontal orientation. Flexible input connections via either M4 barrier strip or Euroblock provide versatile connecting options. Mounting options include: 7 x M10 Penn-Elcom fly points, 4 x M8 mounting points for optional TNi-BRK30 mounting bracket. All enclosed in a robust wooden enclosure, powdercoated steel grille with acoustic foam backing in black or white finish.

Specification

• System Type: 8-inch 2 way Passive Speaker, Bass Reflex loudspeaker
• LF Driver: 8-inch HH Designed High Performance Driver, 2-inch Voice Coil
• HF Driver: 1-inch Celestion CDX1-1070
• Low Nominal System Impedance: 8 ohm
• Power: 200W AES, 400W Continuous, 800W Peak
• Recommended Amplifer: 400-800W @ 8 Ohms
• Sensitivity (1W/1M): 96 dB
• Max SPL: 119 dB, 125 dB (Peak)
• Frequency Response (-10): 52 - 20kHz
• Frequency Response (-3): 63 - 18kHz

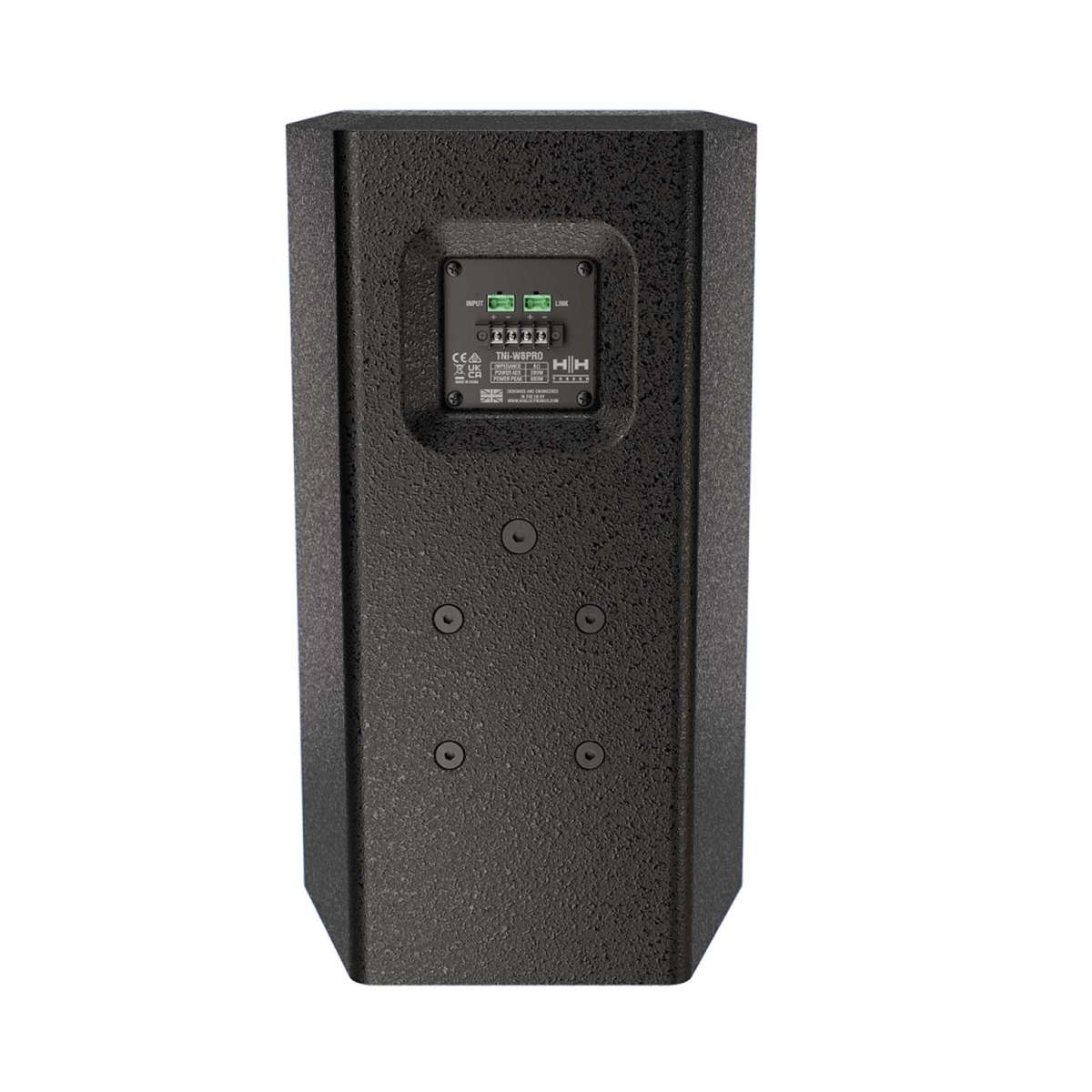

• Input Link Connector: Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
• Horiz. Dispersion Angle 1000Hz: 90°
• Vertical Dispersion Angle 1000Hz: 60°
• Crossover Frequency: 2.2KHz
• Cabinet: Robust all wood construction (15mm plywood)
• Finish: Hard wearing spatter finish (White or Black option)
• Grille: Powdercoated steel with acoustic foam backing

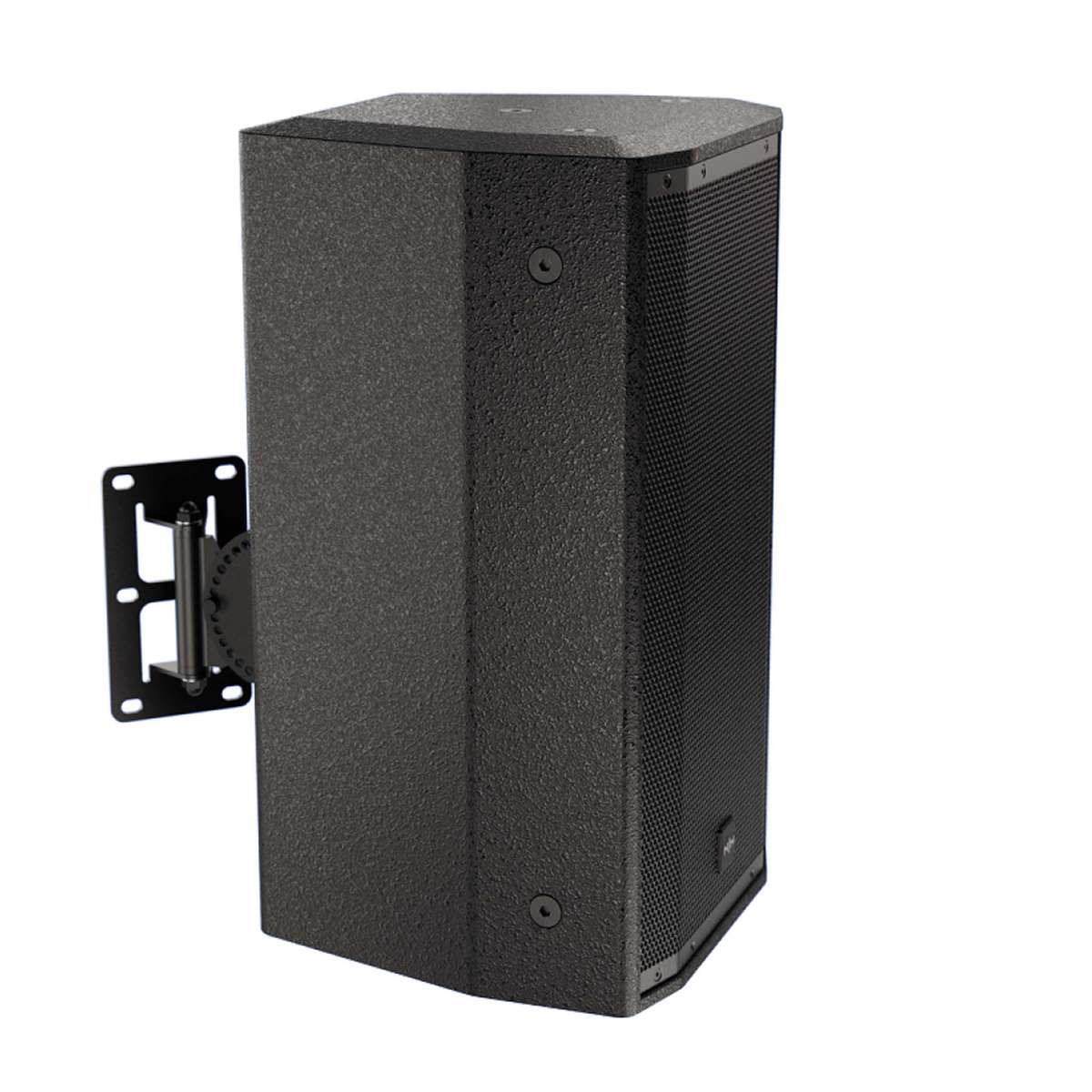

• Mounting Bracket :4x M8 mounting points for optional HH-BRK30
• Mounting Points: 7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)
• Unit Dimensions (Hwd): 474 x 270 x 257mm, 18.7" x 10.6" x 10.1"
• Unit Weight :10Kg, 22 lbs
• Carton Dimensions (Hwd): 570 x 370 x 350mm, 22.4" x 14.6" x 13.8" , 0.074 M3
• Packed Weight: 12Kg, 26.5 lbs
