Hi-Link AC to DC Power Electronics Module 5V 3W | Electronics Component

New 144 available
R28.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
C08-HL5V
Bob Shop ID
647557101

Description

These little power supplies are super handy for your new design. It's mains power (220VAC from your electrical plug) in and you have a 5V DC output (0.6A Max). They're also super compact. Take a look we also have a 12V version of the module.

Specifications

Model: HLK-PM01

Item NameTechnical Criteria  Unit
Operation Temperature-20+60?
Store Temperature-40+80?
Relative humidity595%
Cooling wayCooling by radiation
Atmospheric pressure80106Kpa
Sea level elevation?2000m
VibrationVibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes



1.Input characteristics (test at room temperature 20 ?).

Item NameTechnical CriteriaUnit
Rated input voltage100-240VAc
Input voltage range90-264VAc
Maximum input current?0.2A
Input current surge?                  ?10A
maximum input voltage?270VAc
Enter slow start?50mS
Input Low Voltage EfficiencyVin=110VAc?Output full-load?69%
Input High Voltage EfficiencyVin=220VAc?output full-load?70%
Long-term reliabilityMTBF?100?000h
Load rated output voltage+5±0.1

VDc

Full rated output voltage+5±0.2

VDc

Short-term maximum output current?1000mA
The maximum output current for a long time?600mA
Voltage Regulation±0.2  %
Load Regulation                      ±0.5%
Output ripple and noise
(mVp-p)
?50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested.
mV
Switch overshoot amplitude(Rated input voltage and output load plus 10%)?5%VO
Output over-current protection150-200% of the output maximum loadA
Output short circuit protectionDirect short circuit at the normal output, automatically resume normal operation after a short circuit removal

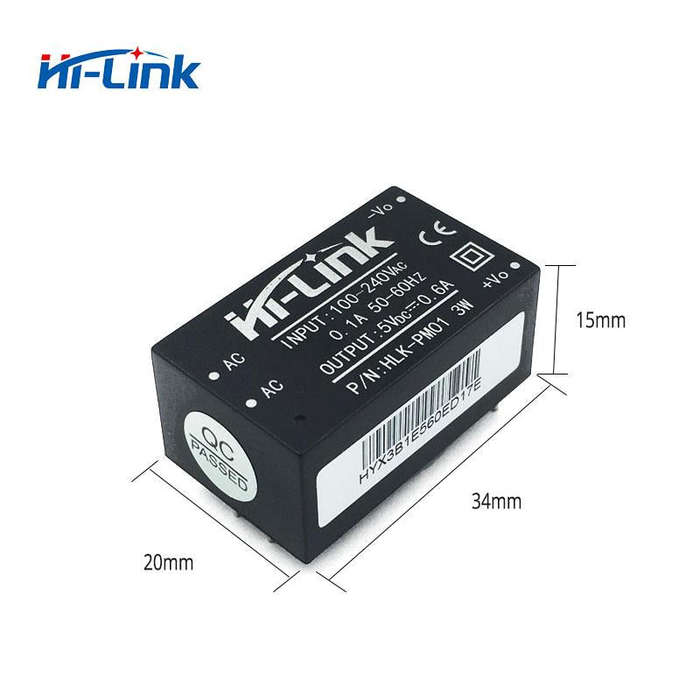

Weight and Dimensions?

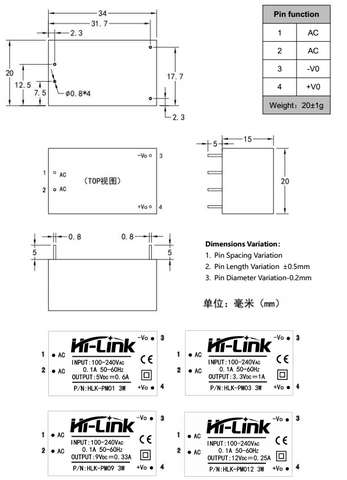

Hi-Link AC to DC PSU Dimensions
