Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W
Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W Hi-Link AC to DC Power Module 12V 3W

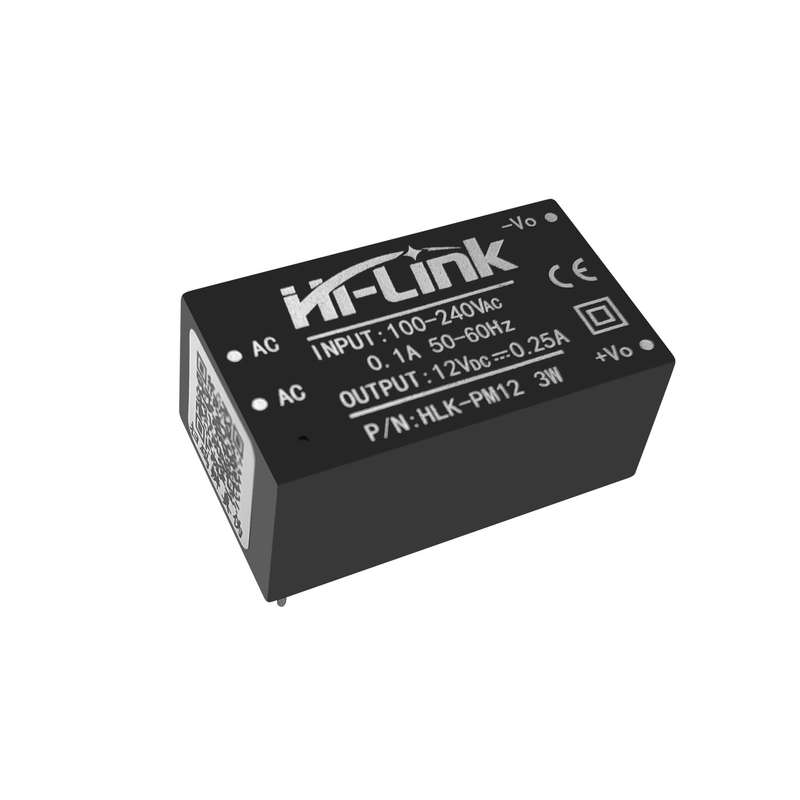

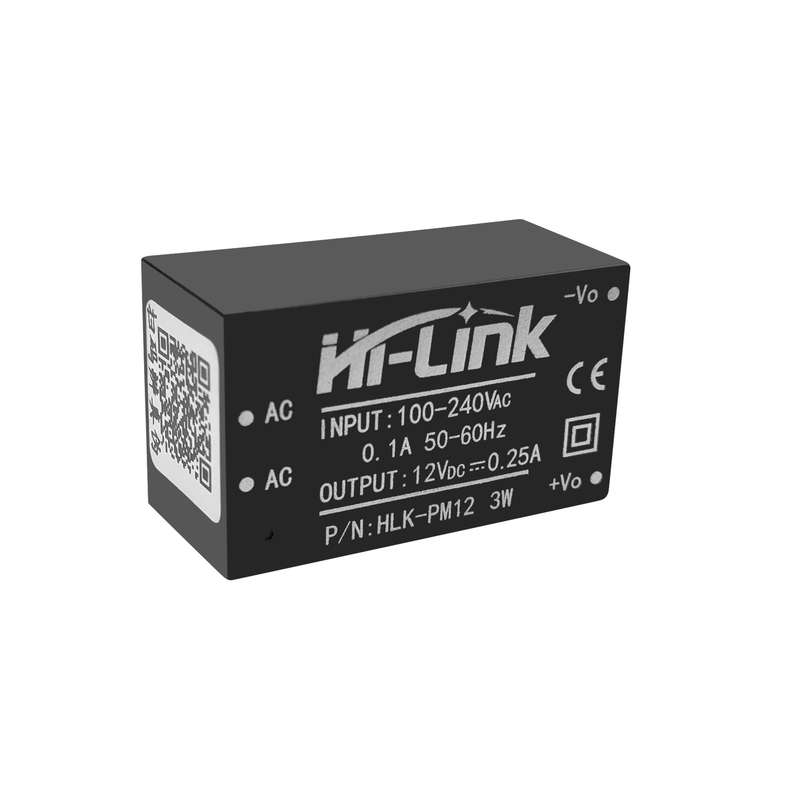

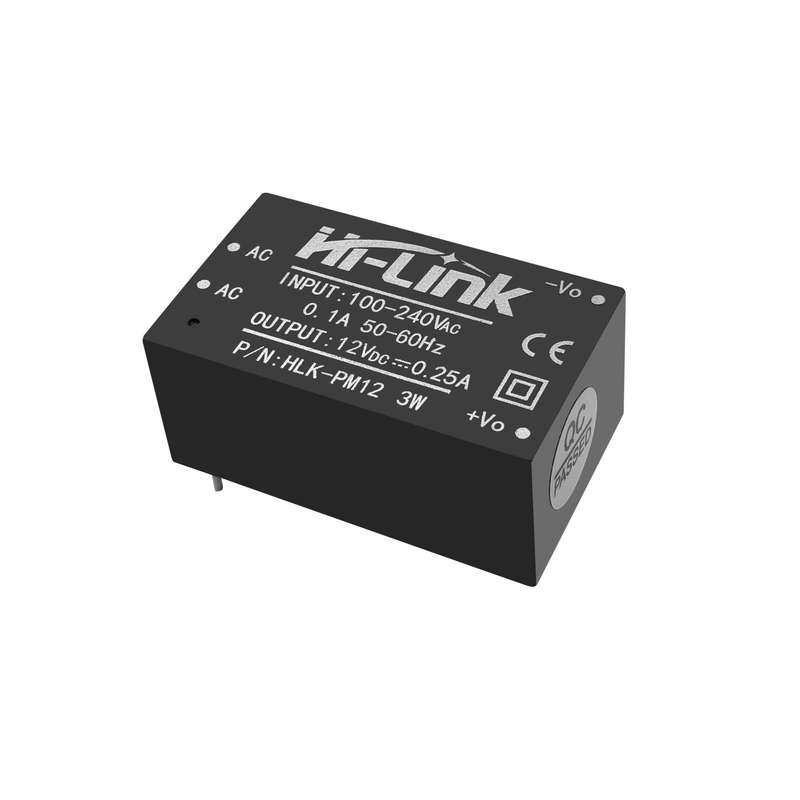

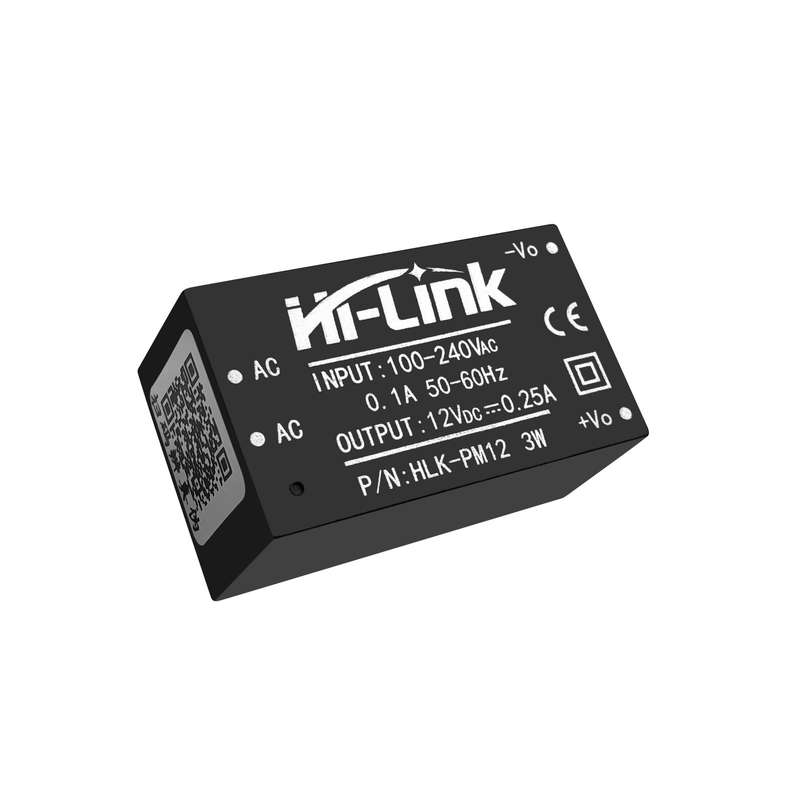

Hi-Link AC to DC Power Module 12V 3W

New 99 available
R110.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
JvZ Digital Sourcing1455
96.30 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
C08-HL12V
Bob Shop ID
647556868

Description

These little power supplies are super handy for your new design. It's mains power (220VAC from your electrical plug) in and you have a 12V DC output (0.25A Max). They're also super compact. Take a look we also have a 5V version

Specifications

Model: HLK-PM12

Item NameTechnical Criteria  Unit
Operation Temperature-20+60
Store Temperature-40+80
Relative humidity595%
Cooling wayCooling by radiation
Atmospheric pressure80106Kpa
Sea level elevation2000m
VibrationVibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes



1.Input characteristics (test at room temperature 20 ).

Item NameTechnical CriteriaUnit
Rated input voltage100-240VAc
Input voltage range90-264VAc
Maximum input current0.2A
Input current surge；                  10A
maximum input voltage270VAc
Enter slow start50mS
Input Low Voltage EfficiencyVin=110VAc，Output full-load69%
Input High Voltage EfficiencyVin=220VAc，output full-load70%
Long-term reliabilityMTBF100，000h
Load rated output voltage+12±0.2

VDc

Full rated output voltage+12±0.3

VDc

Short-term maximum output current1000mA
The maximum output current for a long time600mA
Voltage Regulation±0.3  %
Load Regulation                      ±0.5%
Output ripple and noise
(mVp-p)		50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested.		mV
Switch overshoot amplitude(Rated input voltage and output load plus 10%)5%VO
Output over-current protection150-200% of the output maximum loadA
Output short circuit protectionDirect short circuit at the normal output, automatically resume normal operation after a short circuit removal

Weight and Dimensions：
Hi-Link AC to DC PSU Dimensions
